6.4 Base Assembly

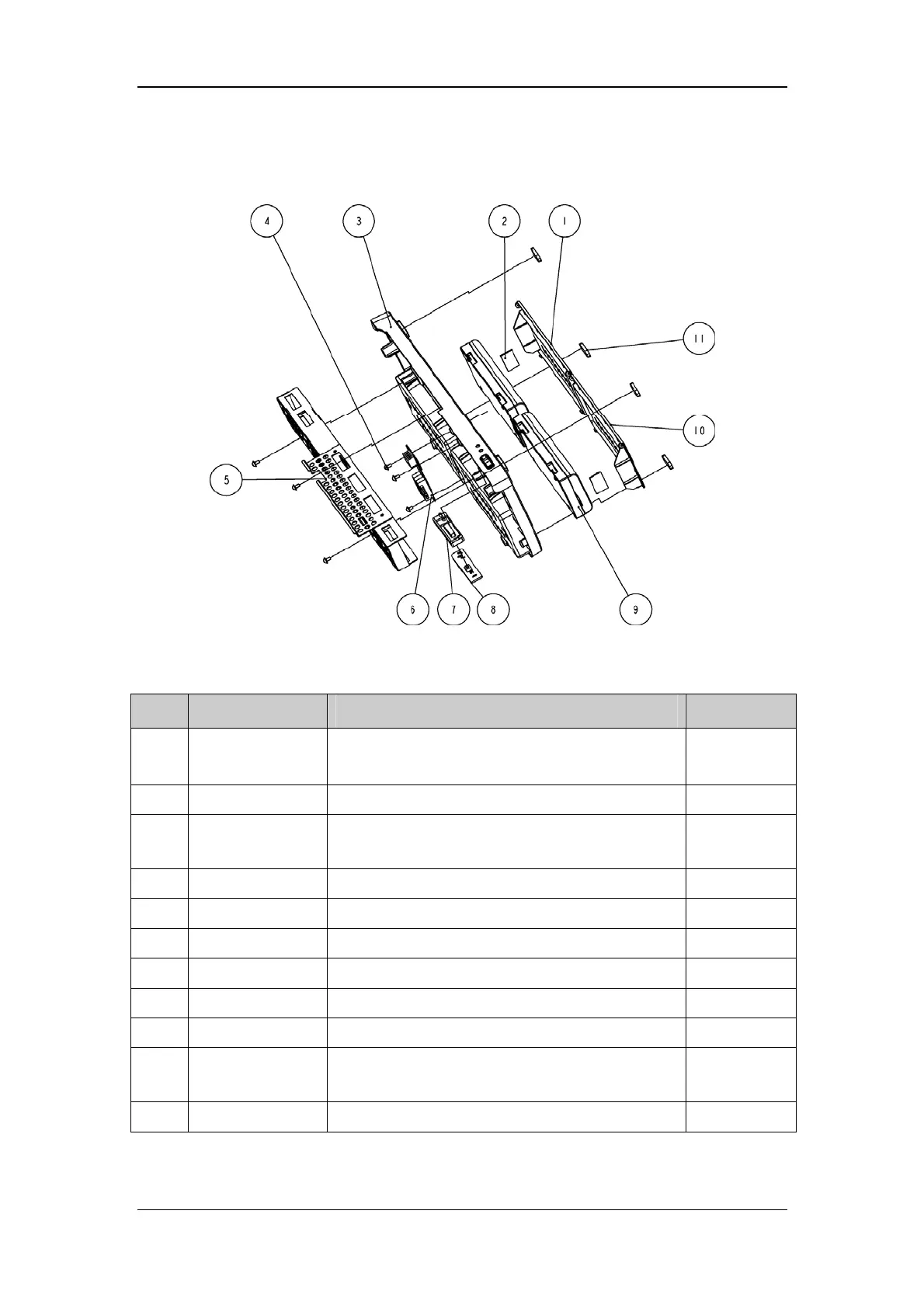

Exploded View
Parts List
SN P/N Description Qty
1
6800-20-50183 or
043-004072-00
Battery cover L 1
2 6800-20-50386 Battery cover spacer 2
3
6800-20-50181-51
or 043-004135-00
Bottom cover (T8) 1
4 M04-004012--- Crosshead screw M3×6 6
5 6800-20-50212 Base support 1
6 6800-30-50108 Battery interface board 1
7 6800-20-50201-51 Power switch (T8) 1
8 6800-30-50088 Power switch board 1
9 M05-010002-06 Lithium battery, 1.1 V, 4500 mAh 2
10
6800-20-50182 or
043-004071-00
Battery cover L 1
11 6800-20-50233 Cushion 4
