Mindray BeneView T6 Service Manual

5-38

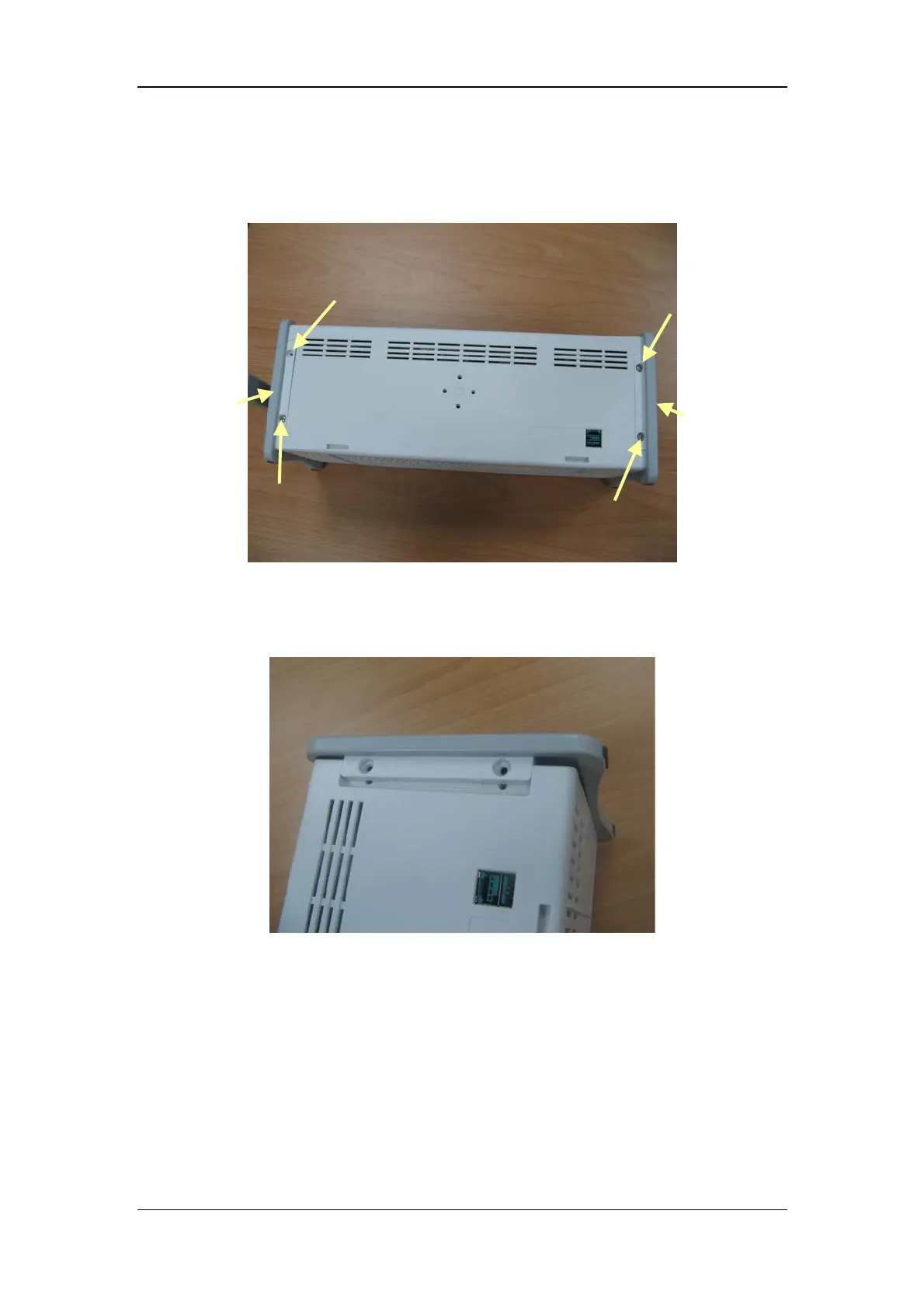

5.5 Removing the SMR Assembly
1. First remove the 4 screw covers and then unscrew the 4 M3×8 screws.
2. Pull off the left- and right-side boards. Be sure to place the rubber loop in position when
reassembling the right board.
Right-side board
Left board
