6.6.7 Main Control Board Assembly

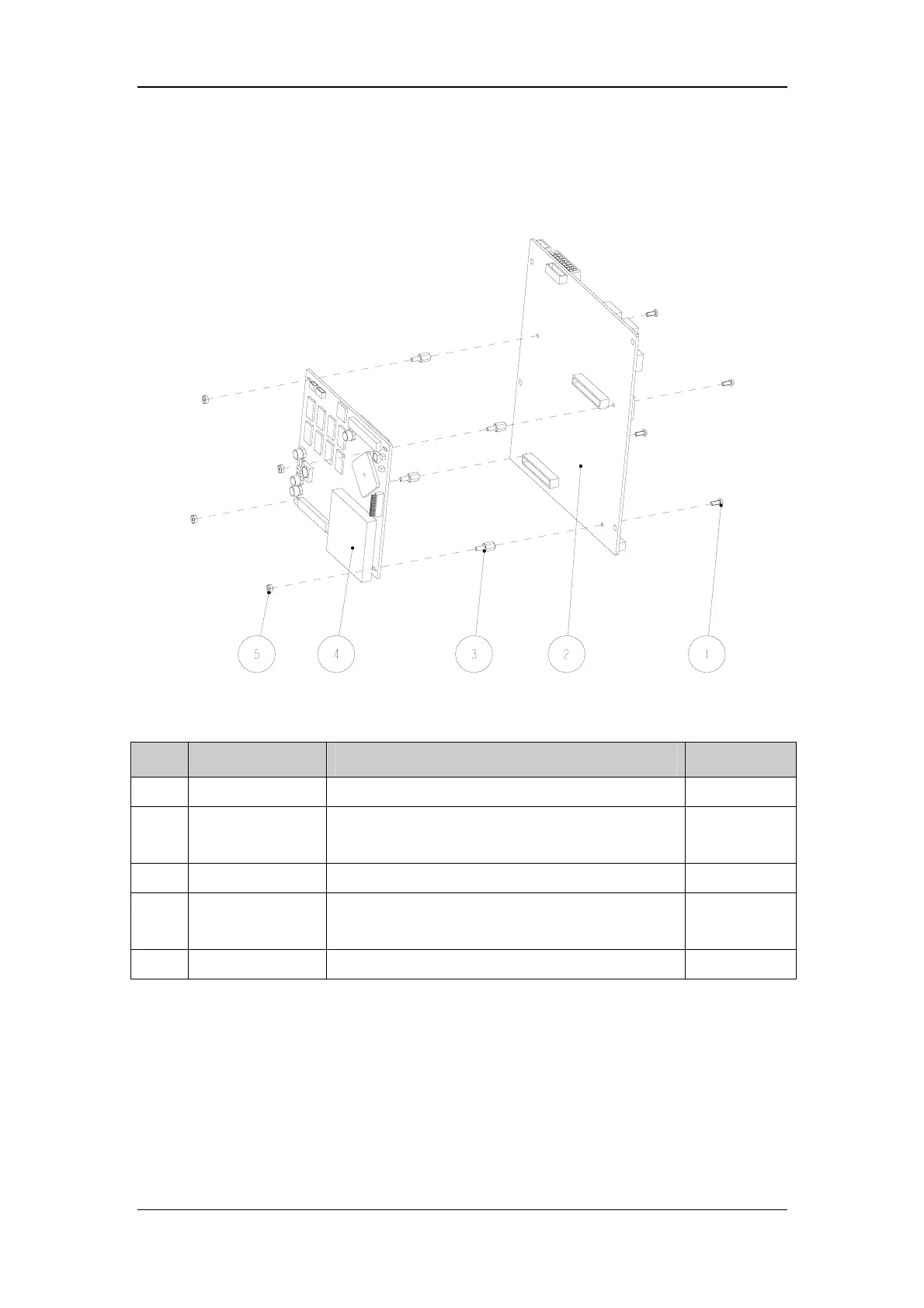

Exploded View
Parts List
SN P/N Description Qty
1 M04-051045--- Cross head screw M2.5×6 4
2
051-000220-00 or
051-000220-01
6800 mother board (full configuration)
6800 mother board (standard configuration)
1
3 M04-060021--- Stud M2.5x7+6-6 4
4
6800-30-50058 or
6812-30-66989
MCF547x CPU module (basic
configuration/lead-free)
1
5 M04-011001--- Nut GB6170 M2.5 4
