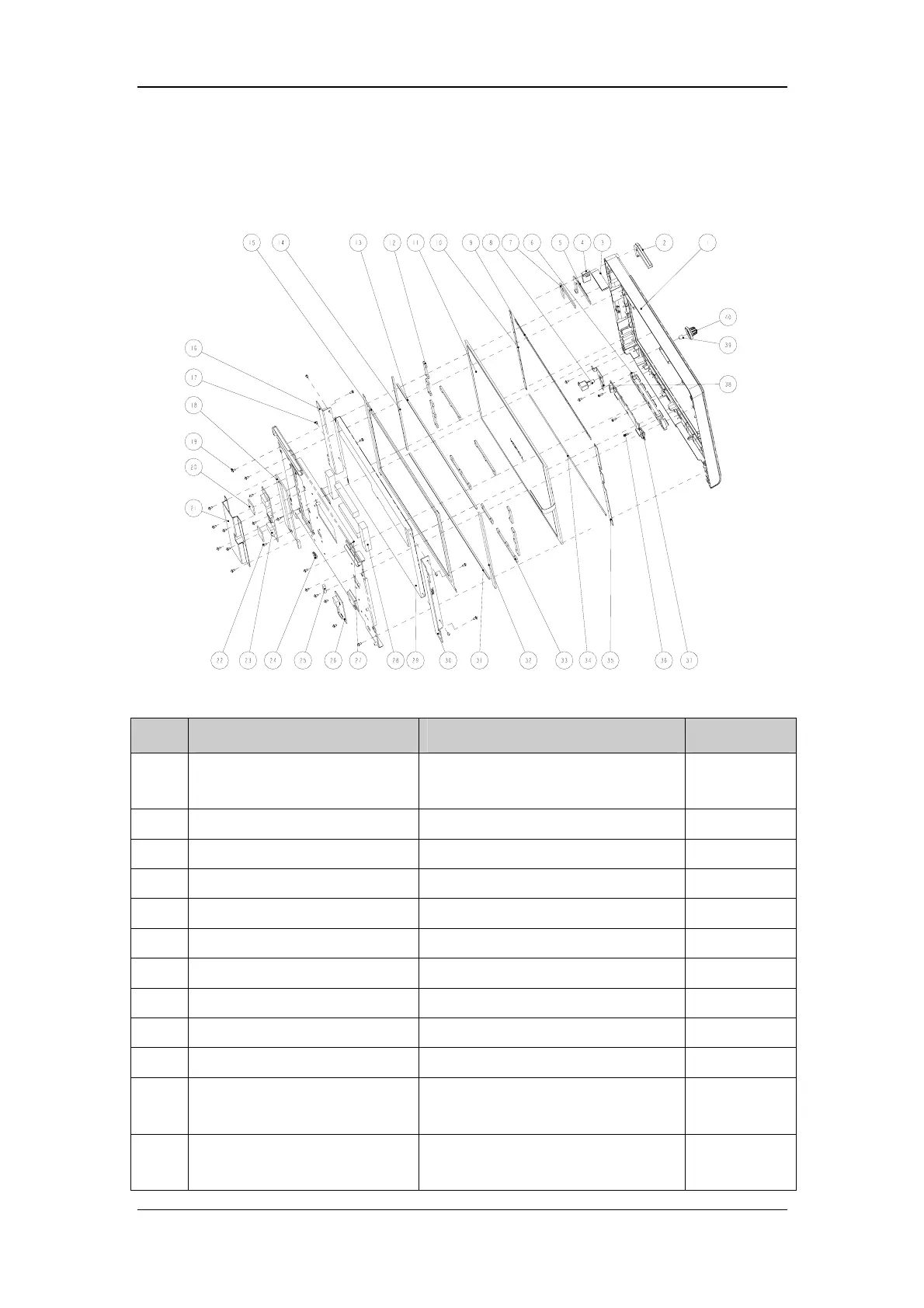

Mindray BeneView T6 Service Manual

6-13
6.5.5 15” LCD Touchscreen
Exploded View
Parts List
SN P/N Description Qty
1
043-000483-00 or
043-000483-01
Front bezel (T6) 1
2 6800-20-50199 Alarm LED cover 1
3 6800-20-50390 Light conducting block2 1
4 6800-20-50389 Light conducting block1 1
5 6800-30-50086 Alarm LED board 1
6 6800-20-50198 Silicon buttons 1
7 6800-20-50691 Insulating strip for alarm LED board 1
8 0000-10-10789 Optical Encoder 16 steps 5VDC Dip6 1
9 6800-20-50222 Dust-proof pad 1 1
10 6800-20-50223 Dust-proof pad 2 1
11
0000-10-11071 or
0000-10-10748 (Optional)
Touchscreen, resistance, 17.1″ five
lines
1
12
6800-20-50178 or
043-004068-00
LCD fixed plate 1 4
