5-49

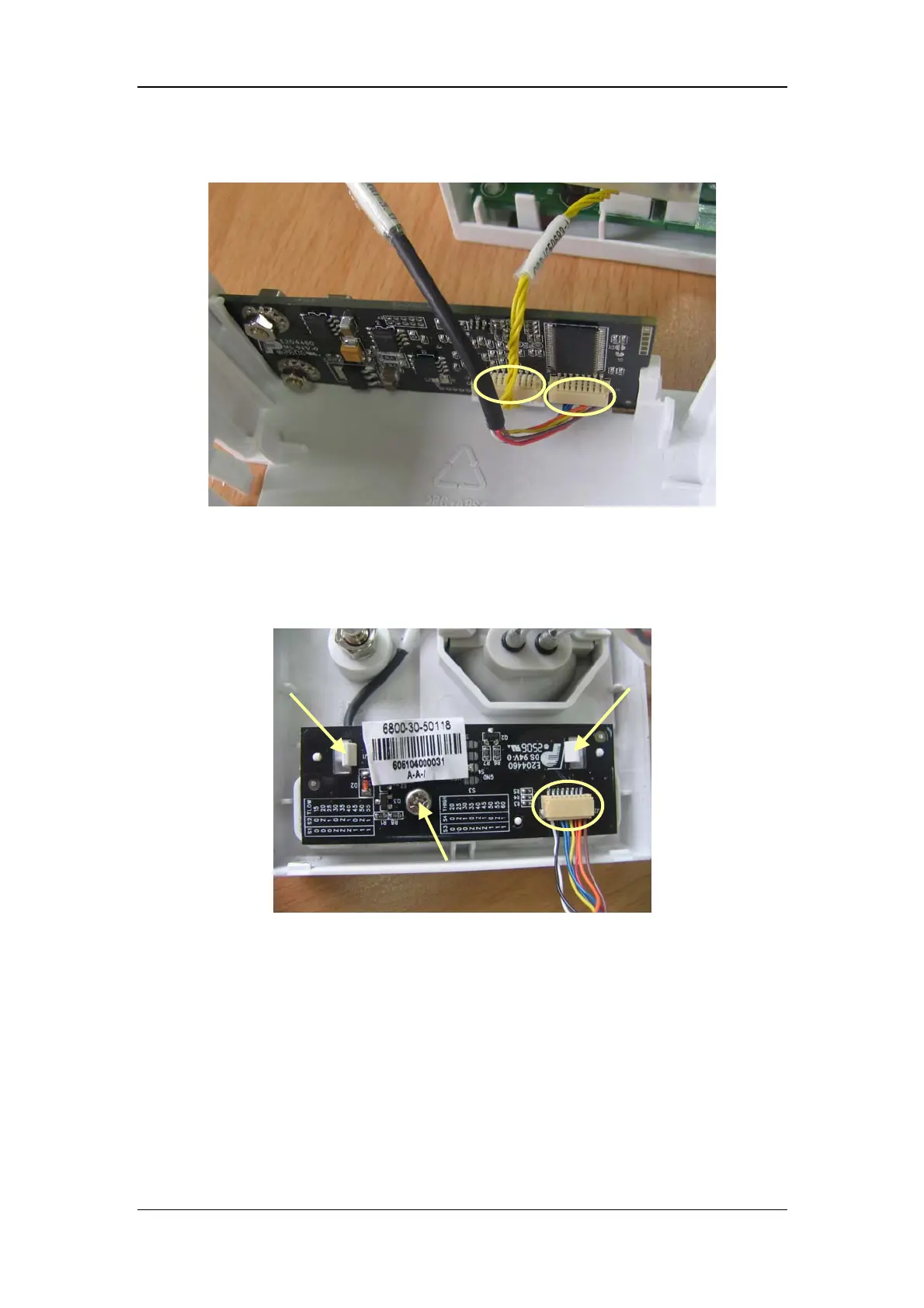

4. Take out the infrared communication board and disconnect all the cables from it.
5. Disconnect the cables from the button board and unscrew the PT3×8 screw. Then
release the two clips and take out the board. After that, disconnect the cable to the fan
and remove the button board.
