BeneVision TM80 Quick Reference Guide

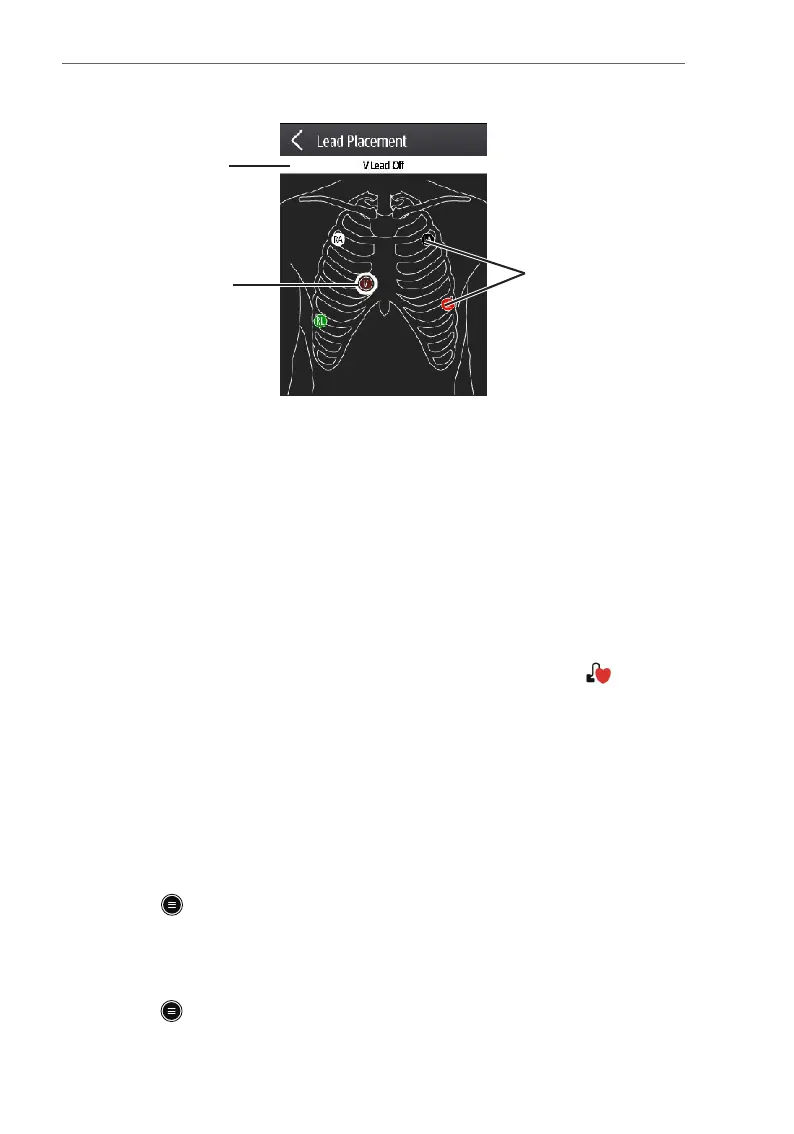

The Lead Placement window indicates the lead status.
When any of the leads are off, the indications are as follows:
• The lead off message displays on the information bar.
The background color of the information bar corresponds to the alarm
level.
• A flashing circle indicates the disconnected lead.
The color of the flashing circle is based on the alarm level.
Enable Pacer
The TM80 allows the clinician to enable pacemaker detection. The symbol
displays in the waveform area on the CMS when the pacemaker detection in
enabled.
To enable the pacemaker detection on the TM80:
• On the main screen, select the HR digital area or ECG waveform area to
enter the ECG menu.
OR
1. Press to enter the main menu.
2. Tap Patient Info.
3. Tap Paced to enable Pacer by selecting Yes.
4. Press to return to the main screen.
Information bar
Lead off indicator
Lead on indicator
To Next Page
