Duo™ Operating Instructions 0070-10-0603-01 1 - 7
General Product Description Controls and Indicators
1.2.2 Rear Panel
The rear panel provides a general information label, a serial port, an equipotential lug, an
AC receptacle and a mounting alignment slot.

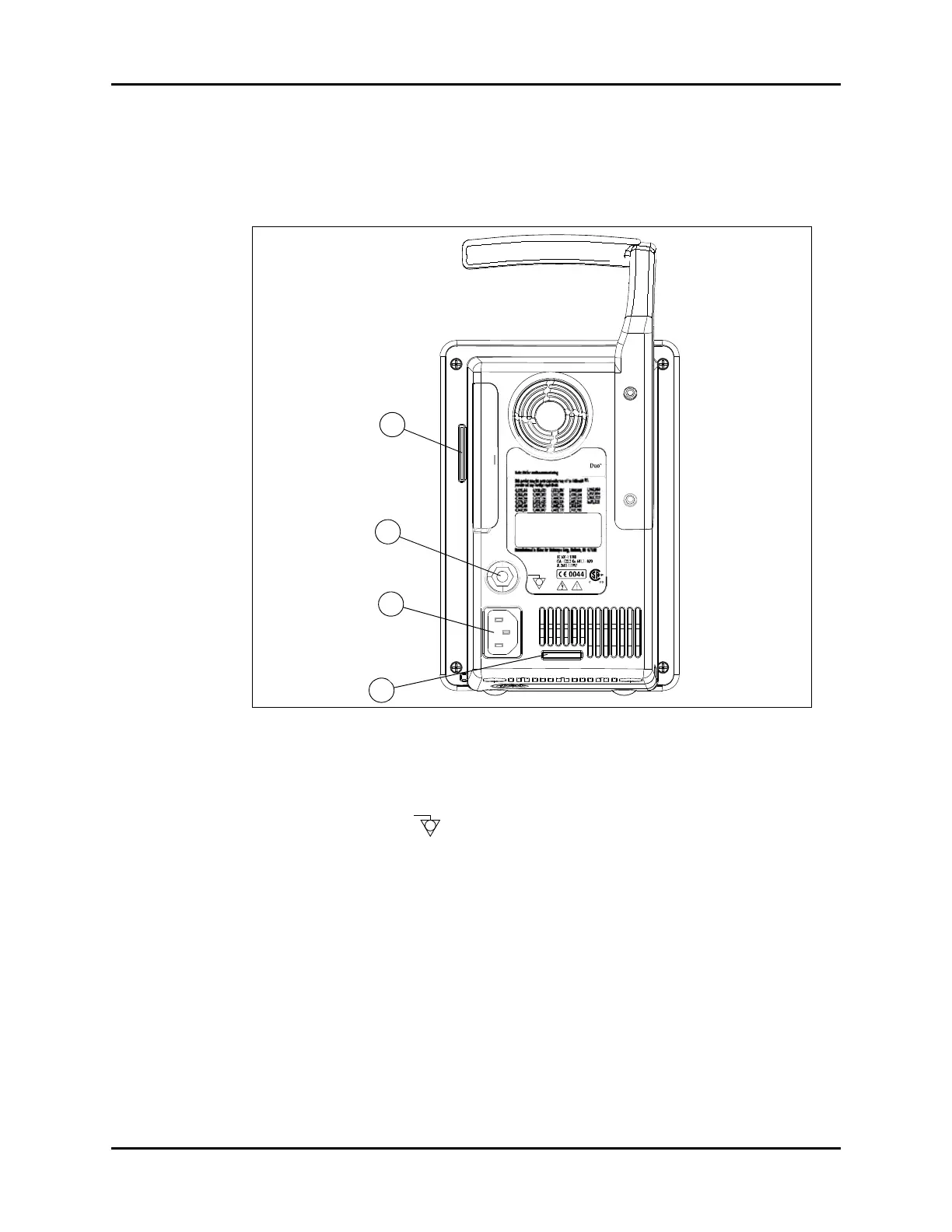

FIGURE 1-6 Rear Panel
1. Serial Port
This is used to connect optional modules.
2. Equipotential Lug
The equipotential lug provides equipotential grounding for hospital equipment.
NOTE: Ensure that when connecting external devices to the unit all
equipotential terminals are connected.
3. AC Receptacle
This is the connector for the AC power cord.
NOTE: The power supply, and battery charger (if the battery is
installed) are active any time AC power is supplied,
regardless of whether the monitor is ON or OFF.
4. Mounting Alignment Slot
This is used to align the Duo with the mounting plate on the optional rolling stand.
IEC 601-1:1988
CSA - C22.2 No. 601.1 - M90
UL 2601-1:1997
¨
0044
V 100 - 240~
A0.7-0.4
Hz 60 / 50
PN
SN
