1.2 Controls and Indicators
1.2.1 Front Panel
The Duo front panel is the main user interface, providing the digital LED display, keypad,
and connector panel.

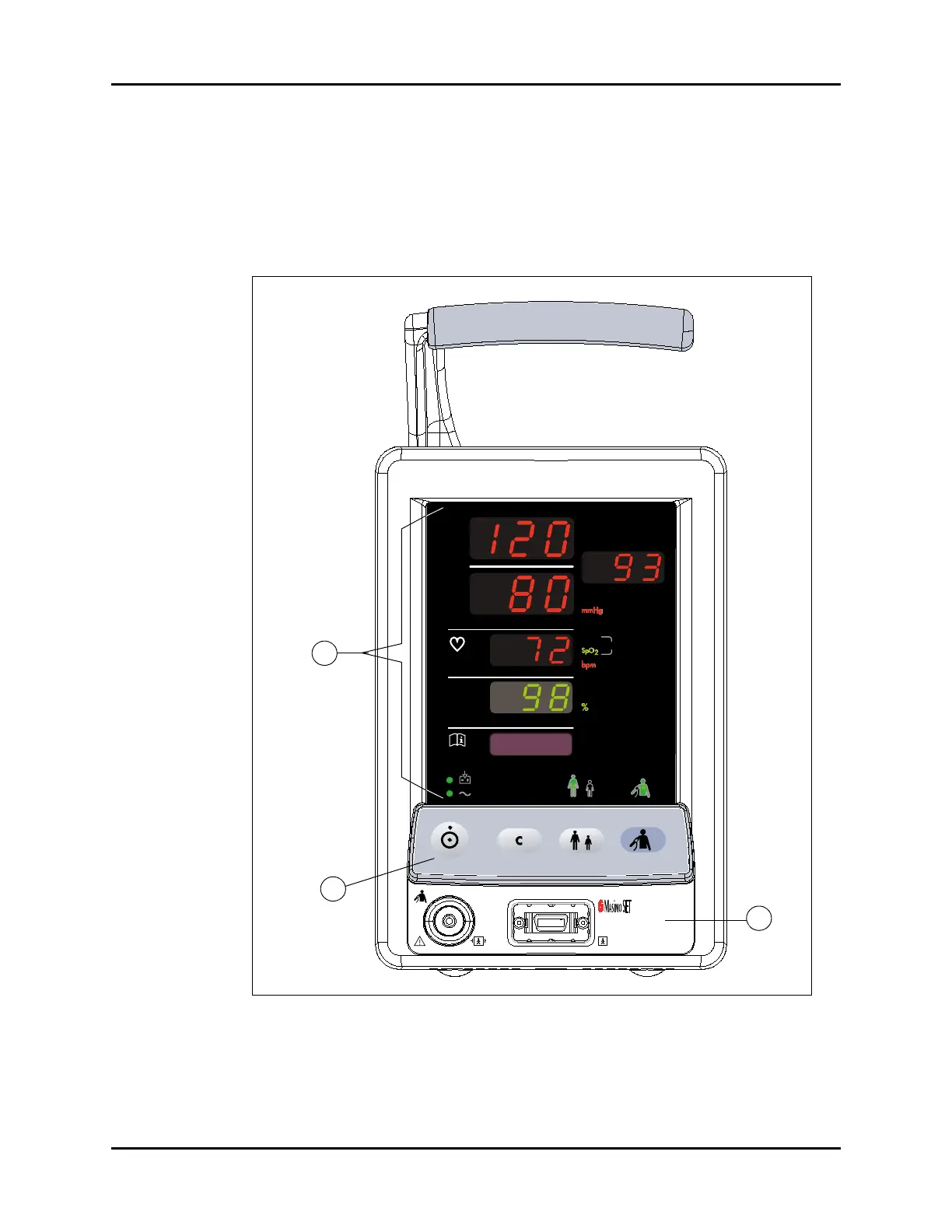

FIGURE 1-1 Front Panel
1. Digital Display
The Duo digital display features parameter tiles, numeric LEDs and LED indicators.
SpO
2
¨
Source
Sys.
Dia.
SpO
2
MAP
C
kPa
NIBP
1
2
3
