Duo™ Operating Instructions 0070-10-0603-01 1 - 3
General Product Description Controls and Indicators
Parameter Tiles
The parameter tiles (shown in FIGURE 1-2) display the readings for the monitored parameters
and also display information codes and error codes. When there is no measurement being
determined and no code condition exists for a particular parameter, its associated tile will be
blank.

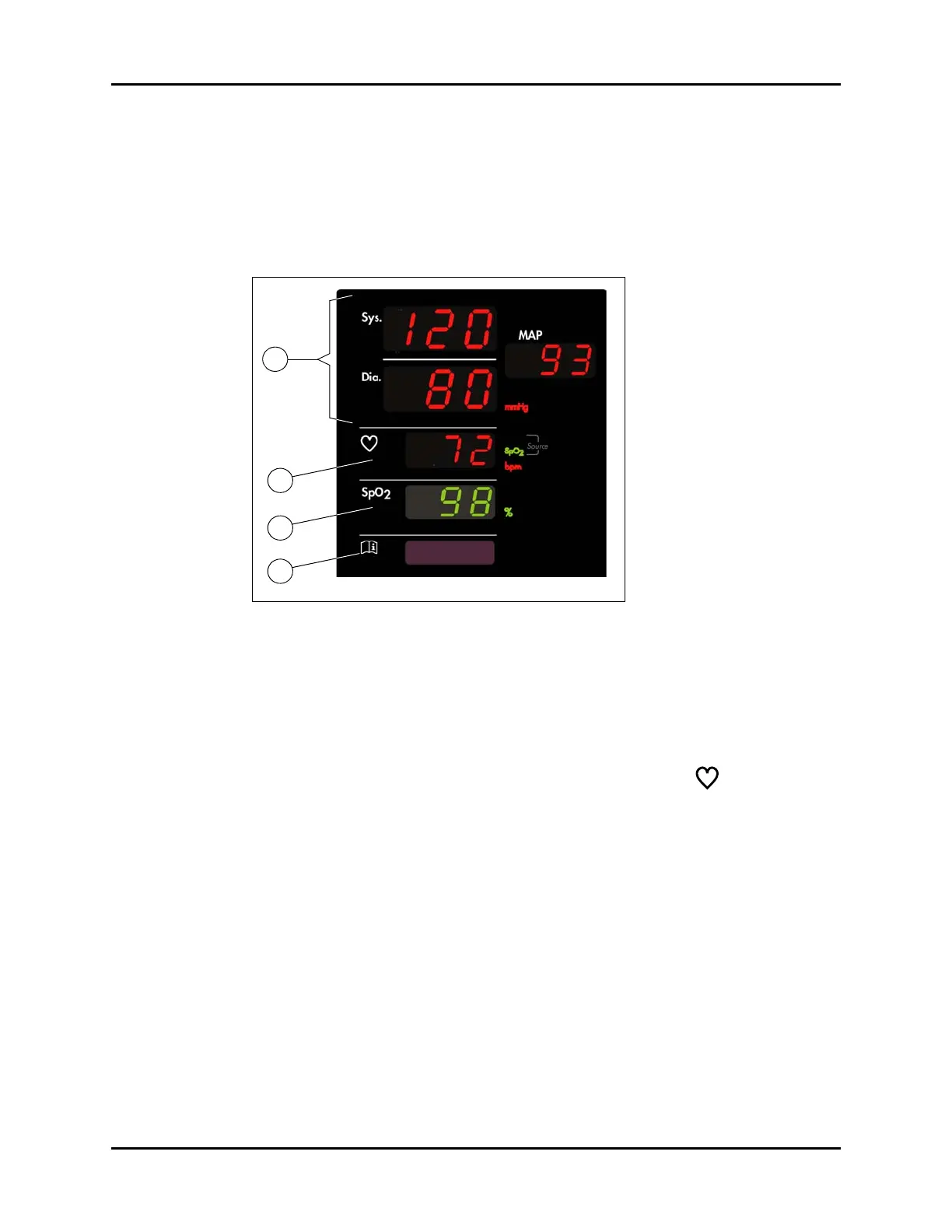

FIGURE 1-2 Parameter Tiles
a. NIBP
• The NIBP parameter tile is separated into three areas that are labeled as: Sys.
(systolic), Dia. (diastolic) and MAP (mean arterial pressure). The LEDs are red.
• The labels for the unit of measure are mmHg or kPa.
b. Pulse Rate
• The Pulse Rate parameter tile is labeled with a heart symbol.
The LEDs are red.
• The dual source labels are NIBP (red LED) and SpO
2
(green LED).
• The label for the unit of measure is bpm.
c. SpO
2
(Optional)
• The SpO
2
parameter tile is labeled SpO
2
. The LEDs are green.
• The label for the unit of measure is %.
d. Information Codes
• Information and error codes are displayed in the window.
• See section 2.4.1 for additional information.
a
b
c
d
