13-16 Probes and Biopsy
No. Name Description

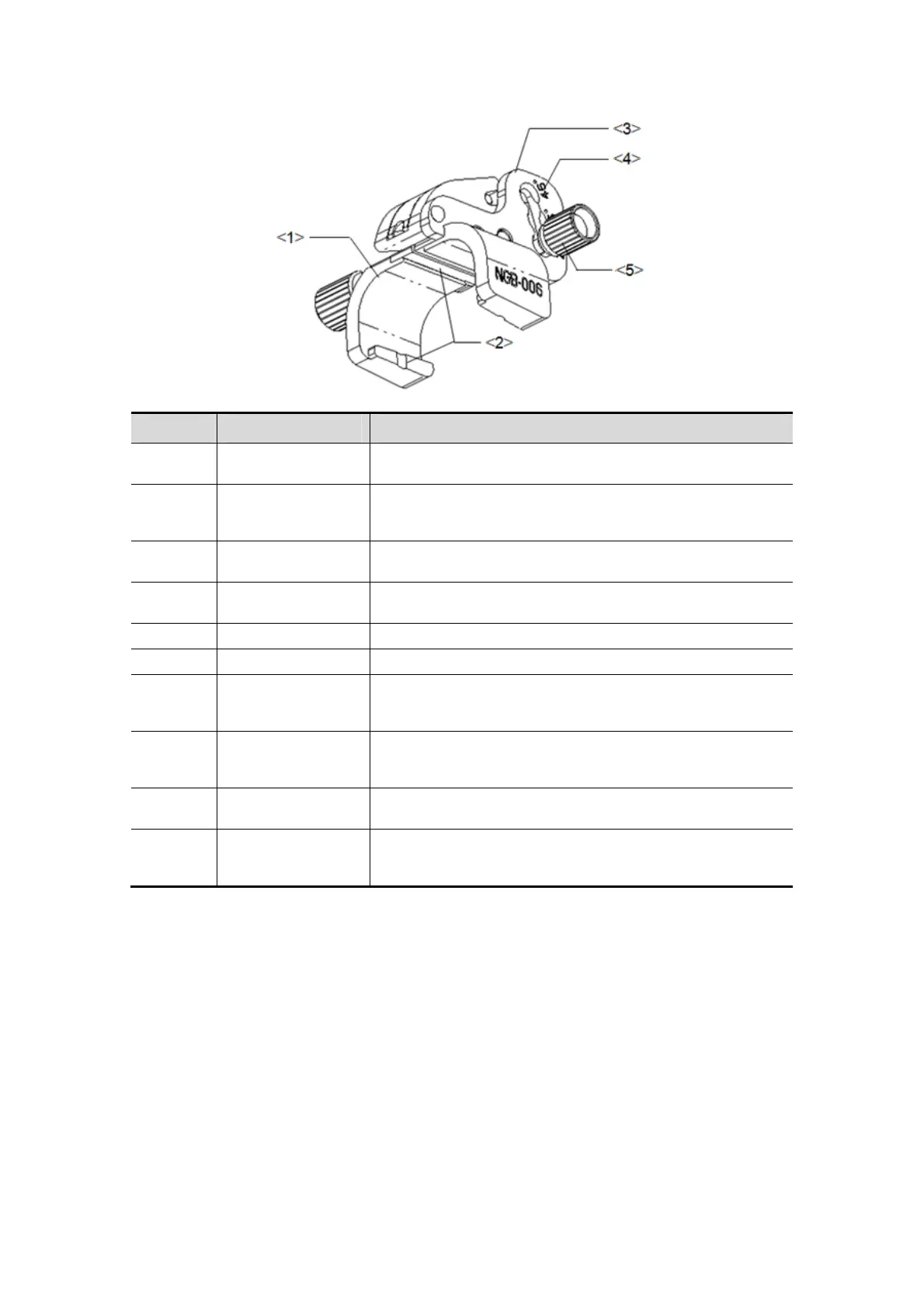

<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove and tab of
the needle-guided
bracket
Respectively matched with the tab and groove of the
probe.
<3>
Angle adjusting
base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign
(25°,35°,45°)
Matched with the biopsy angle (25°, 35°, 45°).
<5> Angle pinch nut Used for fixing the angle block at a chosen angle.
<6> Angle block Used for fixing the angle block at a certain angle.
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<8>
Specification of
guiding block
(14G)
Matched with the corresponding biopsy needle (14G).
<9>
Guiding hole of
the biopsy needle
Used for installing the biopsy needle.
<10>
Pinch nut of
needle-guided
bracket
Used for locking the needle-guided bracket and the
probe.
