2 - 3

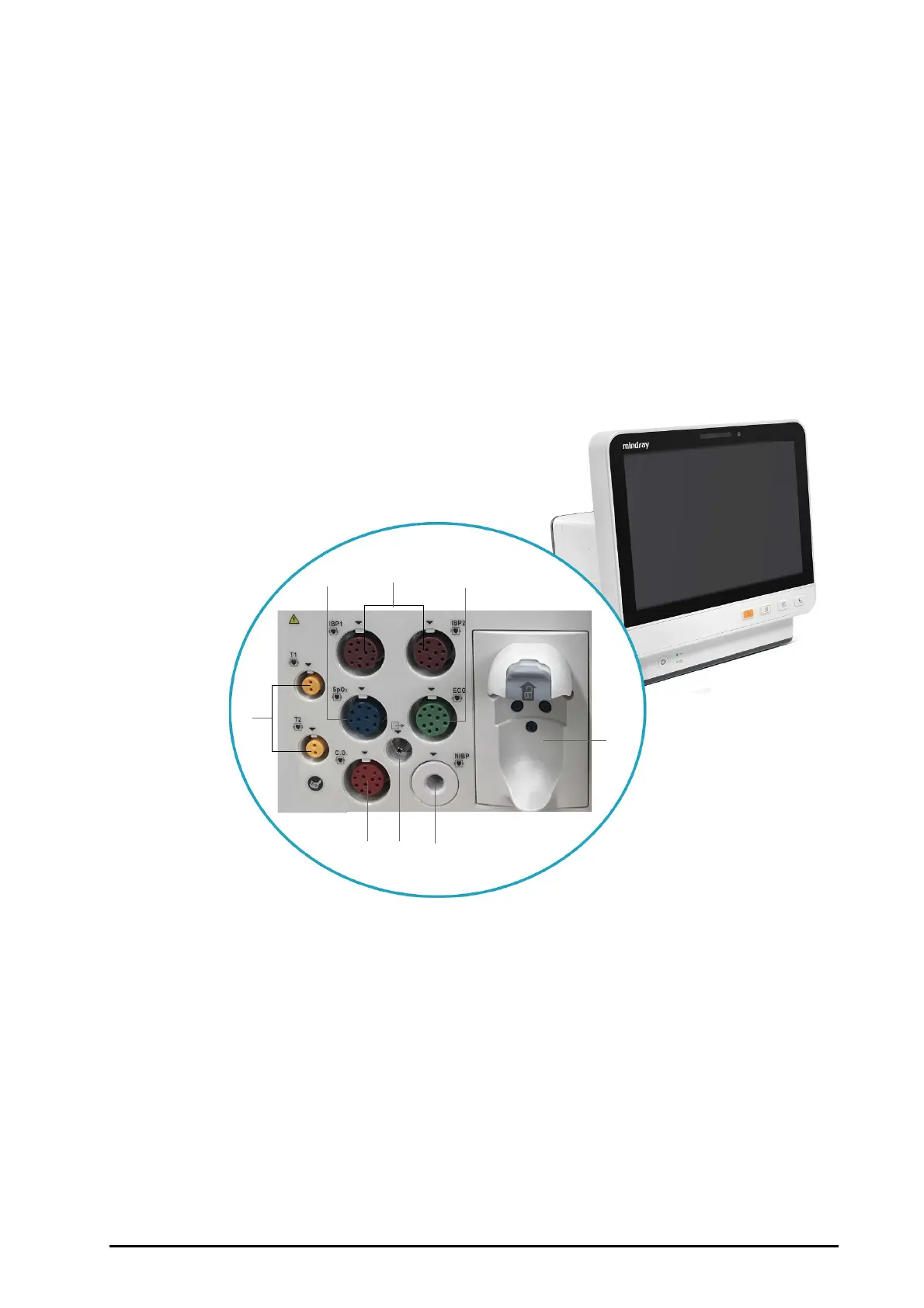

2.3.1.2 Left View
◆ On: when the power is connected.
◆ Off: when the power is not connected.
(8) Battery indicator
◆ Yellow: the battery is being charged.
◆ Green: the battery is fully charged.
◆ Flashing green: the monitor operates on battery power.
◆ Off: no battery is installed, or the battery is malfunctioning, or the monitor is powered off and
no power is connected.
(9) Power switch
◆ Pressing this switch turns on the monitor.
◆ When the monitor is on, pressing and holding this switch turns off the monitor.
(1) Temperature probe connector (2) SpO
2
probe connector
(3)IBP cable connector (4) ECG cable connector
(5) CO
2
watertrap seat (6) NIBP cuff connector
(7) Gas outlet (8) C.O. cable connector
(2) (3) (4)
(1)
(8) (7) (6)
(5)
