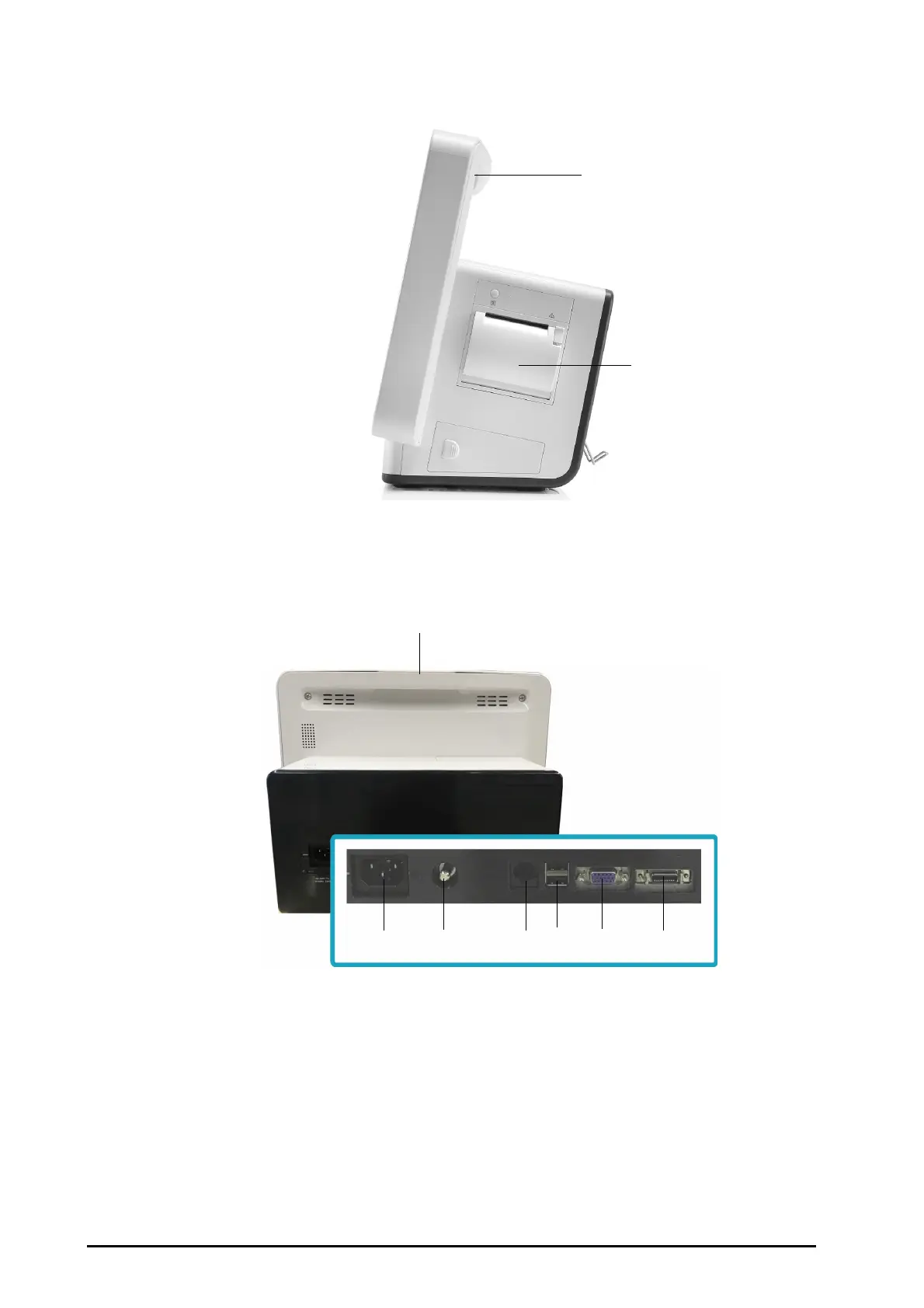

2.3.1.3 Right View
2.3.1.4 Rear View
(1) Handle (2) Recorder
(1) Alarm lamp
When a physiological alarm or technical alarm occurs, this lamp lights and flashes corresponding
with the alarm priority:
◆ High priority alarms: the lamp quickly flashes red.
◆ Medium priority alarms: the lamp slowly flashes yellow.
◆ Low priority alarms: the lamp lights in cyan without flashing.
(2) AC Power input
(3) Equipotential Grounding Terminal
When using the monitor together with other devices, connect their equipotential grounding
terminals together to eliminate the potential difference between them.
