Mindray Resona 7 Operator's Manual

6 Image Acquisition
Operator’s Manual 6 - 65

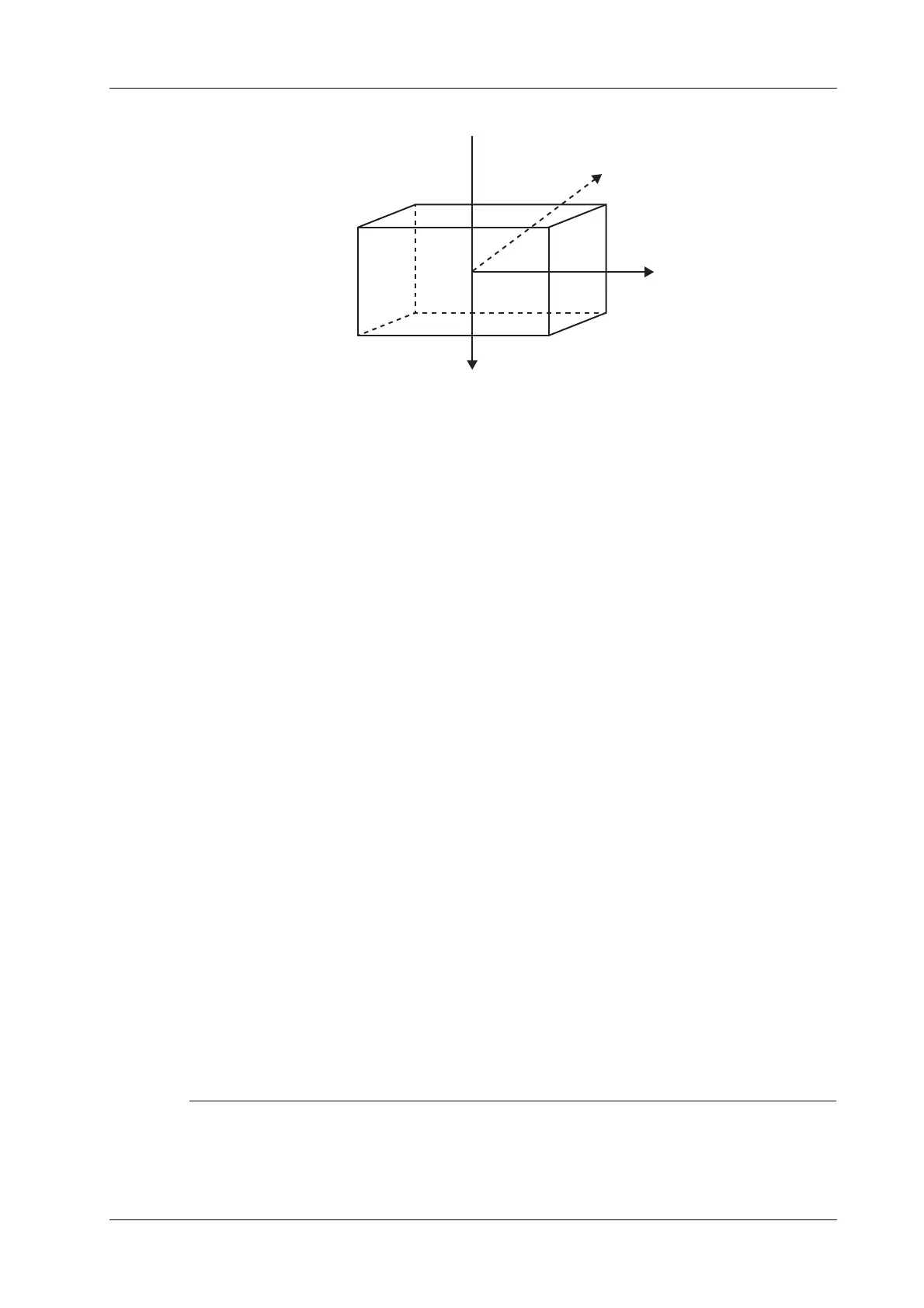

The relations of X-axis, Y-axis and Z-axis are given below:
• Rotate the knob <M> clockwise to cycle CT/MR/PET/freehand image clockwise through X-
axis.
• Rotate the knob <PW> clockwise to cycle CT/MR/PET/freehand image clockwise through Y-
axis.
• Rotate the knob <C> clockwise to cycle CT/MR/PET/freehand image clockwise through Z-
axis.
Offset X/Offset Y CT/MR/PET/Freehand Image
• It is available to offset CT/MR/PET/Freehand image through X-axis and Y-axis and obtain a
proper position to register.
• Rotate [Offset X]/[Offset Y] to offset the CT/MR/PET image.
Scrolling CT/MR/PET/Freehand Image
It is available to scroll one certain plane (sagittal/transverse/coronal) of CT/MR/PET/Freehand
image on the Ultrasound System and obtain a desired CT/MR/PET/Freehand plane to register.
• Rotate the <4D> key clockwise. The transverse plane moves towards the patient’s head. The
R~L axis and A~P axis on the transverse plane move towards the patient’s head.
• R~L axis, A~P axis correspond with the axe of coronal plane and sagittal plane. R~L axis of
coronal plane and A~P axis of sagittal plane move towards the cephalosome.
6.15.11Measuring
It is available to conduct the general measurements on the image that the ultrasound image registers
with the CT/MR/PET/freehand image.
6.15.12Comment and Body Mark
It is available to conduct the comment and the body mark on the image that the ultrasound image
registers with the CT/MR/PET/freehand image.
6.16 Smart Fetal HR (Heart Rate)
NOTE:
• This feature is available only under Fetal Echo (High Flow), OB1 Fetal Echo, Fetal Echo (Low
Flow) exam modes.
X
Z
Y
