2 - 12 Operator’s Manual
2 System Overview
S-VIDEO port performs better in analog video print.

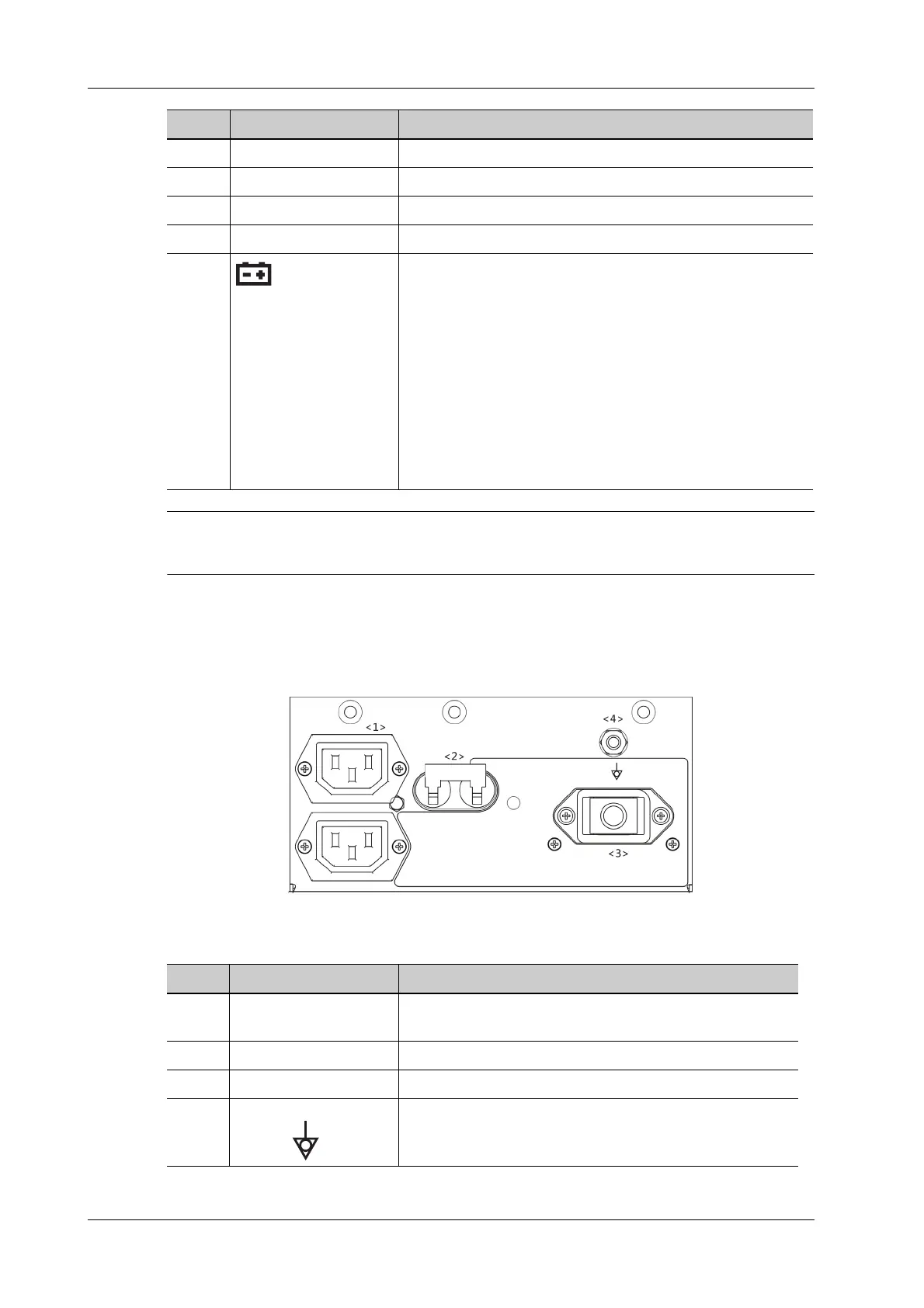

2.9 Power Supply Panel
Figure 2-3 Power Supply Panel
9. / 5 V indicator
10. / 3.3 V indicator
11. / PC_LVDS indicator
12. / Preserved function, PHV_OP protection indicator.
13. Battery status indicator:
• Charging status:
It illuminates in green when batteries are charged fully.
• Discharging status:
It illuminates in green when the power of the batteries is
more than 20%;
It blinks in orange when the power of the batteries is lower
than 20%.
It blinks quickly in orange when the power of the batteries
is lower than 5%.
No. Name Function
No. Name Function
1. Alternative current
auxiliary output
Supply power for optional peripheral devices.
2. Circuit breaker Used for switching off/ on the power supply.
3. Power inlet AC power inlet
4. Equipotential
terminal
Used for equipotential connection, that balances the
protective earth potentials between the system and other
electrical equipment.
