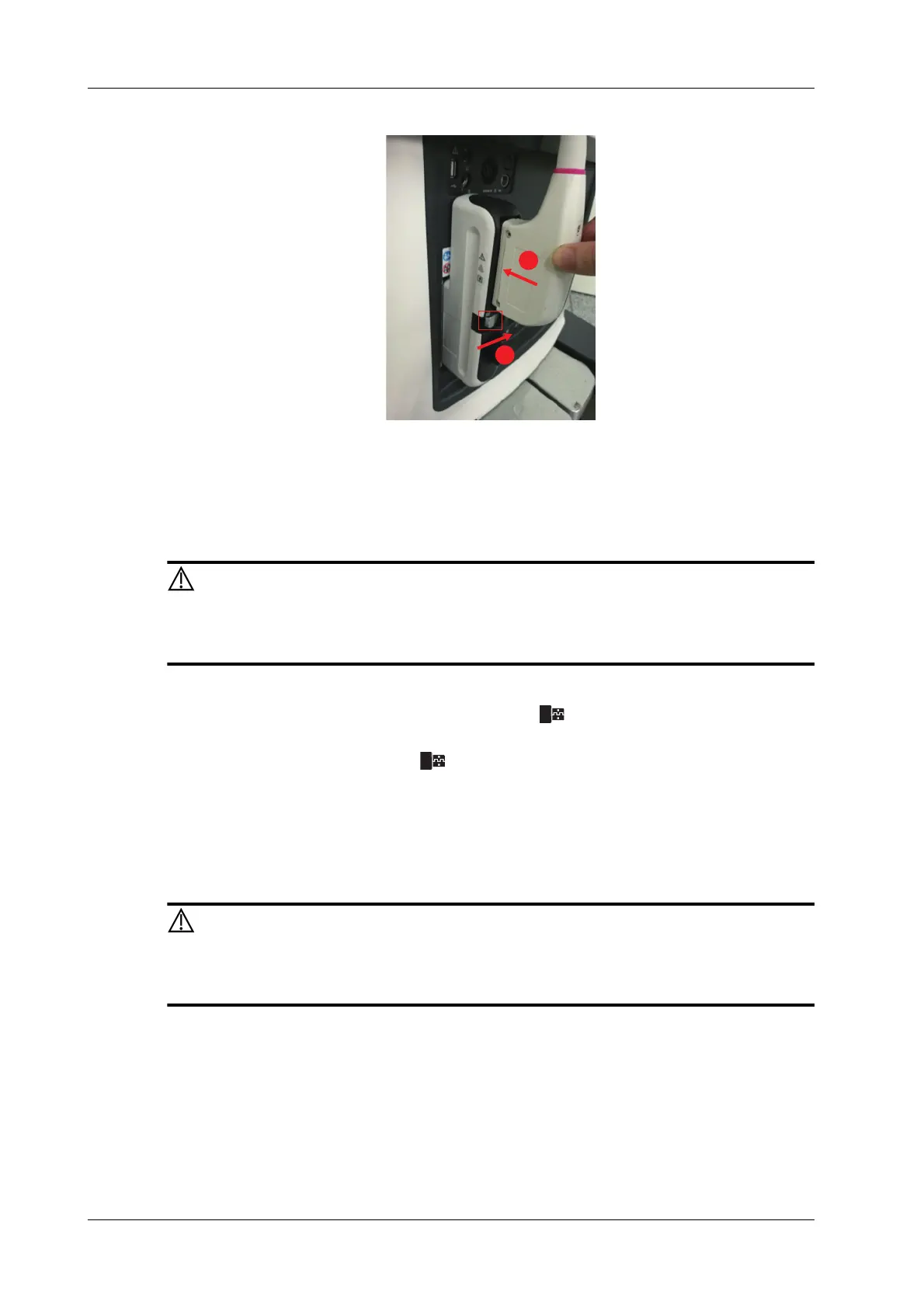

3 - 12 Operator’s Manual
3 System Preparation
3.8 Connecting Peripheral Devices
3.8.1 Connecting USB Devices
DO NOT directly remove a USB memory device, as the USB device and/or the
system may become damaged.
• When connecting a USB memory device to the ultrasound system via a USB port, a sound is
heard if it is connected successfully and the symbol appears in the bottom-right corner of
the screen.
• To remove the USB device: click to open the [Remove USB Device] screen. Select the
device to be removed and click [OK]. A sound is heard when removing the USB memory
device.
• The diagnostic ultrasound system supports USB 3.0.
3.8.2 Connecting a Footswitch
Do not connect two or more footswitches to the main unit; otherwise, it may
lead to the malfunction to the system.
The system supports USB port-type footswitch.
Directly insert the USB port of the footswitch to the system applicable USB ports.
Function Setting: The function of the foot switch can be preset. For details, see “4.1.6 Key
Configuration”
1
2
To Next Page
