13 Display & Cine Review
The cine progress bar at the bottom of the screen (as shown in the figure below):
Reviewing all of Auto Review
Perform the following procedure:
1. In the manual cine review status, use the [Auto Play] to set the review speed to activate auto
cine review.
In the auto cine review status, rotate the knob under the [Auto Play] on the touch screen to
adjust the review speed.
2. Exit: Tap [Auto Play] on the touch screen, or use the trackball, the auto review state becomes
manual cine review.
Setting scope of Auto Review
You can set a segment of cine loop which can be reviewed automatically.After the auto review
scope is set, the auto cine review can only be performed within this scope; but the manual cine
review can be performed beyond this scope. When the cine file is saved, only the images within this
scope are saved.
NOTE:
You can perform cine review on each image window in the dual/quad splitting mode, and set auto
review region for each window.
Perform the following procedure:
1. Set the start frame:
Rotate the knob under [Start Frame] in the touch screen to manually review the images for the
frame you want to set as the start point; or manually review the cine file by trackball and touch
[Set Begin] on the touch screen to set current frame to be the start point.
2. Set the end frame:
Rotate the knob under [End Frame] in the touch screen to manually review the images for the
frame you want to set as the end point; or manually review the cine file by trackball and touch
[Set End] on the touch screen to set current frame to be end.
3. Press the knob under [Auto Play] on the touch screen or use the mapping menu. The system
plays the auto review region automatically.
4. Rotate the knob under [Auto Play] to increase/decrease the auto play speed or use the mapping
menu.
5. In the auto cine review, press the knob under the [Auto Play] on the touch screen or rolling the
trackball will stop the auto cine review and enter the manual cine review.
6. Click [Jump to First]/ [Jump to Last] to review the first or last image.

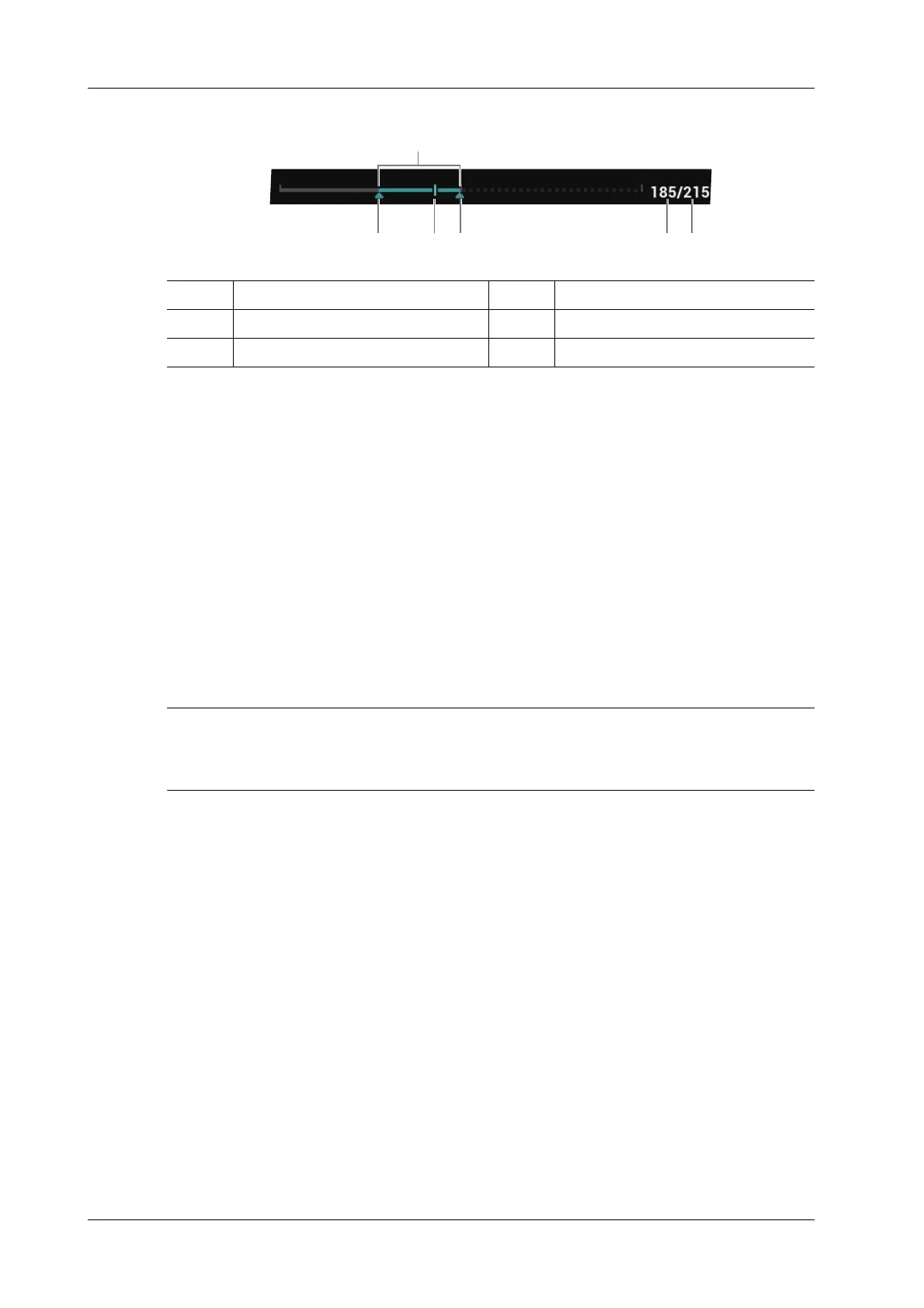

1 Start mark 2 Playback mark
3 End mark 4 Current frame
5 Total frames 6 Auto Review Region
123
6
45
