17 Probes and Biopsy
Operator’s Manual 17 - 33

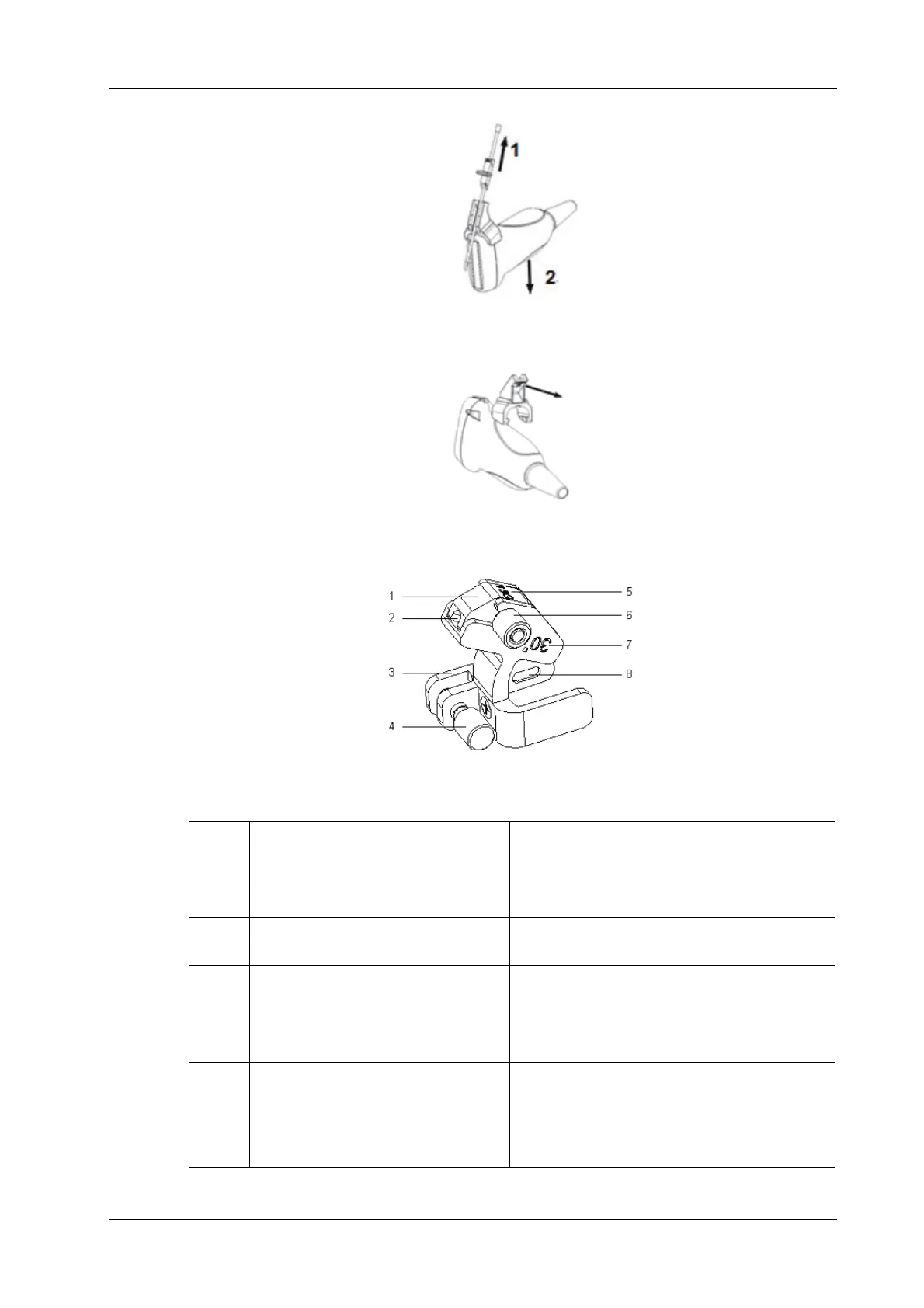

c. Remove the support of needle-guided bracket from the transducer.
NGB-010
1. Guiding block Used for installing biopsy needle; there are five
specifications of guiding blocks for different
biopsy needles.
2. Guiding hole of the biopsy needle Used for installing the biopsy needle.
3. Support of needle-guided bracket Used for installing the needle-guided bracket on
the probe.
4. Knob of fixing needle-guided bracket Used for fixing the needle-guided bracket on the
probe.
5. Specification of guiding block (13G) Matched with the corresponding biopsy needle
(13G).
6. Knob of fixing the guiding block Used for fixing the guiding block.
7. Needle guide angle The needle guide angle of this needle-guided
bracket.
8. Grooves of the needle-guided bracket Matched with the tabs of the probe.
