UA-66 Urine Analyzer Operator’s Manual
- 6 -
NOTE: Retain the UA-66 shipping carton for future use. If the instrument ever needs to
be shipped, the shipping carton will afford the best protection.
2.4 Outline of the Instrument
Feed Table
Insert
Printer Cover Display Keyboard Feed Table

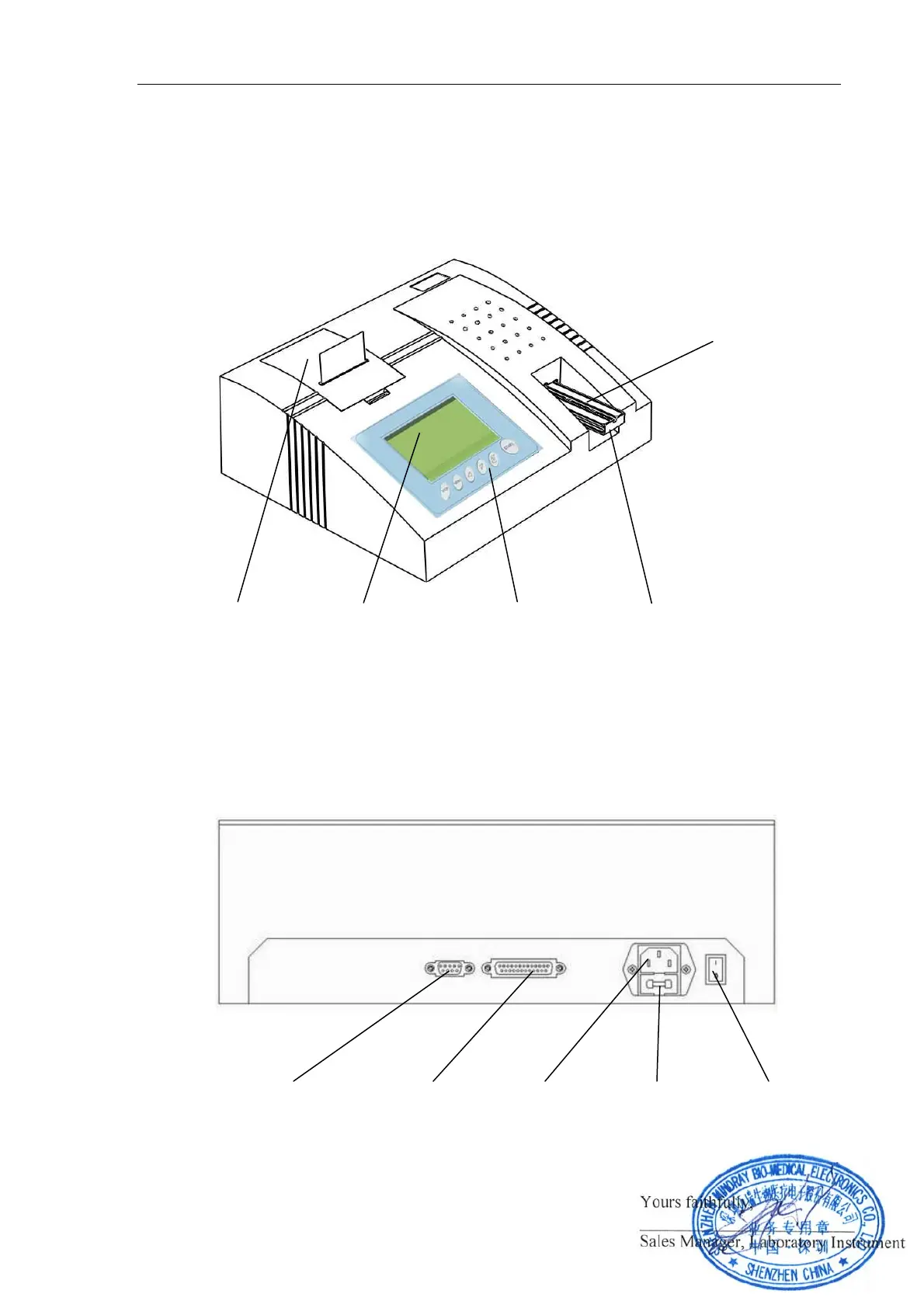

Figure 2.1
Figure 2.1 shows the top view of the instrument. Pay attention to the feed table and the feed
table insert components. The reagent strip is held and moved in and out by these two
components while being tested. The feed table is mounted on the instrument and cannot be
removed from the instrument. The feed table insert is mounted on the feed table and can be
removed from the feed table when need to be cleaned or disinfected (see 7. Maintenance).
`
Serial port Parallel port Power jack Fuse Power switch
Figure 2.2
