Minelab E-Trac User Manual

64
65
Audio Menu
Sounds
Range: Conduct or Ferrous
Factory Preset: Conduct
The Sounds setting allows you to set
the detector to emit a distinct audio
response based on either a target’s ferrous
characteristics or its conductive properties. To
test your selection it is necessary to move the
coil across one or more targets with different
conductive and ferrous characteristics.
Note: Even though you can still adjust the
Sounds when the No. of Tones is set to 1,
it will not have any effect on the target
audio response.
Conduct
When Conduct is selected, audio tones are
emitted according to the target’s conductivity
(the horizontal axis of the Smartfind Window,
or the second number in the Digital Screen).
A high pitched signal denotes a large, highly
conductive object with Target Crosshair
displayed near the right of the Smartfind
Window (or near a CO number of 50).
A low pitched signal denotes a small object
with low conductivity; the Target Crosshair
is displayed near the left of the Smartfind
Window (or near a CO number of 1).
Tip: Conduct is often preferred by coin hunters,
as desirable targets such as gold, copper and
silver coins will give a high tone signal response,
compared to low conductive junk targets such
as foil and pull tabs.
Tone ID
The Tone ID sub-menu allows you to define
how the tone of the audio varies when
different target characteristics are detected.
This can be a very useful feature in identifying
targets close to each other.

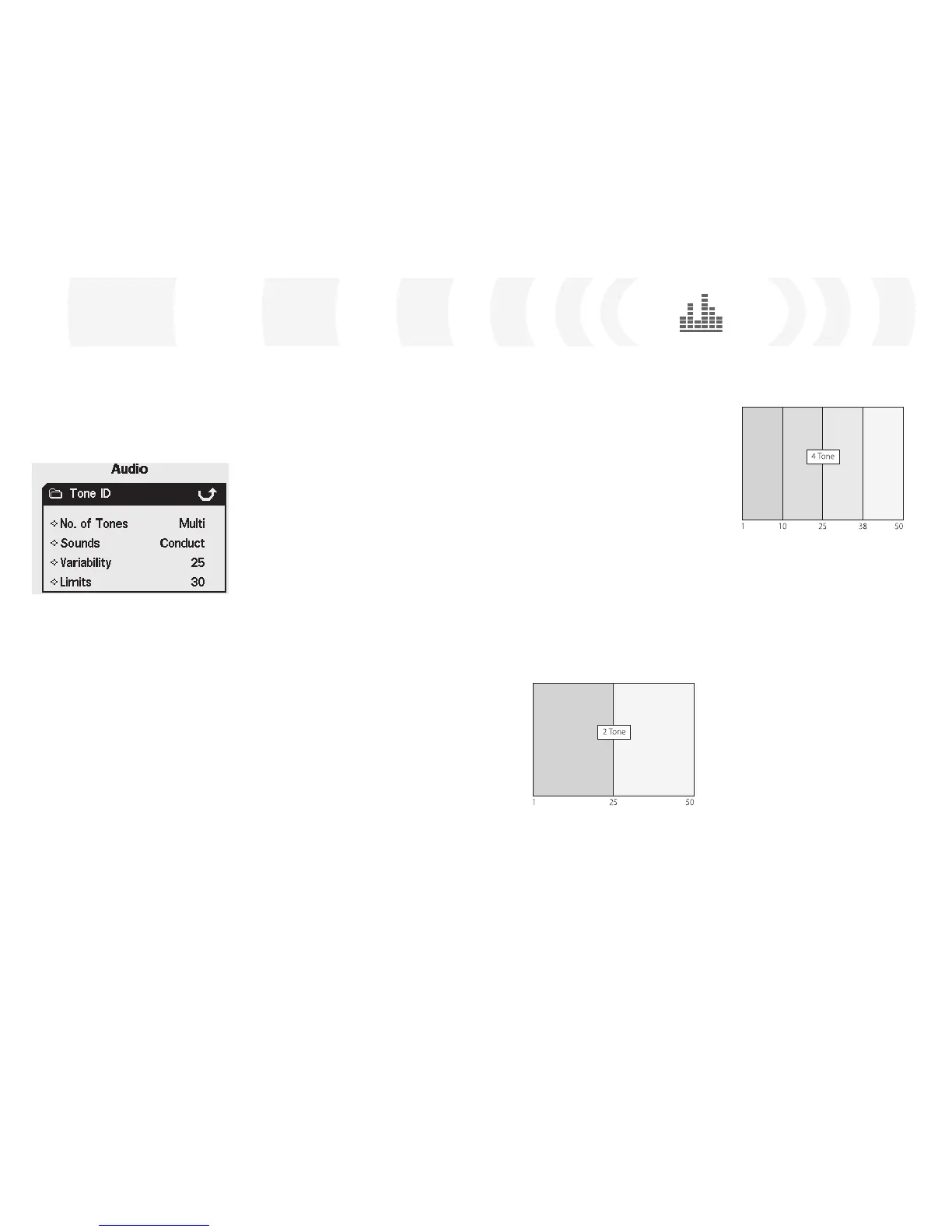

Number (No.) of Tones
Range: 1, 2, 4 or Multi
Factory Preset: Multi
You may select how many different tonal
responses there are while detecting.
These are:
– 1; all sound is monotone,
– 2; all sound is duo tone i.e. low and high,
– 4; four different tones ranging from low
to high,
– Multi; multiple tonal responses to different
target signals.
The Factory Preset number of Tones is set
to ‘Multi’, giving multiple tonal responses to
different targets.
To change the Number of Tones:
1 Press the Menu button
2 Scroll across to Audio (using the Right or
Left Navigation button)
3 Scroll down to Tone ID (using the Down
Navigation button)
4 Press either the Left or Right Navigation
button to enter the Tone ID sub-menu
5 Scroll down to No. of Tones
6 Press either the Left or Right Navigation
button to change the No. of Tones
7 Press the Detect button to exit the Menu
and resume detecting
Conductivity
Conductivity
High Pitch
High Pitch
Low Pitch
Low Pitch

Minelab E-Trac Specifications

General

Transmission Technology	Full Band Spectrum (FBS) Multifrequency Technology
Microprocessor	32bit, 48MHz microprocessor – fast and powerful
Coil	Ultra-lightweight 11” Double D (DD) waterproof coil
Connectivity	USB connector for communication with Personal Computer
Software	Intuitive User Interface; Fast Target processing; Multi-language functionality
QuickMask™	Fast and Easy adjustment of Ferrous and Conductivity Discrimination
User Modes	4 Minelab Modes and 4 My Modes
Depth Gauge	Accurate Gauge active in Normal detecting and Pinpoint mode
Pinpoint	Non-motion with modulated audio and visual Crosshair on LCD, 2 Modes – Normal and Sizing
Discrimination	2 Dimensional Smartfind™ Discrimination
Target Identification	2 Dimensional Smartfind™ Size / Conductivity and Ferrous characteristics Conductivity 1-50, Ferrous 1-35
Sensitivity Adjustment	Fully Automatic; adjustable to be more aggressive or conservative, Manual Setting 1-30
Sensitivity Gauge	Auto Level, Manual Level, Suggested Level
Threshold	Fine adjustment level from 1-50
Recovery Speed	Selectable Fast & Deep
Trash Density	Low for areas with isolated targets or High, for areas with more trash
Noise Cancel	Automatic & Manual selection of 11 channels
Audio Response	4 Settings: Normal, Long, Smooth, Pitch Hold
Tone ID Number of Tones	1, 2, 4 and Multi-tone; customizable for Conductivity or Ferrous response
Tone ID Variability	30 adjustable steps for better Target Identification
Headphone	Input ¼” 100Ω Stereo Jack
Ground Balance Modes	Auto Ground Compensation - Advanced Digital Filtering
Ground Settings	Neutral for most ground conditions, Difficult for more mineralized soils
Batteries	1600 mAh NiMH or Alkaline batteries
Low Battery Audio Alarm	Audio and visual indication
Visual Display	Large 3.4” (8.65cm) greyscale LCD panel with Contrast adjustment and Backlight
Patents	US 4890064; US 5537041; US 5506506
