24v
12v
Battery 1
Battery 1 Battery 2
Black
B-
Black B-
Red B+
Red B+
B+
B-
M+
M-
Control Board
Red
Red
Black
Black
Battery
Gauge
Motor
Steering
Housing
Coil Cord
Black
White
White
Accessory
Attachment
Red M+
Red M+
Black M-
Black M-
Black M-
Red M+
Control Head
Black
Accessory
Attachment
i-Pilot
i-Pilot
RIPTIDE POWERDRIVE WITH i-PILOT

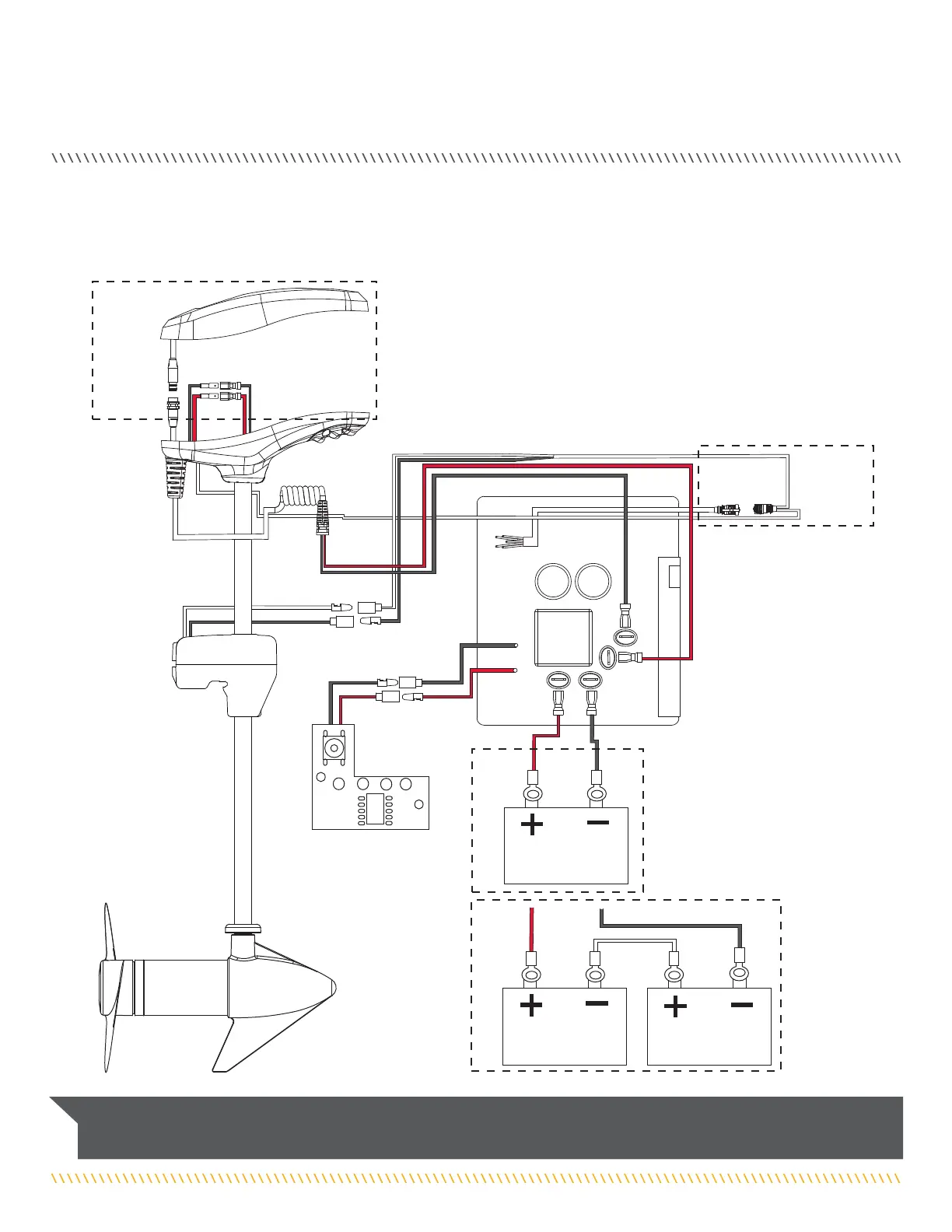

The following Motor Wiring Diagram applies to all PowerDrive models that come factory installed with i-Pilot.
NOTICE: This is a multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current Protection
Devices are not shown in this illustration.
