minnkotamotors.com | 23
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING AN EXTERNAL TRANSDUCER
c. Rotate the Latch Collar so it fits comfortably within
the hold of the Deploy Assist Lever.
d. Re-tighten the screw to secure the Latch Collar
in place.
An external transducer is not included with your trolling motor. An external transducer can be installed onto the motor.

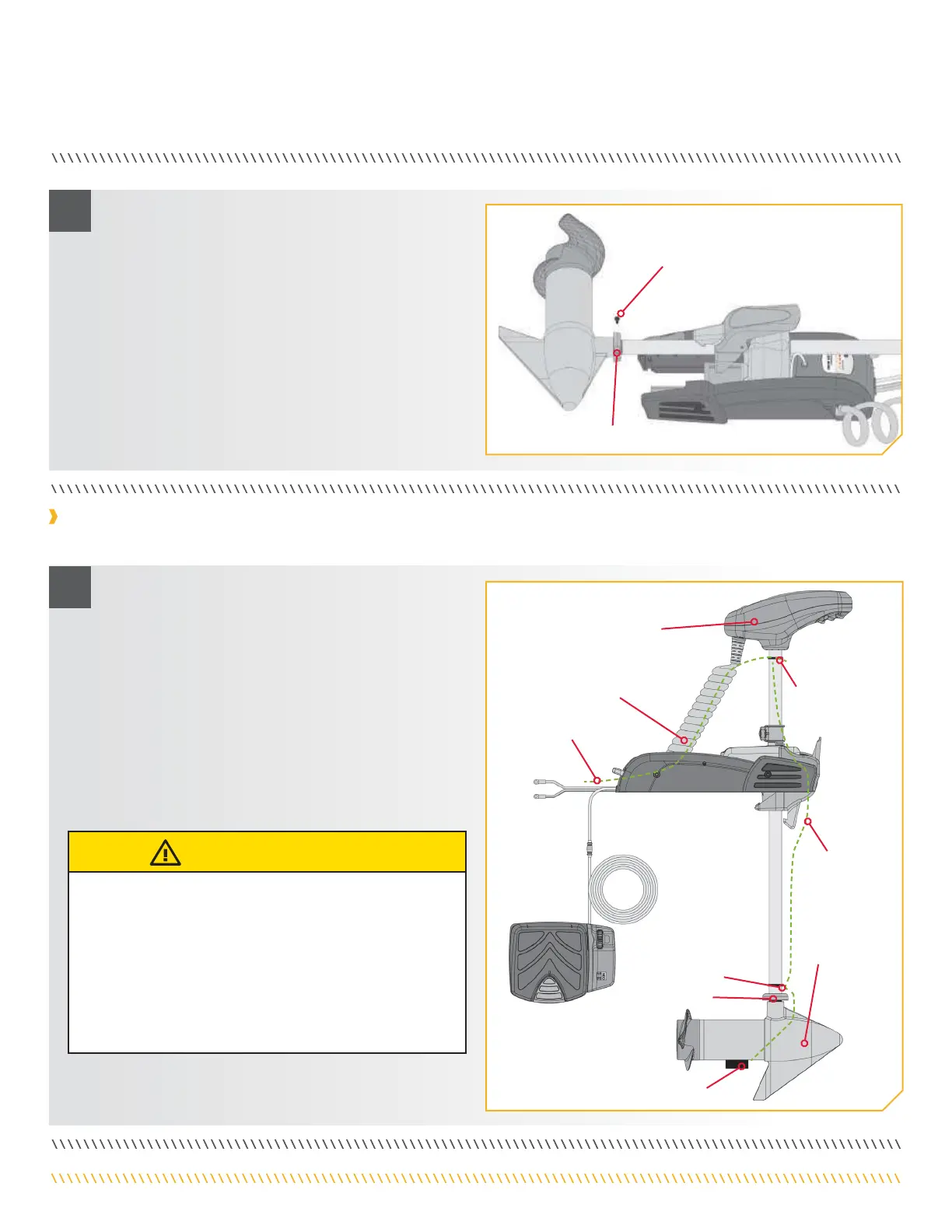

Installing an External Transducer
a. Mount the External Transducer according to
directions provided with the transducer.
b. Leave enough slack in the Transducer Cable between
the Lower Unit and Motor Control Head to allow the
motor to properly stow and deploy.
c. Use two tie wrap cables to secure the Transducer
Cable to the Shaft just above the Latch Collar and
just below the Motor Control Head.
d. Run the Transducer Cable through the Coil Cord to
the fish finder.
Slack
Tie Wrap Cable
Latch Collar
Lower Unit
Tie Wrap Cable
External Transducer
Transducer Cable
Coil Cord
Motor Control Head
Latch Collar
Screw
2
1
CAUTION
Not following the recommended wire routing for the External
Transducer may cause damage to the product and void
your product warranty. Take care to test the length and
placement of cable to be sure that there is enough slack
where needed and that cables are free of being entangled
in moving parts. Routing the cables in any way other than
directed may cause damage to the cables by being pinched
or severed.
