ADJUSTING THE LATCH COLLAR
a. With the motor in the deployed position, locate
the Depth Collar on the Shaft above the
Steering Housing.
b. While holding the Shaft, loosen the Depth Collar
Knob until the Shaft can slide up and down freely.
c. Raise or lower the motor to the desired depth.
d. Turn the motor control head to the desired position.
e. Slide the Depth Collar against the Steering Housing
and tighten the Depth Collar Knob to secure the
motor in place.
NOTICE: Be sure the top of the motor is submerged
at least 12” below the surface of the water to avoid
churning or agitation of surface water.
a. With the motor in the stowed position, locate the
Latch Collar.
b. Using a #2 Phillips Screwdriver, loosen the screw
securing the Latch Collar in place.
Once the motor has been used, it may be necessary to adjust the Latch Collar up or down. The ideal adjustment is a slightly loose fit
that completely captures the Latch Collar in the Deploy Assist Lever when stowed.

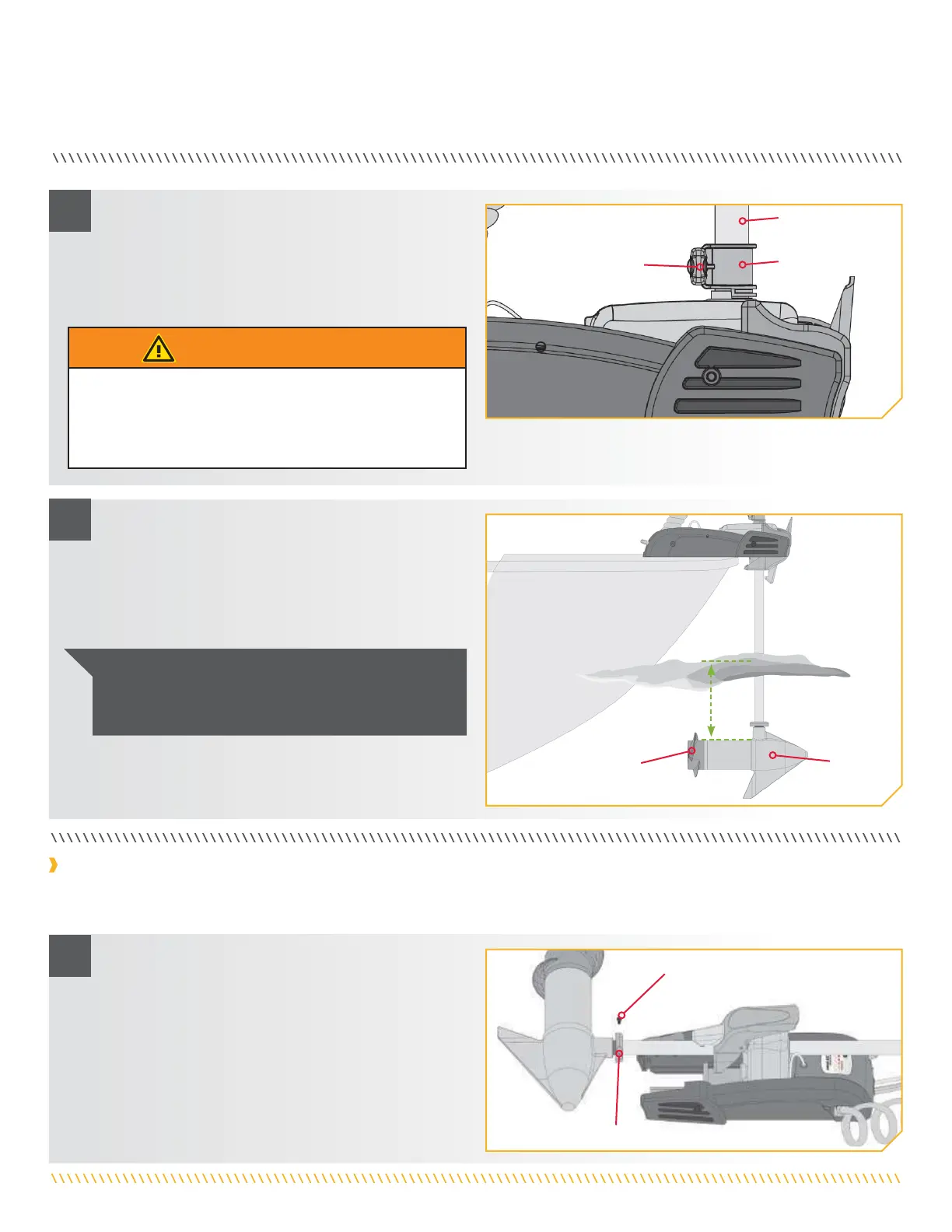

Adjusting the Latch Collar
Propeller
Motor
Depth Collar Knob
12" Minimum Depth12" Minimum Depth
Latch Collar
Depth Collar
Shaft
Screw
1
2
1
WARNING
The Control Head will create a pinch point if the Depth
Collar Knob is loosened and the Control Head slides to the
top of the Depth Collar. Grasp the Shaft and prevent it from
sliding all the way down to prevent the pinch point.
