INSTALLING THE RIPTIDE POWERDRIVE
• #3 and #2 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the
installation
It is recommended that the motor be mounted as close to the centerline of the boat as
possible. Make sure the area under the mounting location is clear to drill holes and install
nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of
the boat. The motor must not encounter any obstructions as it is lowered into the water
or raised into the boat when stowed and deployed. Consider a quick release or adapter
bracket with the installation of your motor. To view a list of accessories, please visit
minnkotamotors.com.

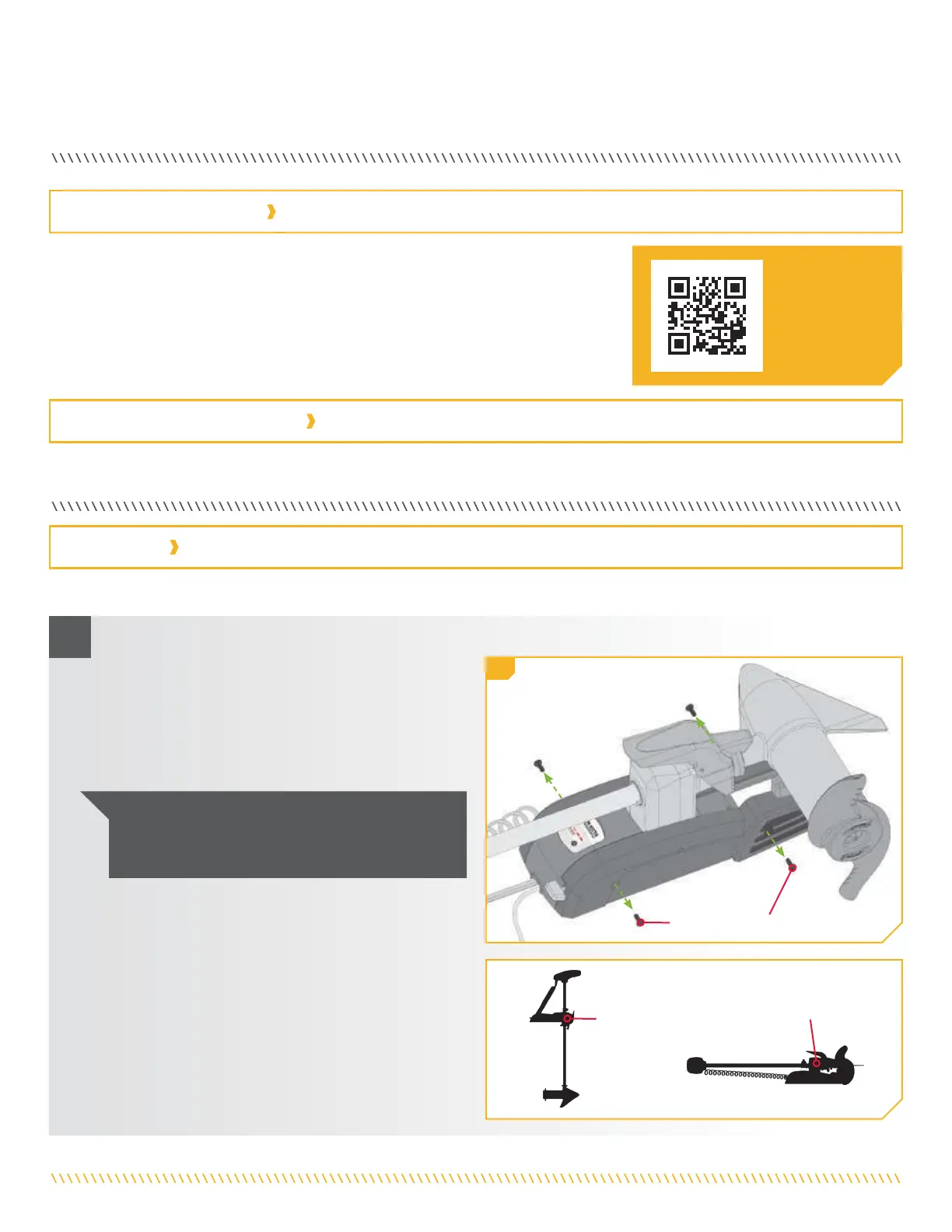

INSTALLING THE RIPTIDE POWERDRIVE
a. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor, as removed from the box, should be in the
stowed position.
b. Remove the four sideplate screws using a #3 or #2
Phillips screwdriver. Two of these screws will be
located on each side of the mount.
DeployedDeployed
StowedStowed
Sideplate ScrewSideplate Screw
NOTICE: This motor weighs approximately
30 lbs. We recommend having a second person help
with the installation.
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
View accessories
available for your
trolling motor at
minnkotamotors.com.
INSTALLATION
1
1b
To Next Page
