Item /
Assembly

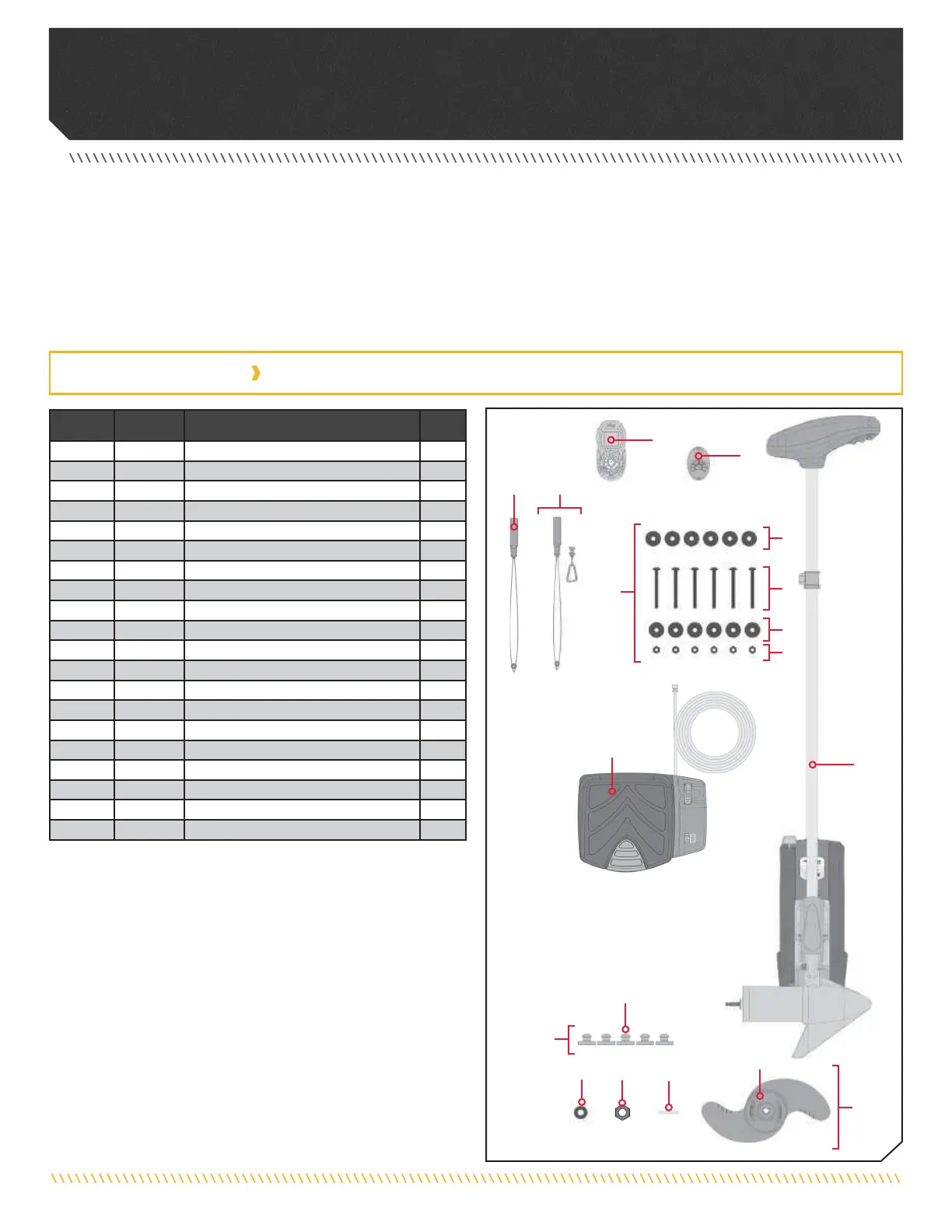

Part # Description Qty.
A 2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
1 2263462 BOLT-MOUNTING-1/4X2 W/STG 6
2 2261713 WASHER-1/4 6
3 2263103 NUT NYLOK 1/4-20 MTG 6
4 2301720 WASHER-MOUNTING RUBBER 6
U 1378131 PROP IND 2091160 (WDLS WDGII) 1
5 2091160 PROP-WW2 (3 5/8") REAMED 1
6 2151726 WASHER-5/16 SS 1
7 2053101 NUT-PROP,NYLOC (MED) 5/16 SS 1
8 2092600 PIN-DRIVE 1.06" LG SS 1
9
✖
MOTOR ASSEMBLY 1
10 2994728 FOOT PEDAL ASSEMBLY, PD 1
11 2390800 t LANYARD, REMOTE W/ CARABINER 1
12 2390801
l LANYARD, REMOTE *COPILOT* 1
13 2994075 t REMOTE ASY, IPILOT 1
14 2994020
l TRANSMTR, ASY, PD/AP COPLT 1
p
2397106 MANUAL, QUICK REF., iPILOT 1.6 1
p
2317123 MANUAL-INSTALL GUIDE, POWERDRIVE 1
Z 2994859 BAG ASY-TERROVA/V2,RUB.BUMPERS 1
17 2325110 PAD, FOOT PEDAL PD 5
2
3
6
8
5
9
14
13
4
1
11
A
U
p
Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
t Only available with models factory installed with i-Pilot or i-Pilot Link.
l Only available with models factory installed with CoPilot.
10
17
Z
12
7
8 | minnkotamotors.com
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLING THE RIPTIDE POWERDRIVE
Your new Riptide PowerDrive comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted
to the boat or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release
bracket, refer to the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate
your nearest dealer, visit
minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this
manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional
product support, please visit
minnkotamotors.com.
INSTALLATION PARTS LIST
To Next Page
