RGB500 Features
◊ accepts 3, 4, or 5 wire RGB video (sync-on-green, composite sync, or
separate horizontal and vertical sync), up to 500 MHz bandwidth
◊ BNC connectors for RGB signal inputs
NOTE: The audio connectors are not functional.
The RGB400 Buffered Amplifier Input Module may be installed in this projector, a
Marquee Signal Switcher or a Marquee Case/Power Supply. Connect three-, four-, or
five-wire RGB video signals of up to 400 MHz bandwidth, signals typically produced by
high-resolution computer or workstations. The buffering capability of the module enables
the incoming signal to be sent to a remote destination. Inputs are 75
S
terminated.
RGB400BA Features
◊ accepts 3, 4, or 5 wire RGB video (sync-on-green, composite sync, or
separate horizontal and vertical sync)
◊ BNC connectors for RGB signal inputs
◊ Buffered signals to a remote destination
NOTE: The audio connectors are not functional.
The RGB400 ALT Input Module may be installed in this projector, a Marquee Signal
Switcher, or a Marquee Case/Power Supply. The module receives analog RGB input
signals from computers or other RGB source devices. Video inputs are 75
S
terminated. Video outputs provide buffered loop-through to another display device.
RGB400ALT Features
◊ accepts 3, 4, or 5 wire RGB video (sync-on-green, composite sync, or
separate horizontal and vertical sync)
◊ BNC connectors for RGB signal inputs
◊ buffered loop-through video outputs
NOTE: The audio connectors are not functional.

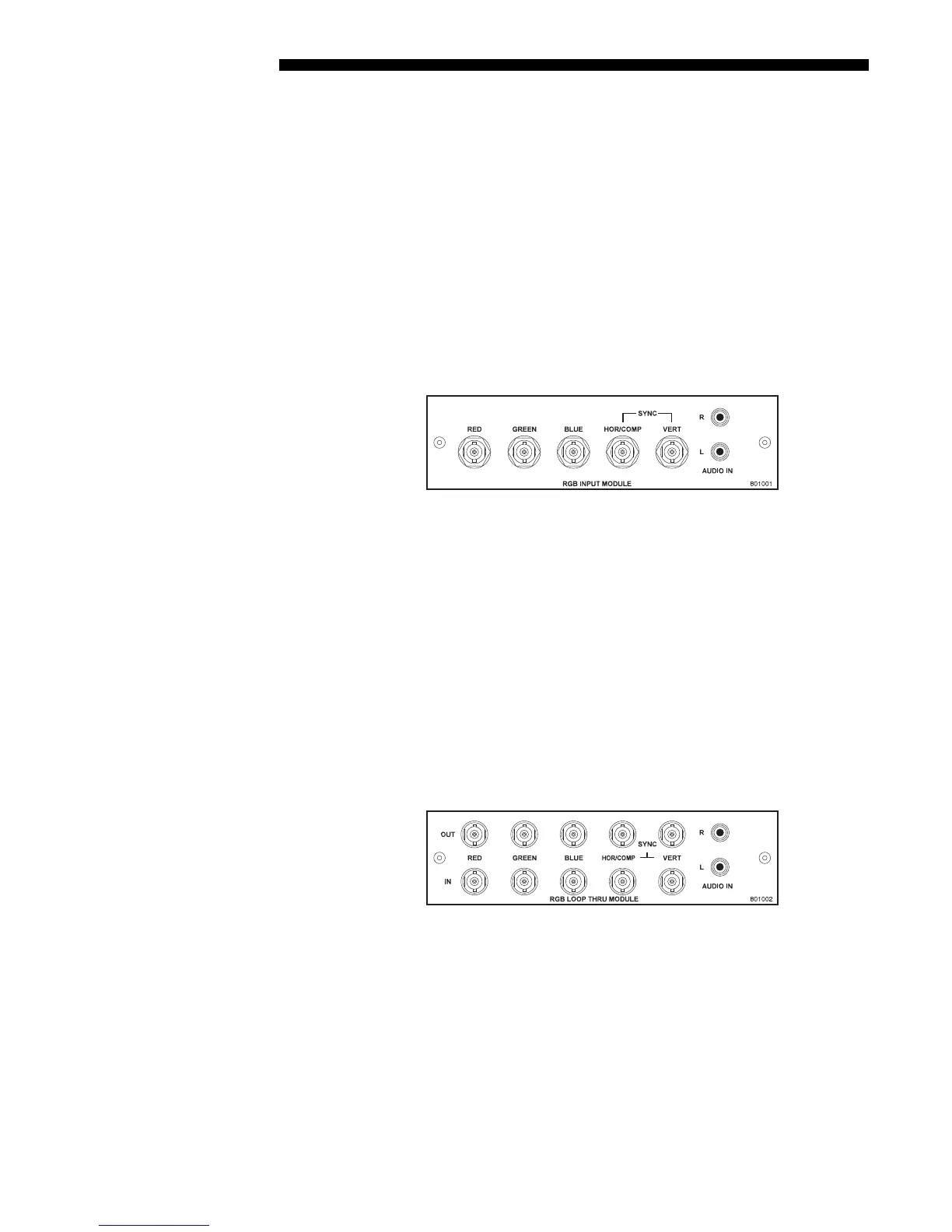

RGB400BA Input Module
'
38-804610-xx
RGB400 Active Loop-Thru
'
Input Module
38-804607-xx
