OPTIONAL INPUT MODULES
F-4
Mirag2000/4000/600000 User’s Manual
The DVI Input Module can be installed in the projector to display digital video input
signals conforming to the DVI (Digital Visual Interface) standard (single-channel).
Features
◊ Supports Digital Visual Interface (DVI) single-channel
◊ Supports VESA Extended Display Identification Data (EDID)
◊ Provides an active-loop-through using a DVI connector (conforming to
the DVI Specification)
The Digital HDTV Input Module can be installed in the projector at
INPUT 2
, where it
accepts a digital 4:2:2 component HDTV signal (YCbCr) via a single
SERIAL IN
BNC
connector. The signal can loop through the
SERIAL OUT BNC out to another device
(such as another projector). Inputs are 75
S
terminated.
Features
◊ accepts a variety of digital HDTV 4:2:2 component signals (YCbCr), and de-
serializes into a parallel 20-bit 4:2:2 component signal (10 bits each for Y
and CbCr)
◊ SMPTE 292M compatible
◊ Two data rates: 1.485 Gb/sec or 1.485/1.001 Gb/sec.
◊ provides both a
SERIAL IN and a SERIAL OUT BNC connector
◊ includes 4 status LEDs

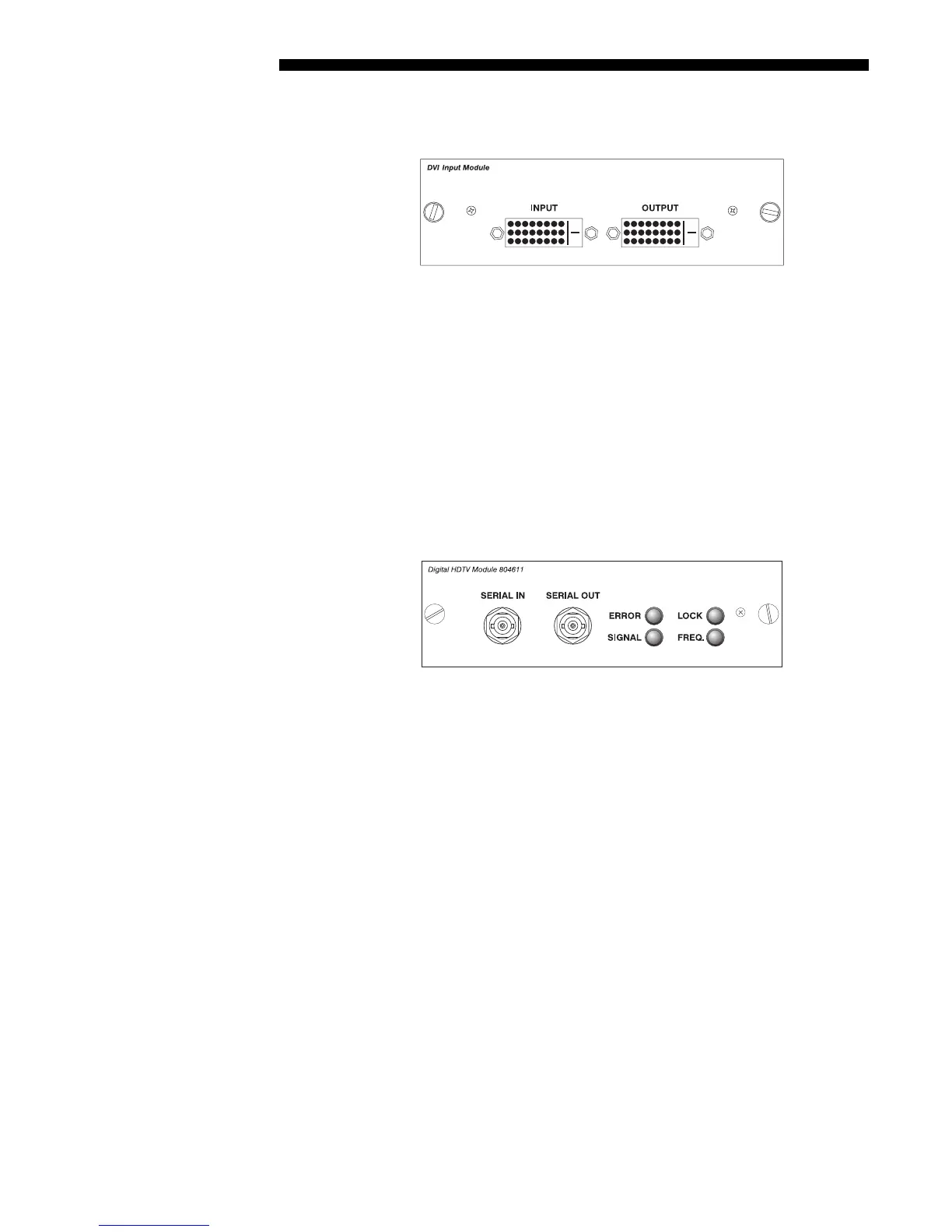

DVI Input Module
'
38-804635-xx
Digital HDTV Input Module
'
38-804611-xx
