3
The instrument uses two IEC (LR6/ HR6) AA-size batteries. The
use of alkaline batteries is recommended, but rechargeable NiMH
batteries can also be used.

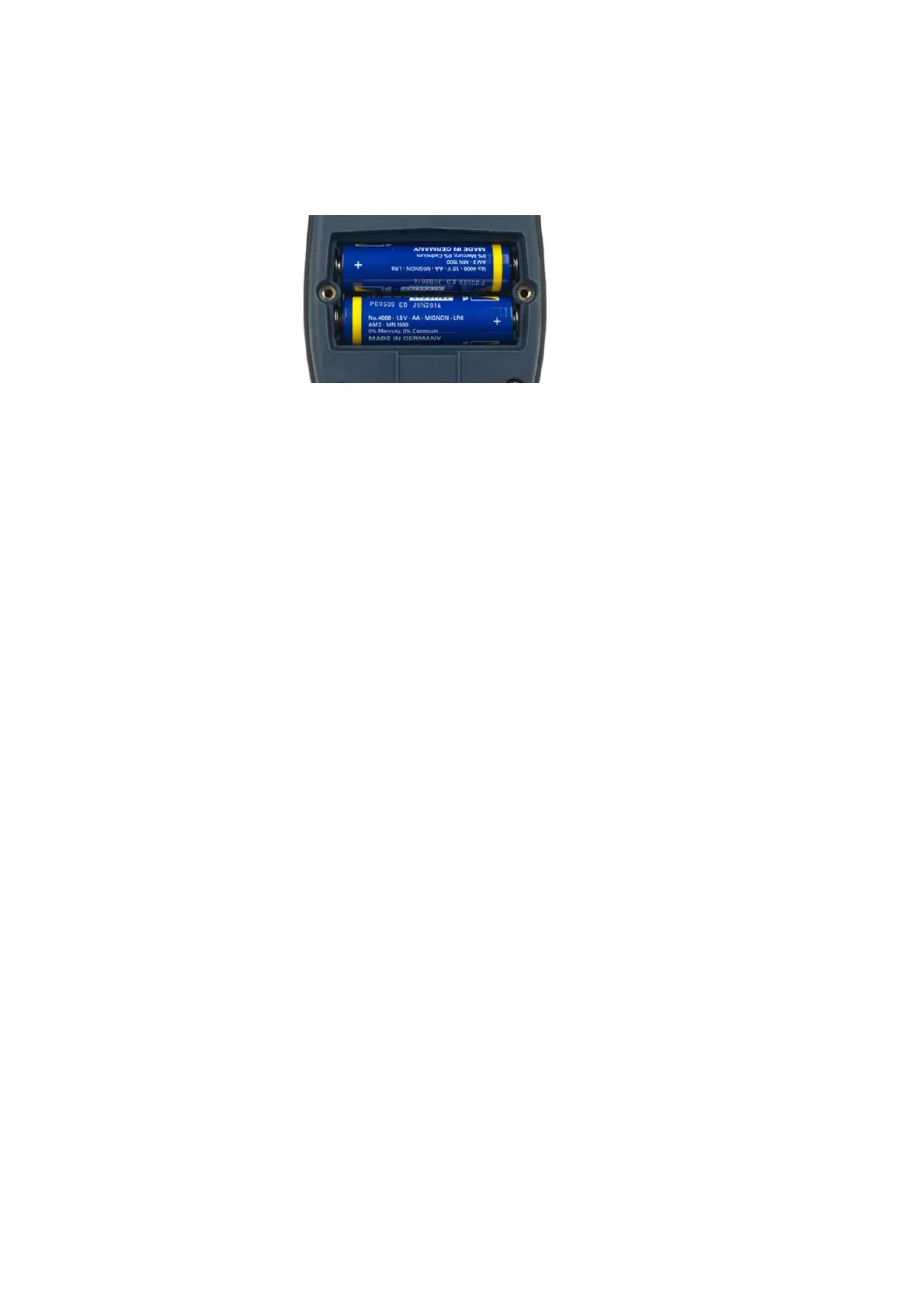

The polarity of the batteries can be seen in the picture below.
It is also engraved in the bottom of the battery compartment.
Insert the batteries and secure the battery cap.
Close the battery cover and tighten the screws first by using a
lower torque and then by increasing the force until the lid
becomes aligned with the bottom. The surface of the lid is
slightly above the instrument bottom surface.
The instrument is now ready for use. If the instrument is not
automatically switched on after replacing the batteries, turn the
instrument on by pressing the On/Off-button [
] until the
instrument starts (about 2s).
Note: The operation of the instrument is optimized for alkaline batteries.
The use of NiMH batteries is possible. When changing the battery type the
instrument settings must be changed with the Configuration Software for
RDS-31.
Note: When changing the batteries, also check that there is no dust or dirt
inside the battery compartment. Clean the compartment. Check the
condition of the rubber sealing and the connector cap. Replace the sealing
or the cap in case they have become damaged.
Note: Using excessive force while tightening the screws may damage the
threads of the instrument. Should this happen the case must be replaced.
Note: If the batteries have been totally depleted or the batteries are not
changed within one minute, the Internal Real Time Clock is reset and has to
be set again using the CSW-31 software.
