Keys, display, and menu guidance
No
.

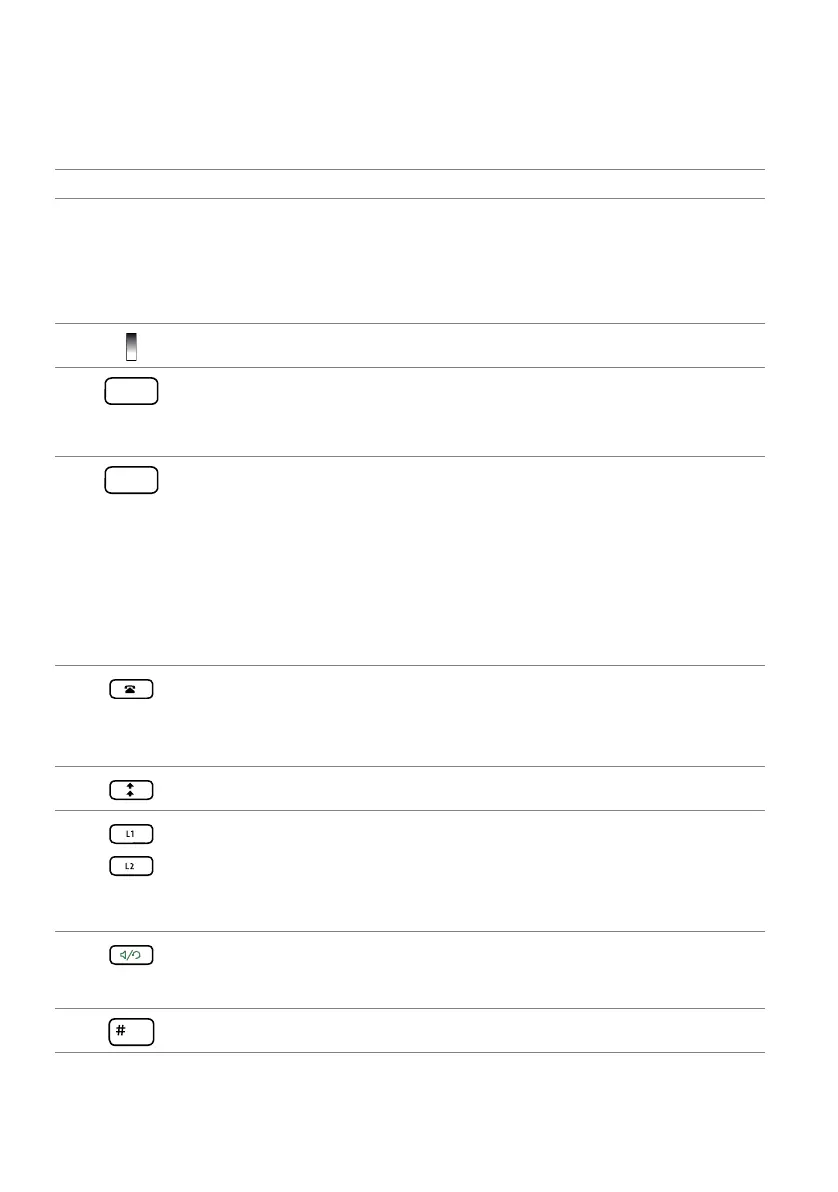

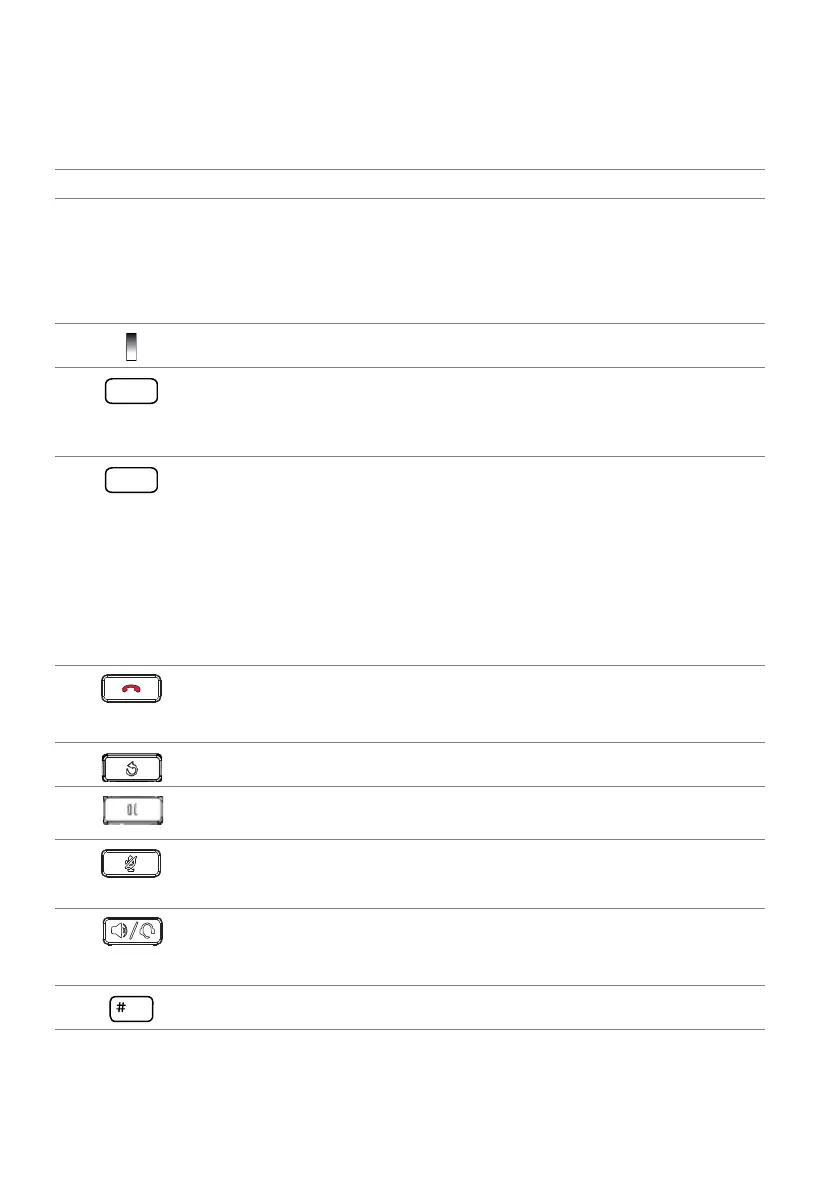

Key icon Key name Description and Usage
1 Bluetooth Handset
2Display Color screen:
• top left: line number, name
1)
.
• top right: status display (displays symbols).
• bottom right: status notifications.
• Middle: Display, depends on phone status.
3 Message LED Color and status signal a specific event.
4 Left softkeys T1-T48
(touch screen)
Twelve freely configurable keys on which a total of
48 functions, or call numbers, or busy lamp fields
can be configured. The color of the key indicates
the functional state.
5 Lower softkeys S1-S30
(touch screen)
Six freely configurable keys on which a total of 30
functions or call numbers can be configured.
Default functions are automatically set by the
MiVoice Office 400 communication system. You
can configure additional functions. If more than
six functions or call numbers are configured, the
sixth key is used to switch levels. The next levels
give access to functions or call numbers on keys
on or above key six. The color of the key indicates
the functional state.
6 End key
• Ending a call.
• Back to display in idle state.
• Exiting editor without changes.
7 Redial key Calling up the list of last dialed numbers.
8 Hold key • Holding an active call.
• Taking back a call from hold.
9 Mute key
Muting the microphone so that the caller cannot
hear you (the LED beside the key turns on when
the microphone is on mute).
10
Loudspeaker/headset
key with LED
• Activating/deactivating open listening.
• Activating/deactivating handset microphone.
• Activating/deactivating headset microphone.
11 Hash key Entering # or special characters.
