α
Simple Application Controller
Wiring 4
17
ENG
4.5 AC Input Wiring

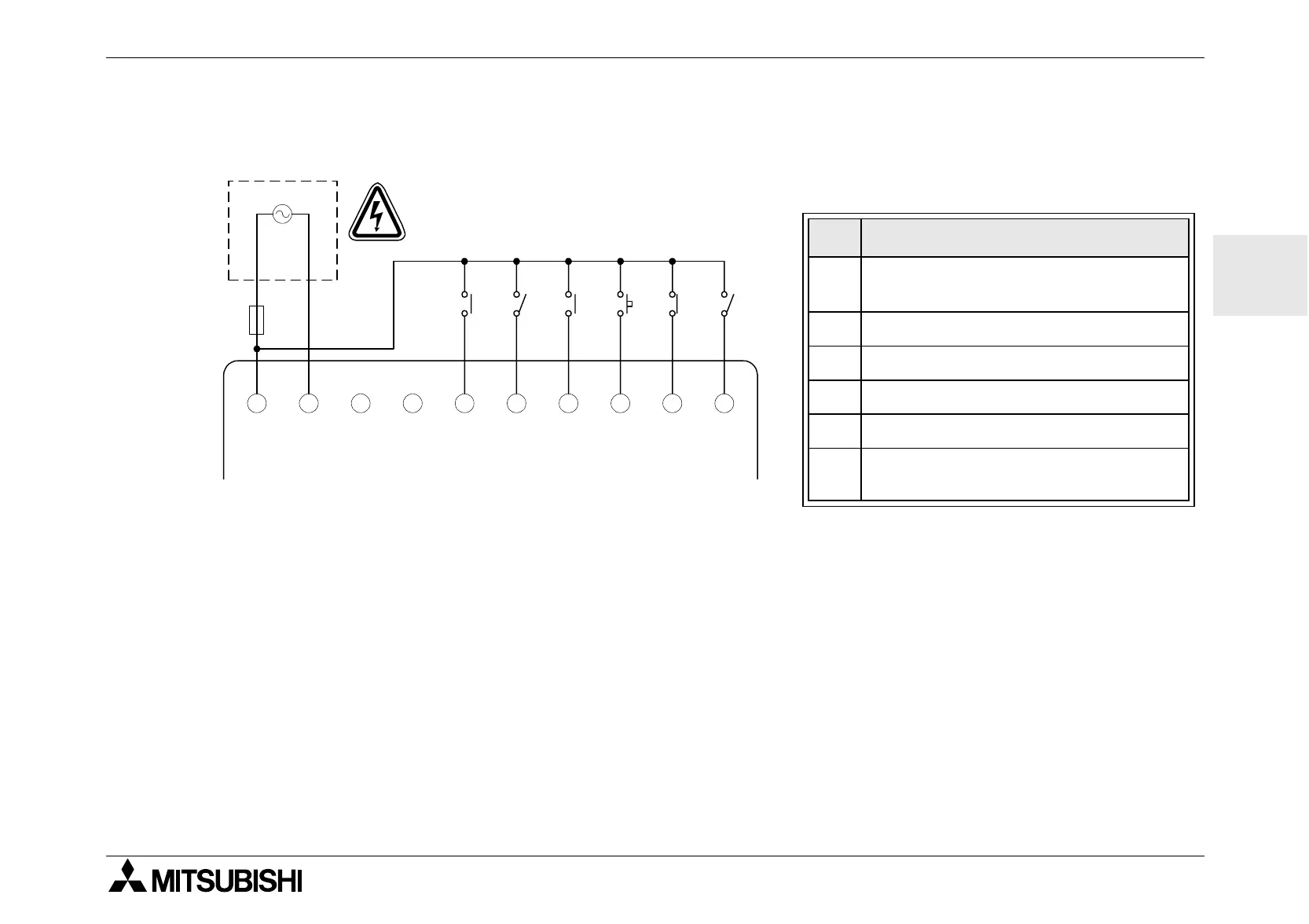

4.5.1 AC Input Wiring Diagram
Table 4.2: AC Input Typical Wiring
Ref. Item Description
1
AC Power Supply, 100 - 240V AC~
50 - 60 Hz
2 AC Power Terminals
3 Unused Terminals
4 Input Terminals
5 Digital Input Switches
6
Circuit Protection Device - Limit to
1.0 Amps
$
!
LN
"
#
%
LN 123
INPUTS
456
&
"L" and "N" terminals are not
reversible.
