Series Controllers - Getting Started 6
24
ENG

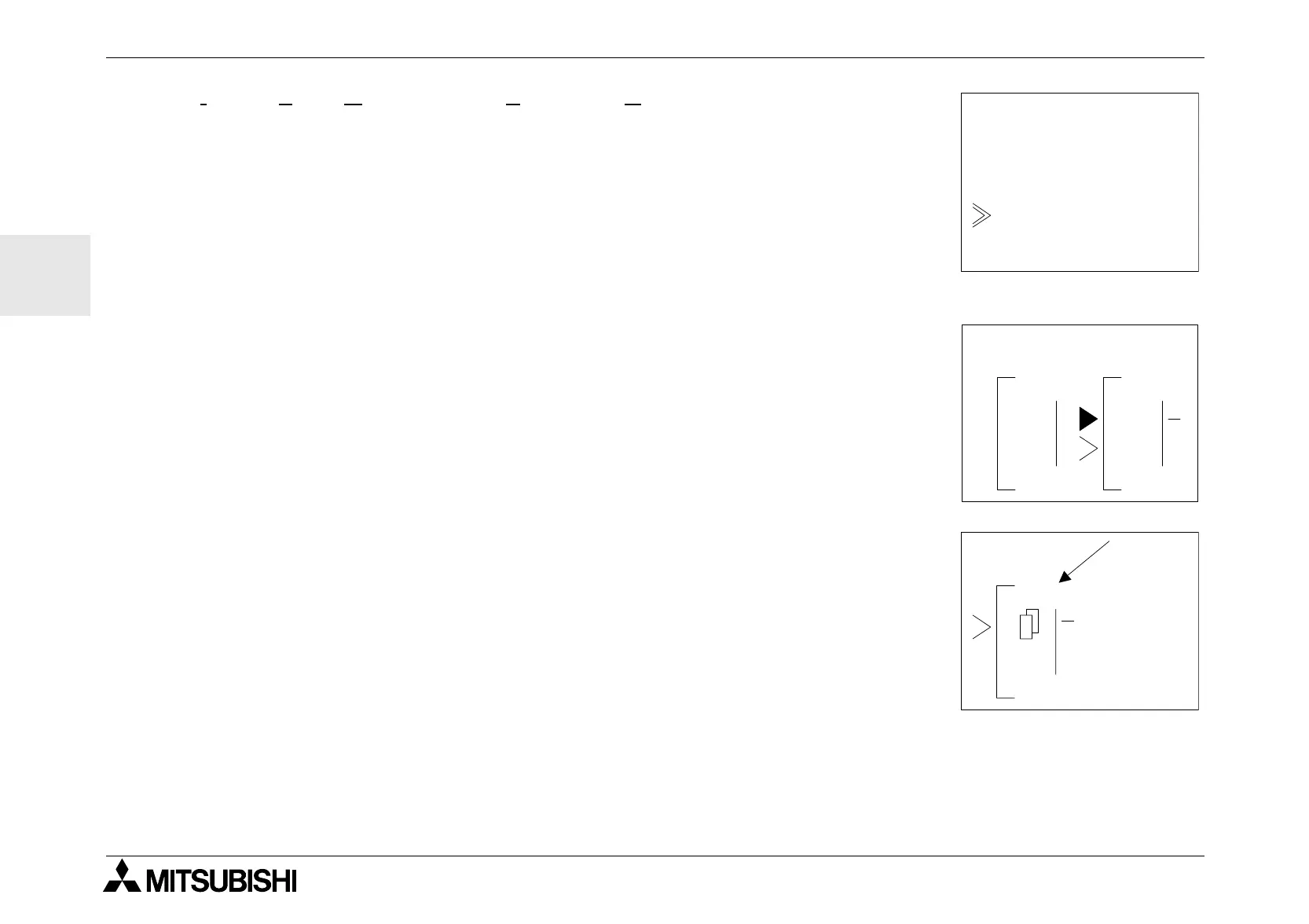

Inputs, Keys, M bits, Function Blocks, and Outputs will automatically show
whenever they can be connected. Function Blocks must be added during the
course of programming.
To add a new FB, select AddFB. The AddFB menu will show the list of twenty-
two function blocks (see function block descriptions at the end of this chapter).
Choose the appropriate block with the OK key.
Choose an open (“>”) input pin and enter OK. The “connect” prompt should
disappear from the screen - the two function blocks are now connected!
Output pins can be connected to multiple input pins but input pins can have
only one connection.
6.2 Accessing Blocks
When the FB number is flashing, use the “+” and “-” keys to scroll through adja-
cently numbered blocks.
Ex. Input number 03 flashing on the display. Pressing the “+” key will move the
screen to Input number 04. Inputs, Outputs, Keys, and Memory bits can be
accessed in this manner.
Function Blocks will perform the same operation but will scroll only through the
Function Blocks that have been added to the program.
Hourmeter
Pulse
F B S e l e c t
Time S W
