DISASSEMBLY PROCEDURE
PHOTOS
98

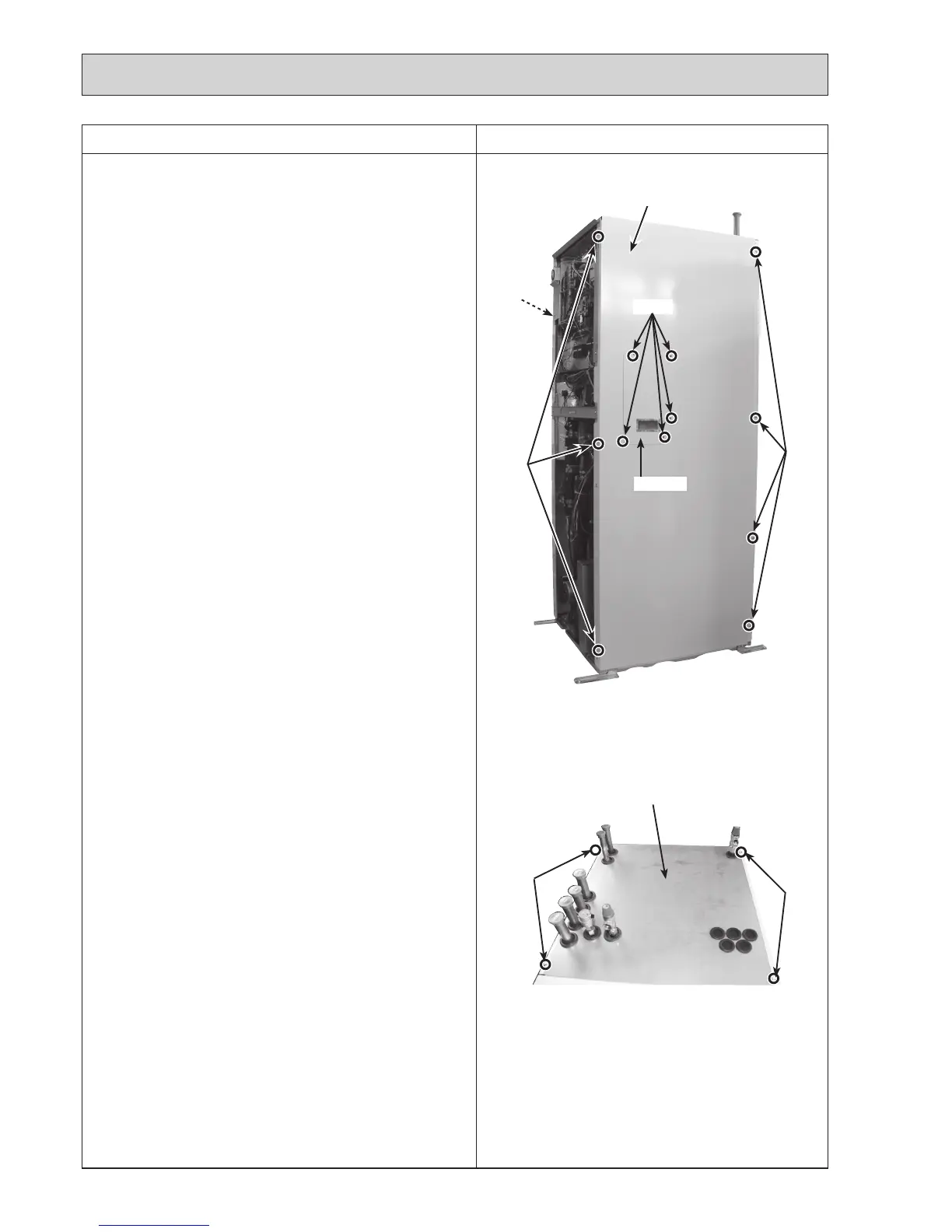

Photo 21-1
21. How to remove the side panels
(1) Remove the front panel (Refer to Procedure 1).
(2)Removethe4screwsonthetoppanel,andremovethe
2screwsthatholdthetoppanelontothebackpanel.
(Photos 21-2 and 22-1)
(3)Removethesidepanel(right)byremovingthe7screws
fixingthesidepanel(right).(Photo21-1)
(4)Removethesidepanel(left)byremovingthe8screws
fixingthesidepanel(left).(4screwsonthefrontside
and4screwsonthebackside)
<V/M plate (EH*T20*-MHCW models only)>
(1)RemovetheV/Mplatebyremoving5screwsfixingon
thesidepanel(Right).(Photo21-1)
Screws
Sidepanel(Right)
Screws
Side panel
(Left)
Screws
V/M plate
Photo 21-2
Screws
Screws
Top panel
OCH570C
