Mitsubishi EX240U User Manual

EN-11
ENGLISH
Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

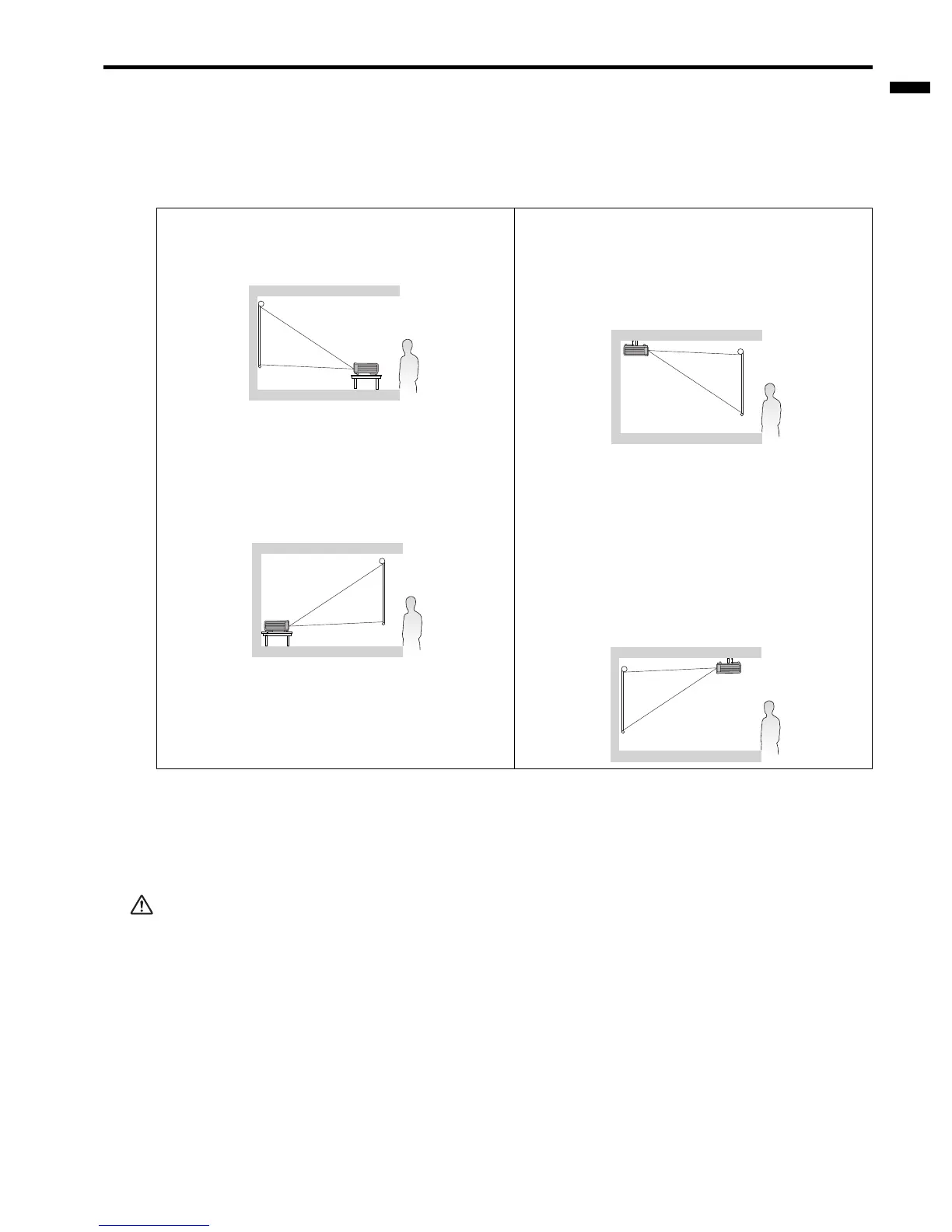

Your projector is designed to be installed in one of the possible installation locations:
For ceiling mounting, you need the ceiling mount kit designed for this projector. Ask a specialist for installation.For
details, consult your dealer.
• The warranty on this projector does not cover any damage caused by use of any non-recommended ceiling mount
kit or installation of the ceiling mount kit in an improper location.
• When the projector is mounted on the ceiling, images may appear darker than those projected in the case of
tabletop mounting. This isn’t a product malfunction.
Be sure to use this projector at an altitude of less than 1500 meters.
1. Front Table
Select this location with the projector placed near the
floor in front of the screen. This is the most common way
to position the projector for quick setup and portability.
2. Rear Table
Select this location with the projector placed near the
floor behind the screen.
Note that a special rear projection screen is required.
Set Rear Table in the SYSTEM SETUP: Basic >
Projector Position menu after you turn the projector on.
3. Rear Ceiling
Select this location with the projector suspended upside-
down from the ceiling behind the screen.
Note that a special rear projection screen and qualified
projector ceiling mount kit are required for this
installation location.
Set Rear Ceiling in the SYSTEM SETUP: Basic >
Projector Position menu after you turn the projector on.
4. Front Ceiling
Select this location with the projector suspended upside-
down from the ceiling in front of the screen.
Purchase a qualified projector ceiling mount kit from
your dealer to mount your projector on the ceiling.
Set Front Ceiling in the SYSTEM SETUP: Basic >
Projector Position menu after you turn the projector on.

Mitsubishi EX240U Specifications

General

Matrix size	0.55 \
Projection distance	1.7 - 10.5 m
Vertical scan range	48 - 85 Hz
Horizontal scan range	31 - 92 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 300 \
Projector native resolution	XGA (1024x768)
Power LED	Yes
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	282 x 229 x 94 mm
Connectivity technology	Wired
Maximum digital resolution	786432 pixels
Focus	Manual
Throw ratio	1.9 - 2.1:1
Focal length range	- mm
Noise level	34 dB
Noise level (economic mode)	29 dB
Dot clock scanning frequency	170 MHz
Lamp power	185 W
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1200 x 1600, 1024 x 768 (XGA), 640 x 480 (VGA)
RMS rated power	2 W
Placement	Ceiling
Product type	Standard throw projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	315 W
Cables included	VGA

Weight and Dimensions

Weight	2400 g
