Connecting a monitor
If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the MONITOR
OUT signal output jack on the projector to an external monitor following the instructions below:
To connect the projector to a monitor:
1. Connect the projector to a computer as described in "Connecting a computer" on page 16.

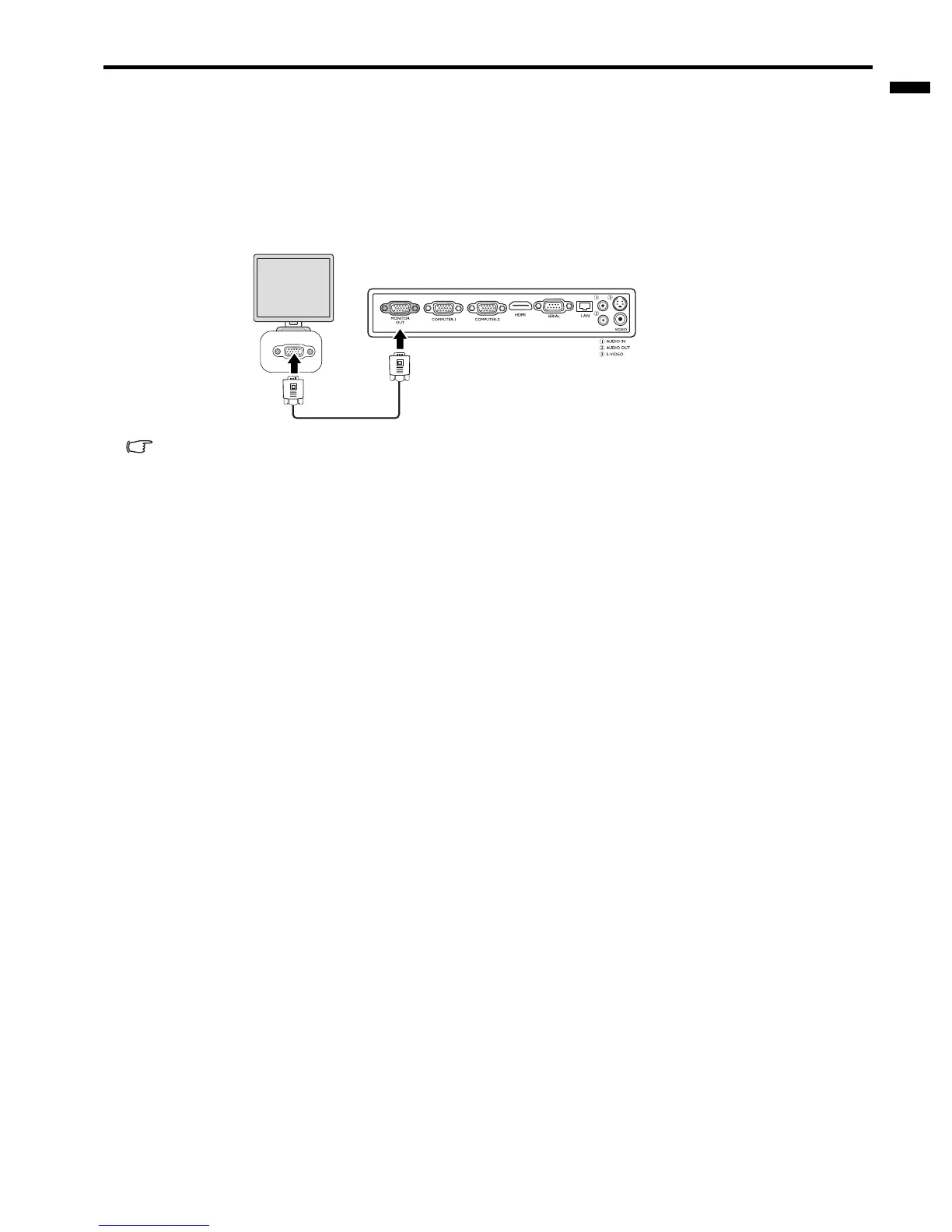

2. Connect the RGB cable from the monitor to the MONITOR OUT jack of the projector.
• Once the Standby Monitor Out function is on, the projector can output a VGA signal when it is in standby mode and an
appropriate D-Sub input is made to the COMPUTER-1 jack.
• Images may not be displayed correctly depending on the type of the input signal. See the instruction manual of the
monitor.
• Images may not be displayed correctly depending on the type of the cable.
Connecting Video source devices
You can connect your projector to various Video source devices that provide any one of the following output sockets:
• HDMI
• Component Video
•S-Video
• Video (composite)
You need only connect the projector to a Video source device using just one of the above connecting methods,
however each provides a different level of video quality. The method you choose will most likely depend upon the
availability of matching terminals on both the projector and the Video source device as described below:
HDMI (High-Definition Multimedia Interface) supports uncompressed video data transmission between compatible
devices like DTV tuners, DVD players and displays over a single cable. It provides pure digital viewing experience.
See "Connecting an HDMI device" on page 18" for how to connect the projector to an HDMI device.
Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be
your connection method of choice in preference to (composite) Video. See "Connecting a Component Video source
device" on page 18 for how to connect the projector to a component video device.
If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use
the S-Video option. See "Connecting an S-Video source device" on page 19 for how to connect the projector to an S-
Video device.
If you have only composite Video output terminals on your Video source device, connect to Composite Video input.
See "Connecting a composite Video source device" on page 20 for how to connect the projector to a composite Video
device.
Notebook or desktop computer
RGB cable

Mitsubishi EX240U Specifications

General

Matrix size	0.55 \
Projection distance	1.7 - 10.5 m
Vertical scan range	48 - 85 Hz
Horizontal scan range	31 - 92 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 300 \
Projector native resolution	XGA (1024x768)
Power LED	Yes
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	282 x 229 x 94 mm
Connectivity technology	Wired
Maximum digital resolution	786432 pixels
Focus	Manual
Throw ratio	1.9 - 2.1:1
Focal length range	- mm
Noise level	34 dB
Noise level (economic mode)	29 dB
Dot clock scanning frequency	170 MHz
Lamp power	185 W
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1200 x 1600, 1024 x 768 (XGA), 640 x 480 (VGA)
RMS rated power	2 W
Placement	Ceiling
Product type	Standard throw projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	315 W
Cables included	VGA

Weight and Dimensions

Weight	2400 g
