Mitsubishi EX240U User Manual

EN-8

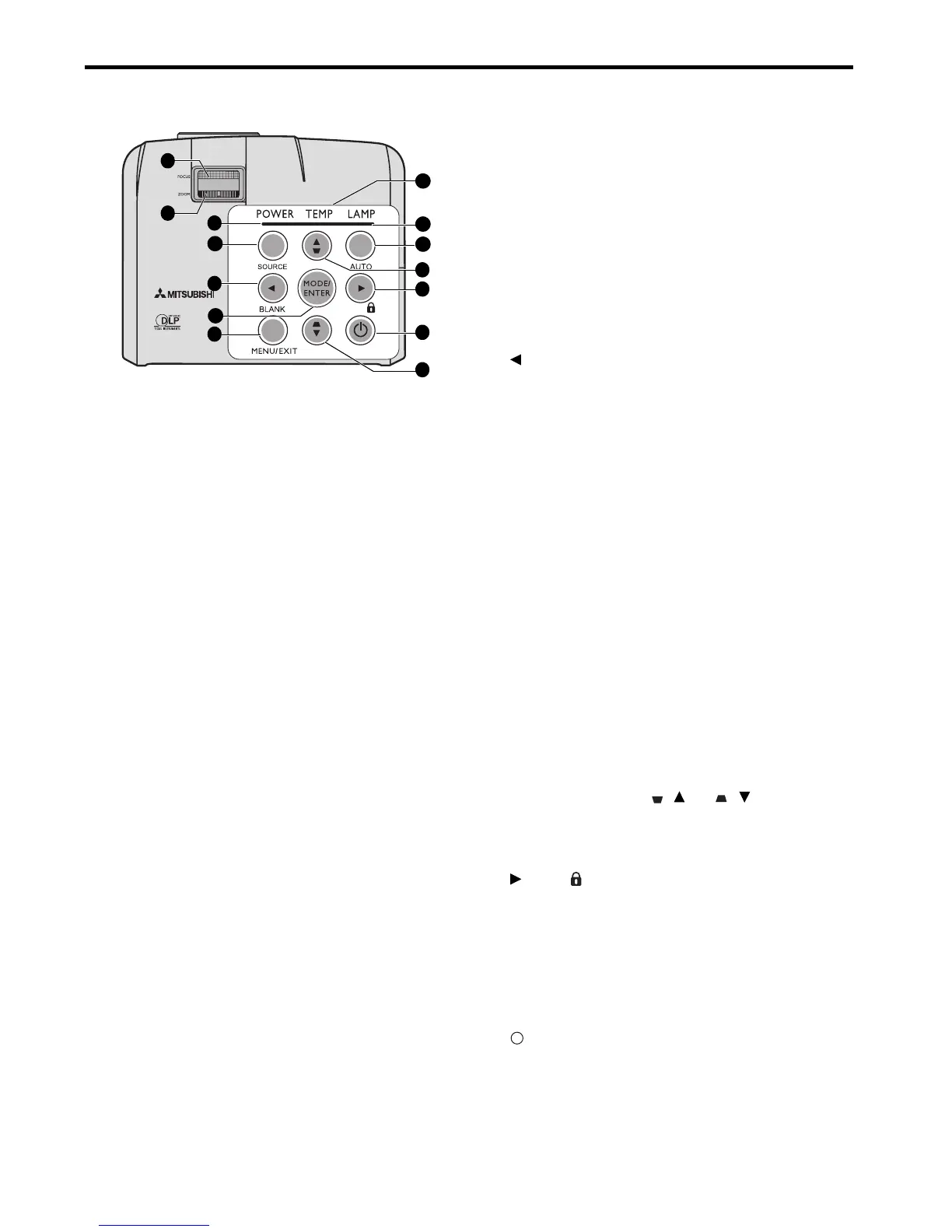

Controls and functions
Projector
1. Focus ring
Adjusts the focus of the projected image. See "Fine-
tuning the image size and clarity" on page 25 for details.
2. Zoom ring
Adjusts the size of the image. See "Fine-tuning the
image size and clarity" on page 25 for details.
3. POWER indicator light
Lights up or flashes when the projector is under
operation. See "Indicators" on page 53 for details.
4. SOURCE
Displays the source selection bar. See "Switching input
signal" on page 24 for details.
5. Left/BLANK
Used to hide the screen picture. See "Hiding the image"
on page 33 for details.
6. MODE/ENTER
Selects an available picture setup mode. See "Selecting a
picture mode" on page 29 for details.
Enacts the selected On-Screen Display (OSD) menu
item.
7. MENU/EXIT
Turns on the On-Screen Display (OSD) menu. Goes
back to previous OSD menu, exits and saves menu
settings. See "Using the menus" on page 22 for details.
8. TEMPerature indicator light
Lights up red if the projector's temperature becomes too
high. See "Indicators" on page 53 for details.
9. LAMP indicator light
Indicates the status of the lamp. Lights up or flashes
when the lamp has developed a problem. See
"Indicators" on page 53 for details.
10. AUTO
Automatically determines the best picture timings for the
displayed image. See "Auto-adjusting the image" on
page 25 for details.
11. Keystone/Arrow keys ( / Up, / Down)
Manually corrects distorted images resulting from an
angled projection. See "Correcting keystone" on page 26
for details.
12. Right/
//
/
Activates panel key lock. See "Locking control keys" on
page 33 for details.
When the On-Screen Display (OSD) menu is activated,
the #5, #11, and #12 keys are used as directional arrows
to select the desired menu items and to make
adjustments. See "Using the menus" on page 22 for
details.
13. POWER
Toggles the projector between standby mode and on. See
"Starting up the projector" on page 21 and "Shutting
down the projector" on page 34 for details.
4
5
6
7
1
2
9
10
11
12
13
8
3
11
I
I

Mitsubishi EX240U Specifications

General

Matrix size	0.55 \
Projection distance	1.7 - 10.5 m
Vertical scan range	48 - 85 Hz
Horizontal scan range	31 - 92 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 300 \
Projector native resolution	XGA (1024x768)
Power LED	Yes
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	282 x 229 x 94 mm
Connectivity technology	Wired
Maximum digital resolution	786432 pixels
Focus	Manual
Throw ratio	1.9 - 2.1:1
Focal length range	- mm
Noise level	34 dB
Noise level (economic mode)	29 dB
Dot clock scanning frequency	170 MHz
Lamp power	185 W
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1200 x 1600, 1024 x 768 (XGA), 640 x 480 (VGA)
RMS rated power	2 W
Placement	Ceiling
Product type	Standard throw projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	315 W
Cables included	VGA

Weight and Dimensions

Weight	2400 g
