Mitsubishi EX240U User Manual

EN-56

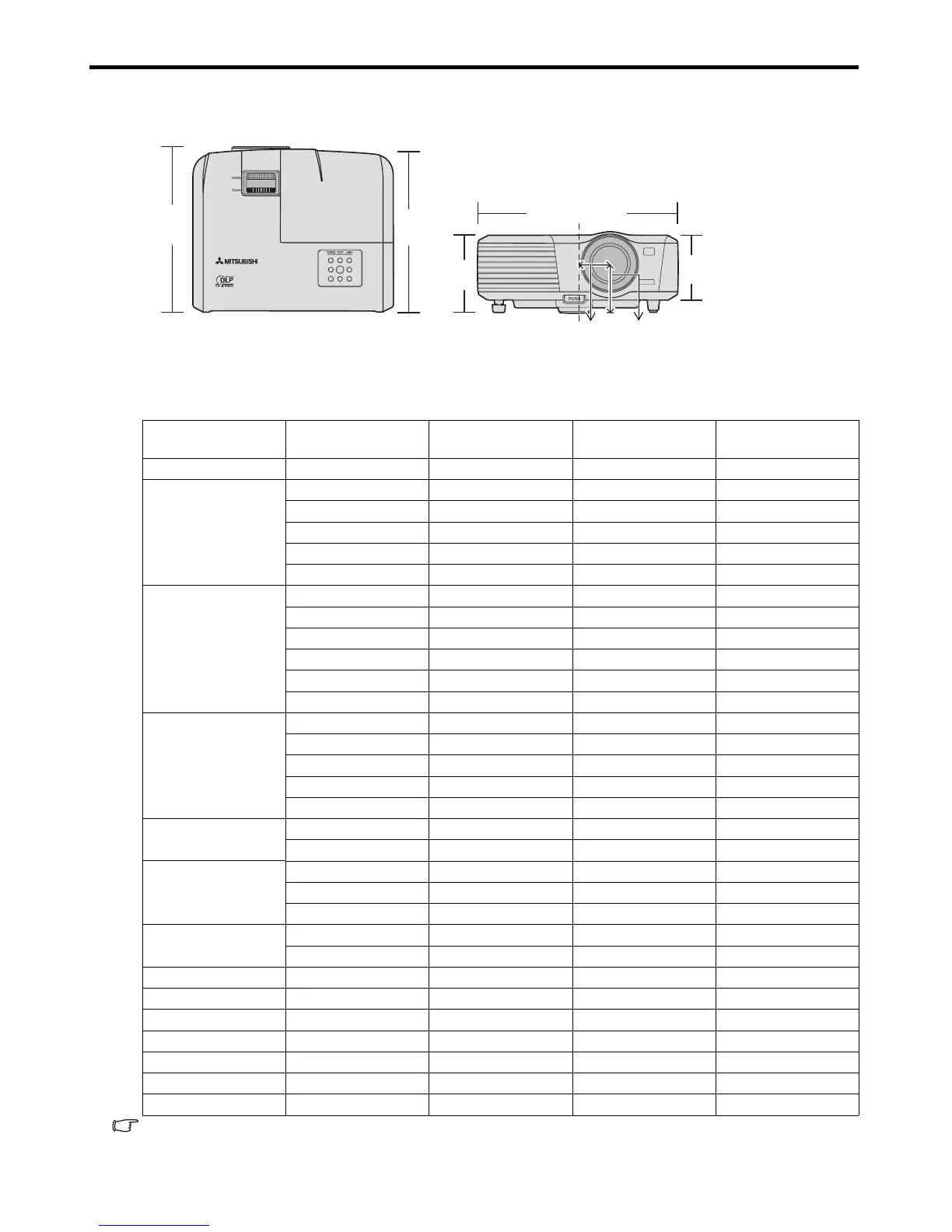

Dimensions
282 mm (W) x 94 mm (H) x 229 mm (D) (Not including protrusion)
Timing chart
Supported timing for PC input
* The projector only supports the timing (720 x 400) with 5 lines (R, G, B, H, V).
* EX240U dose not support the timing of WXGA_120.
282
233
110
50
68.3
Tolerance:±2mm
229
94
Resolution Mode
Vertical Frequency
(Hz)
Horizontal
Frequency (kHz)
Clock (MHz)
*720 x 400 720 x 400_70 70.087 31.469 28.3221
640 x 480
VGA_60 59.940 31.469 25.175
VGA_72 72.809 37.861 31.500
VGA_75 75.000 37.500 31.500
VGA_85 85.008 43.269 36.000
VGA_120 119.518 61.910 52.500
800 x 600
SVGA_60 60.317 37.879 40.000
SVGA_72 72.188 48.077 50.000
SVGA_75 75.000 46.875 49.500
SVGA_85 85.061 53.674 56.250
SVGA_120 119.854 77.425 83.000
SVGA_120 119.972 76.302 73.250
1024 x 768
XGA_60 60.004 48.363 65.000
XGA_70 70.069 56.476 75.000
XGA_75 75.029 60.023 78.750
XGA_85 84.997 68.667 94.500
XGA_120 119.804 98.958 137.750
1280 x 800
WXGA_60 59.81 49.702 83.500
WXGA_120 119.9 101.562 146.250
1280 x 1024
SXGA_60 60.020 63.981 108.000
SXGA_75 75.025 79.976 135.000
SXGA_85 85.024 91.146 157.500
1280 x 960
1280 x 960_60 60.000 60.000 108
1280 x 960_85 85.002 85.938 148.500
1440 x 900 WXGA+_60 59.887 55.935 106.500
1400 x 1050 SXGA+_60 59.978 65.317 121.750
1600 x 1200 UXGA 60.000 75.000 162.000
640 x 480@67Hz MAC13 66.667 35.000 30.240
832 x 624@75Hz MAC16 74.546 49.722 57.280
1024 x 768@75Hz MAC19 75.020 60.241 80.000
1152 x 870@75Hz MAC21 75.06 68.68 100.00
*

Mitsubishi EX240U Specifications

General

Matrix size	0.55 \
Projection distance	1.7 - 10.5 m
Vertical scan range	48 - 85 Hz
Horizontal scan range	31 - 92 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 300 \
Projector native resolution	XGA (1024x768)
Power LED	Yes
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	282 x 229 x 94 mm
Connectivity technology	Wired
Maximum digital resolution	786432 pixels
Focus	Manual
Throw ratio	1.9 - 2.1:1
Focal length range	- mm
Noise level	34 dB
Noise level (economic mode)	29 dB
Dot clock scanning frequency	170 MHz
Lamp power	185 W
Light source type	Lamp
Lamp power (economic mode)	160 W
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1200 x 1600, 1024 x 768 (XGA), 640 x 480 (VGA)
RMS rated power	2 W
Placement	Ceiling
Product type	Standard throw projector
Product color	White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	315 W
Cables included	VGA

Weight and Dimensions

Weight	2400 g
