8 Setting positioning
The positioning setting function is available in all FX3G/FX3U/FX3GC PLCs and FX3UC PLCs Ver. 2.20 or later.
1. Click "Positioning" tab.
"Positioning" tab is displayed when a check mark is put next to "Positioning" in the "Memory
capacity" tab.
2. Set the positioning constants in TBL (FNC152) instruction.
→ For TBL (FNC152) instruction, refer to the Positioning Control Manual.

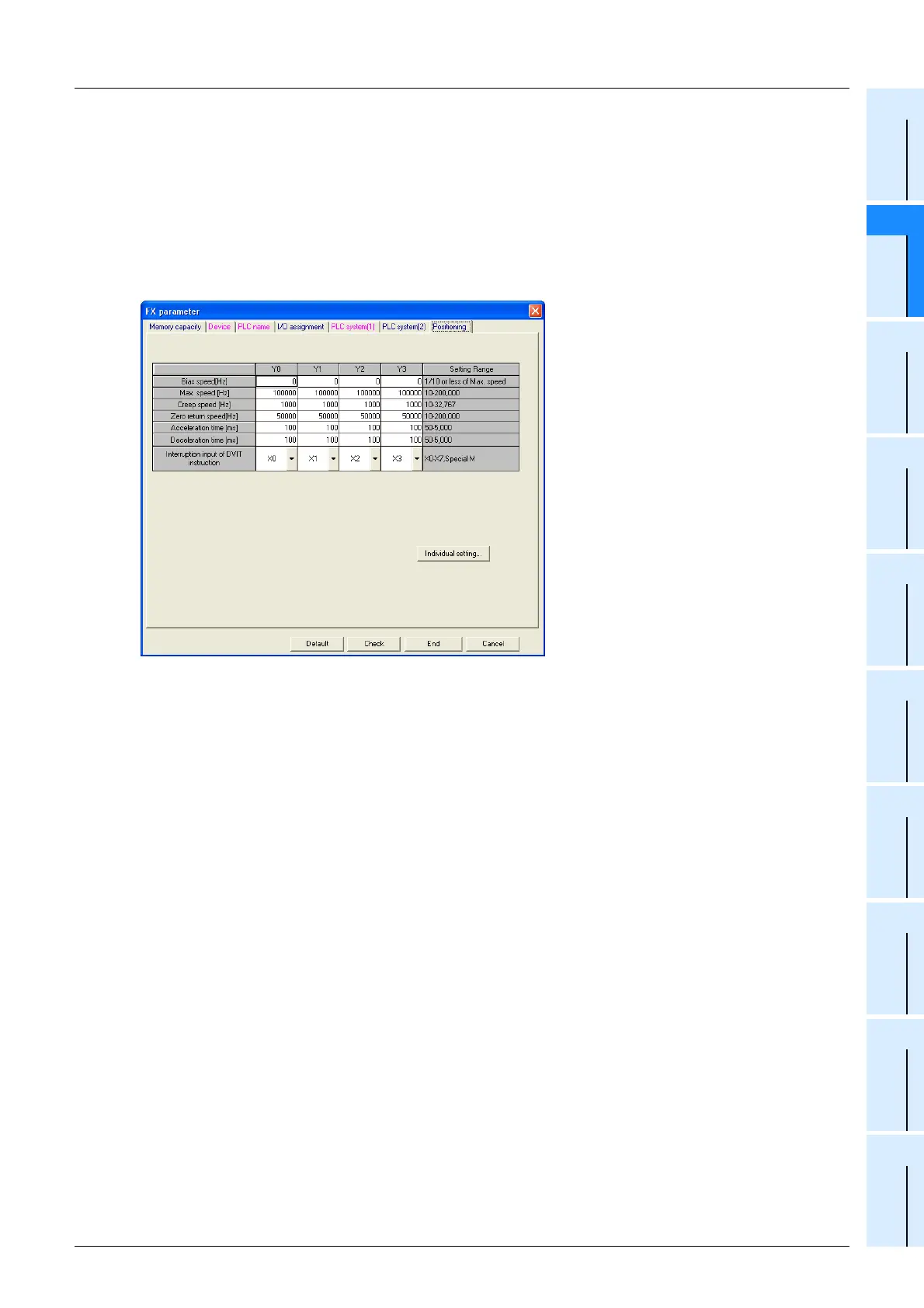

This example shows a window in
FX3U/FX3UC PLCs.
