Mitsubishi FX3G Series Programming Manual

80

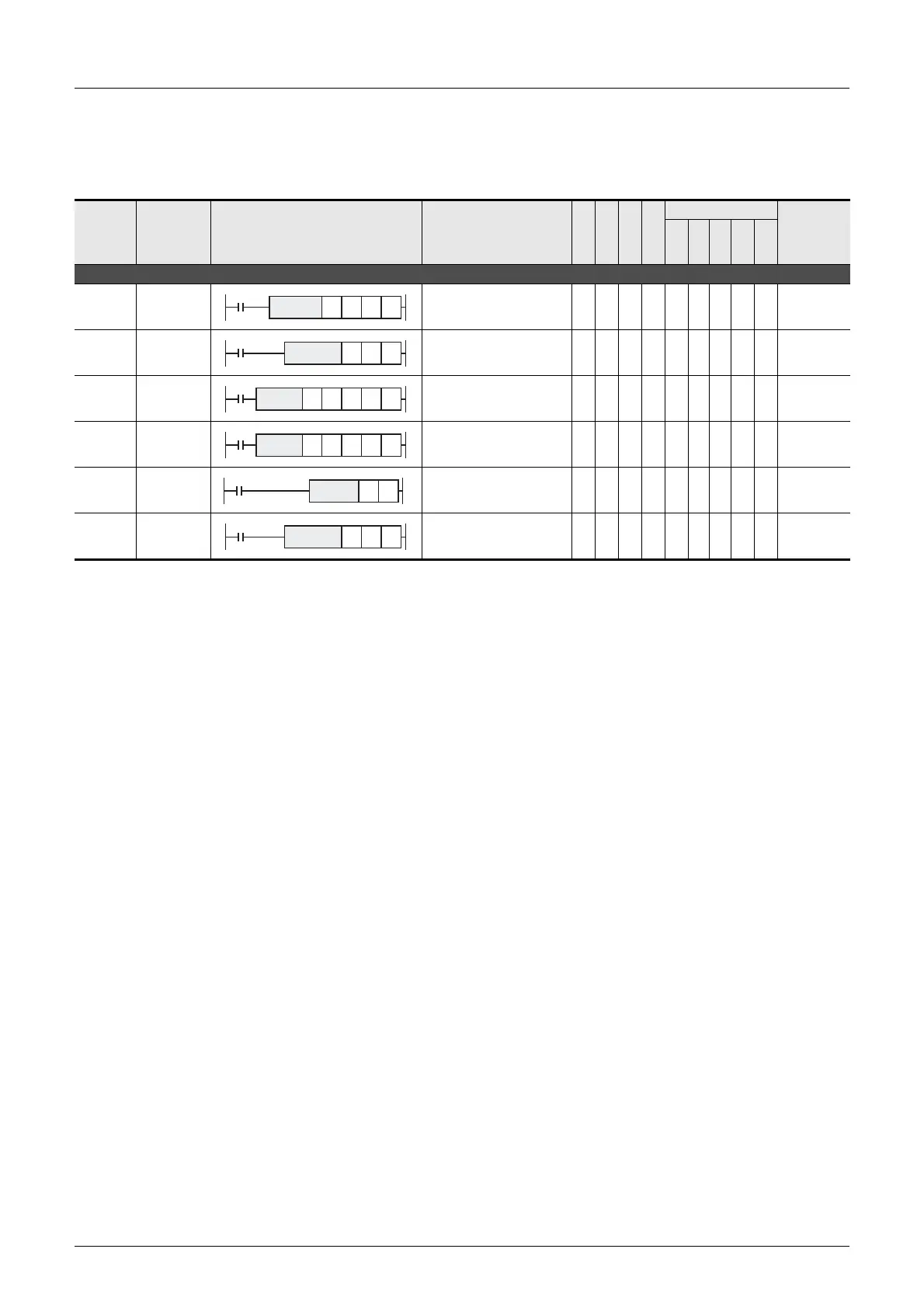

FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
3 Instruction List
3.3 Applied Instructions ... in Ascending Order of FNC Number
FX3U-CF-ADP Applied Instructions
300 FLCRT File create / check – – *7 *7 – – – – –
Section
34.1
301 FLDEL File delete / CF card format – – *7 *7 – – – – –
Section
34.2
302 FLWR Data write – – *7 *7 – – – – –
Section
34.3
303 FLRD Data read – – *7 *7 – – – – –
Section
34.4
304 FLCMD FX3U-CF-ADP command – – *7 *7 – – – – –
Section
34.5
305 FLSTRD FX3U-CF-ADP status read – – *7 *7 – – – – –
Section
34.6
*1: The instruction is provided in the FX 2N /FX 2NC Series Ver. 3.00 or later. *6: The instruction is provided in the FX 3G Series Ver. 1.10 or later.
*2: The function is changed in the FX 3UC Series Ver. 1.30 or later. *7: The instruction is provided in the FX 3U /FX 3UC Series Ver. 2.61 or later.
*3: The instruction is provided in the FX
3UC Series Ver. 1.30 or later. *8: The instruction is provided in the FX 3U /FX 3UC Series Ver. 2.70 or later.
*4: The function is changed in the FX
3UC Series Ver. 2.20 or later. *9: The instruction is provided in the FX 3G Series Ver. 1.40 or later.
*5: The instruction is provided in the FX 3UC Series Ver. 2.20 or later.
FNC No. Mnemonic Symbol Function
FX3G
FX3GC
FX3U
FX3UC
Applicable PLC
Reference
FX1S
FX1N FX2N
FX1NC FX2NC
nFLCRT S3S2S1
nFLDEL S2S1
n
FLWR DS3S2S1
n
FLRD D2D1S2S1
nSFLCMD
nFLSTRD DS

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
