8.2 Keyin function
• Use the keyin function to protect the set values from being changed by mistaken operation.
• In the list of setting items, the items marked with o in the "Keyin" column can be set the keyin function.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Refer to Sec. 12.3.
[1] keyin method
• Display the corresponding item on the LCD display(5), and then press and hold the keyin
key(1) for 5 seconds or more.
• When the keyin function is activated, the keyin indicator LED(2) will light, but the under-
cursor positioned at the last digit of the set value that indicates the value can be changed will
disappear.
[2] How to cancel keyin function
• Press and hold the keyin key(1) for 5 seconds or more again to cancel the keyin function.
When canceled, the keyin indicator LED(2) will extinguish.
8.3 Memory cassette
• Excluding the external input signal data, all the set data can be written, read, and compared between the LE-
30CTN tension controller and the memory cassette.
8.3.1 Applicable memory cassette

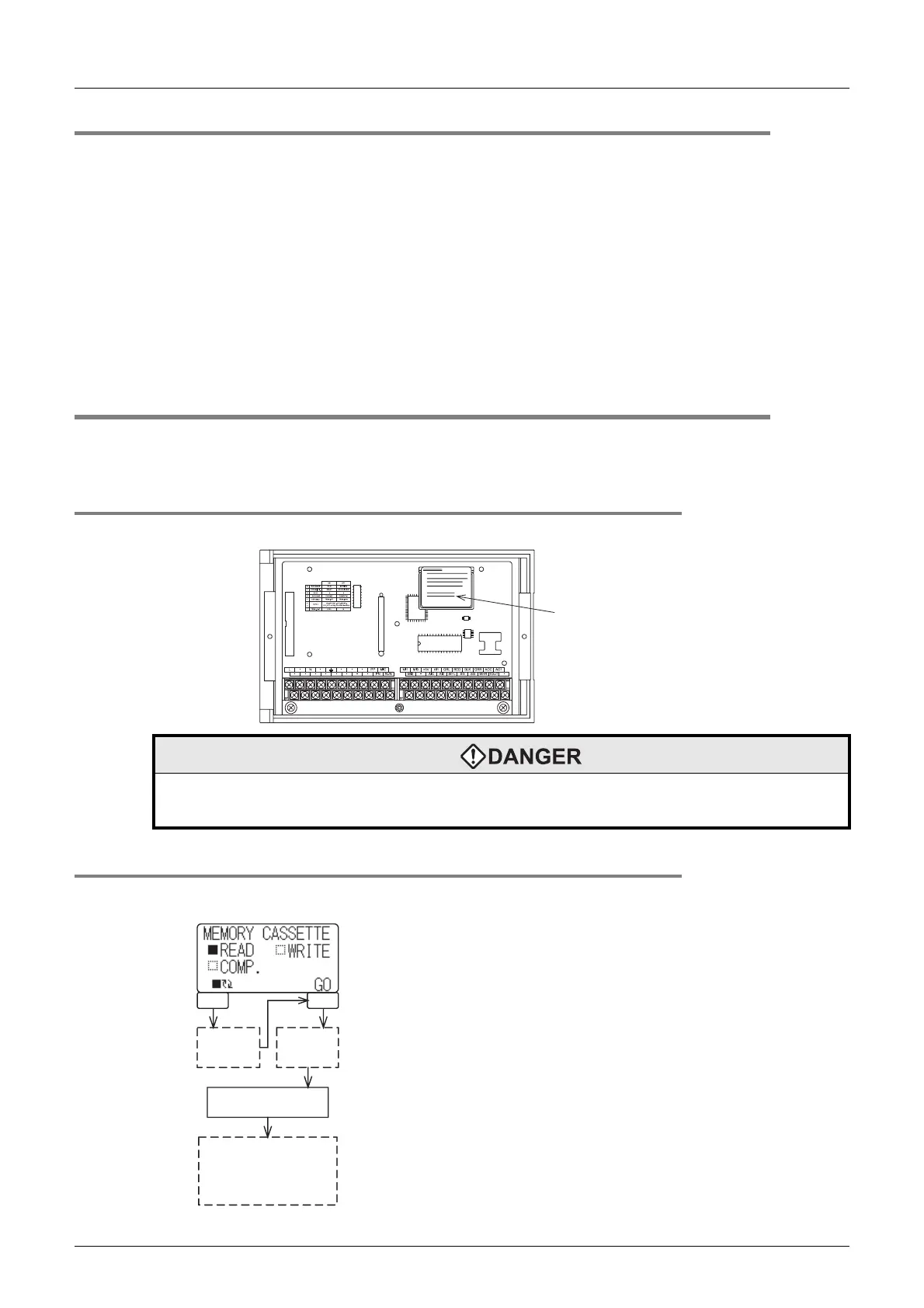

• Place the FX-EEPROM-4 or FX-EEPROM-8 memory cassette in the position shown in the following figure.
8.3.2 How to write, read, and compare data
[1] Set the memory cassette, and then turn ON the power to enter the
memory cassette operation mode.
[2] Press the [F1] function key to switch the operation type, and then
determine the operation type with the display of [].
• READ - - - - Reads out the data from the memory cassette to the
tension controller.
• WRITE - - - Writes the set data of the tension controller in the
memory cassette.
• COMP. - - -Compares the data of the tension controller with the
data stored in the memory cassette.
[3] Press the [GO] key to perform the specified operation.
[4] Turn OFF the power, and then remove the memory cassette.
• Before removing or installing the memory cassette, be sure to externally cut OFF the power to all the
phases. If power to all the phases are not cut OFF, you may receive an electric shock, or the product
may be seriously damaged.
Memory cassette
Memory cassette
operation screen
Select the
operation
type.
Execute
operation.
F1 F4
After turning OFF the
power, remove the
memory cassette.
Then, turn ON the
power.
Operation completion
screen
