8.6 Status of the AUTO and MANUAL indicator LEDs
8. Other Functions
42

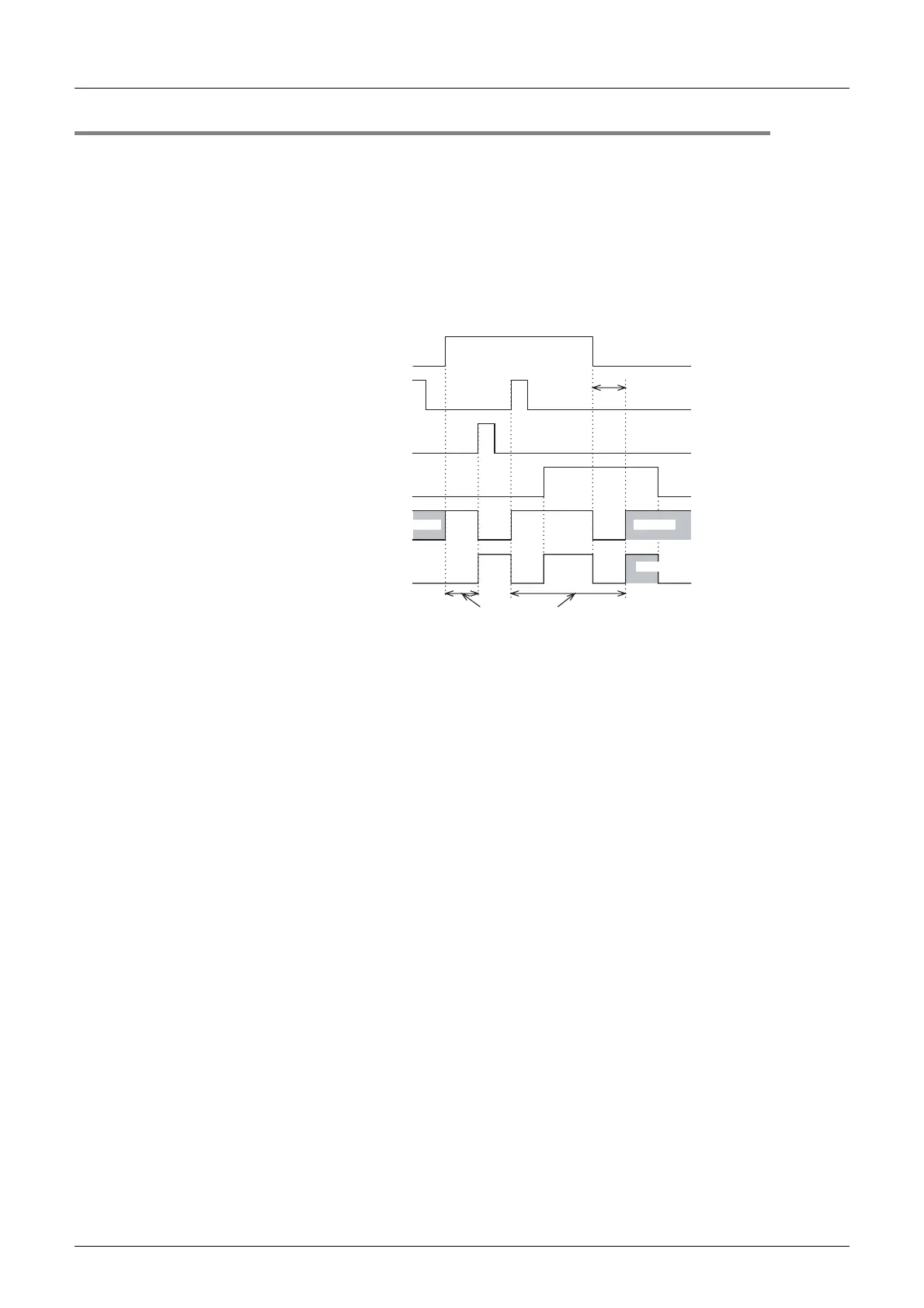

8.6 Status of the AUTO and MANUAL indicator LEDs
1) AUTO indicator lamp(11)
• This LED will light in the automatic control mode. However, even in the automatic control mode,
when the stop timer is activated, this LED will go out.
• This LED will flash when the [RUN] input signal is turned OFF.
2) MANUAL indicator lamp(10)
• This LED will light in the manual control mode or manual output 1 or 2 is set by the external contact
signal. However, even in this condition, when the [RUN] input signal is turned OFF, this LED will
flash.
• This LED will extinguish when the stop timer is activated.
Lights
Lights
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Stop timer
Automatic control
Flashes
Lights
Lights
Goes
out
Goes
out
Goes
out
Goes
out
Goes out
Flashes
Flashes
[RUN] signal
AUTO selector key(12)
MANUAL selector key(13)
Manual output 1 signal
or
Manual output 2 signal
AUTO indicator
LED(11)
MANUAL indicator
LED(10)
