7. APPLICATION INSTRUCTIONS
7 − 50
MELSEC-A

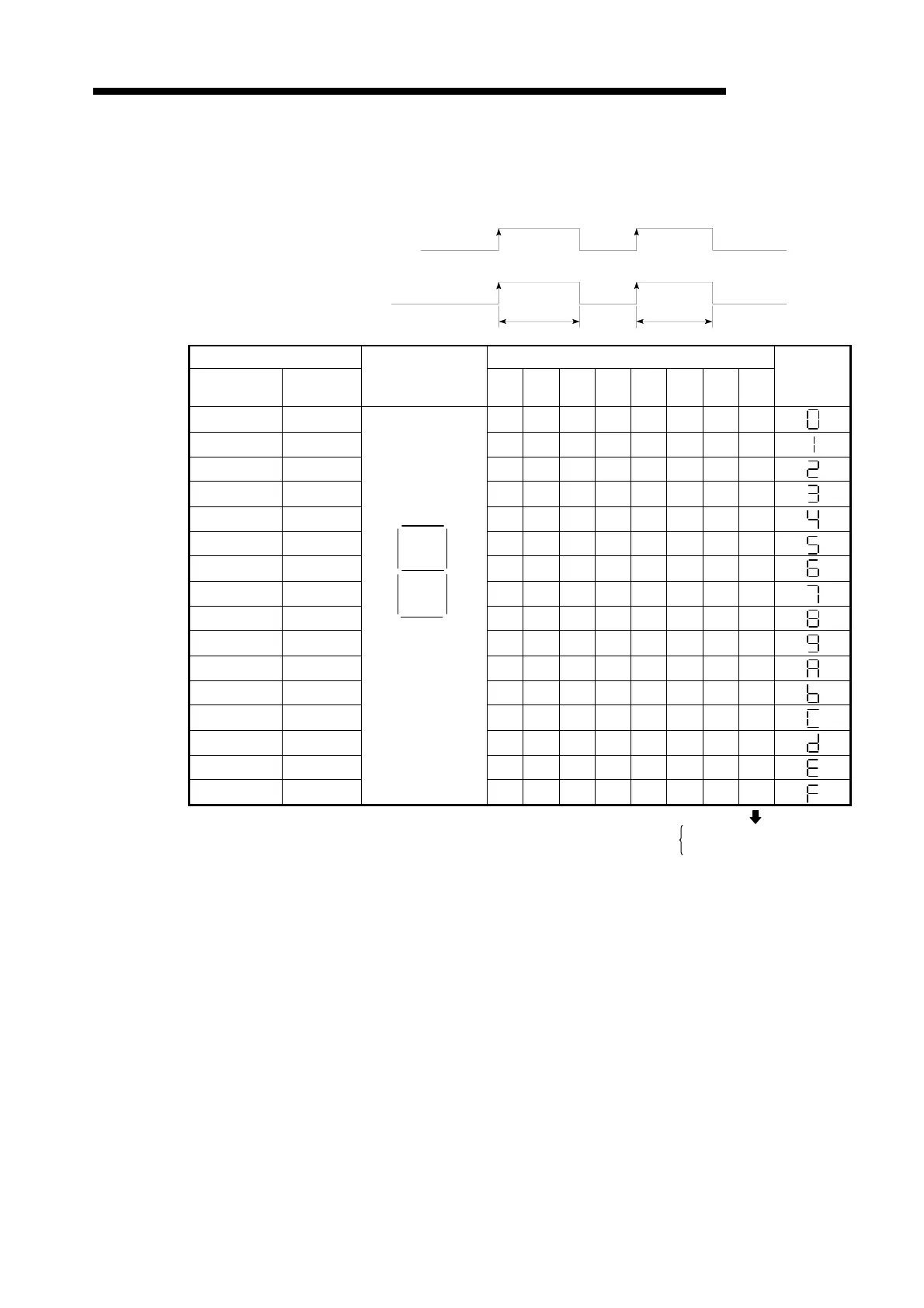

(4) For the seven-segment display data, refer to the below.
Execution Conditions
(S) (D)
Hexadecimal
number
Bit pattern
Configuration of
7-segment
B7 B6 B5 B4 B3 B2 B1 B0
Displayed
Data
0 0000 0 0 1 1 1 1 1 1
1 0001 0 0 0 0 0 1 1 0
2 0010 0 1 0 1 1 0 1 1
3 0011 0 1 0 0 1 1 1 1
4 0100 0 1 1 0 0 1 1 0
5 0101 0 1 1 0 1 1 0 1
6 0110 0 1 1 1 1 1 0 1
7 0111 0 0 1 0 0 1 1 1
8 1000 0 1 1 1 1 1 1 1
9 1001 0 1 1 0 1 1 1 1
A 1010 0 1 1 1 0 1 1 1
B 1011 0 1 1 1 1 1 0 0
C 1100 0 0 1 1 1 0 0 1
D 1101 0 1 0 1 1 1 1 0
E 1110 0 1 1 1 1 0 0 1
F 1111 0 1 1 1 0 0 0 1
OFF
ON
Executed
per scan
Executed
per scan
Decode
command
SEG
B0
B6
B3
B5 B1
B4 B2
Head of bit device
The lowest bit of word device
