7. APPLICATION INSTRUCTIONS
7 − 51
MELSEC-A

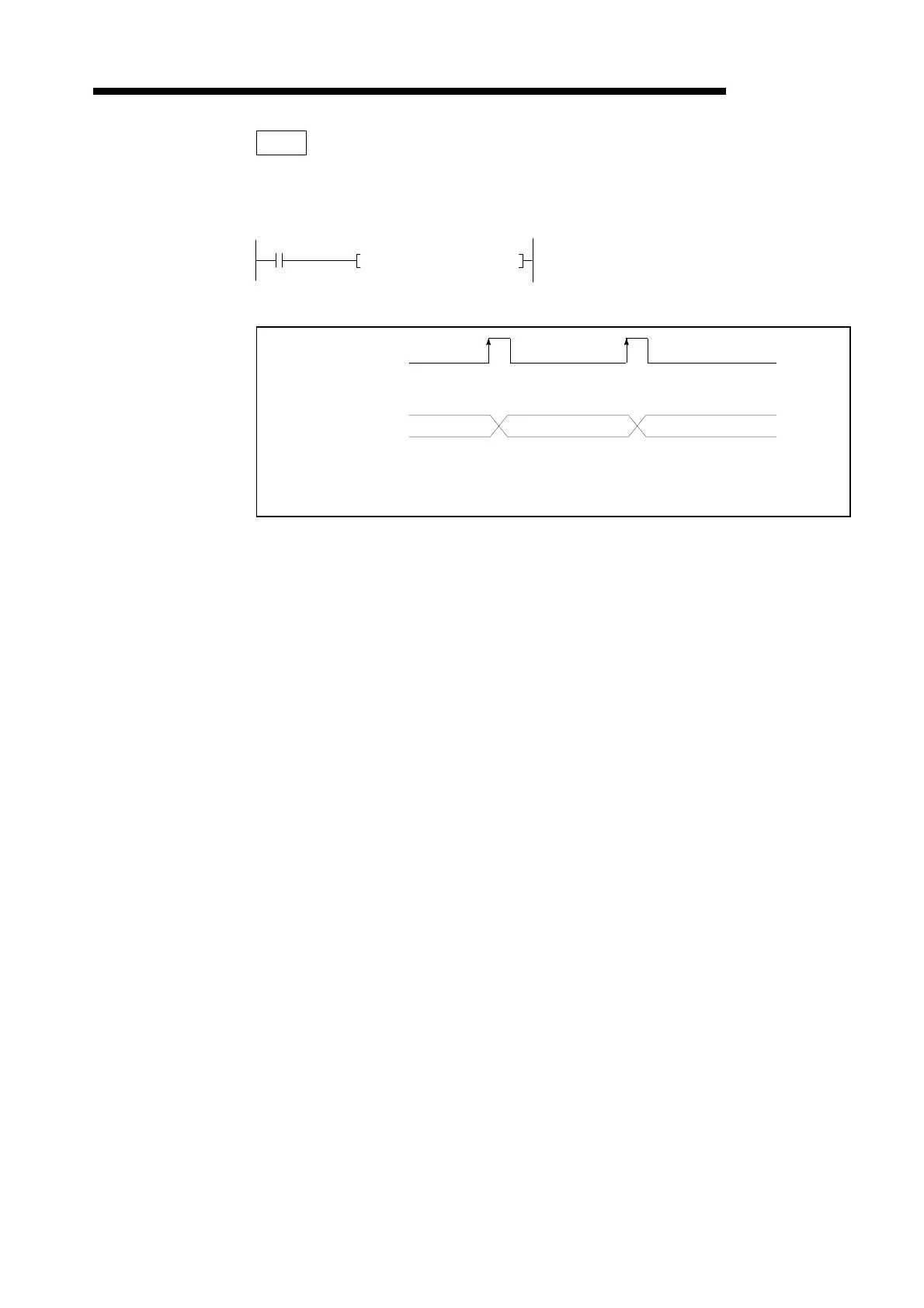

Program Example SEG
Program which converts the data of XC to F to seven-segment display data and
sends the display data to Y38 to 3F when X0 turns on.
X0
Y38 to 3F
*Y38 to 3F do not change until the next data is output.
• Coding
0 LD X000
1 SEG K1X00C K2Y038
8 END
X000
0
K1 K2
SEG X00C Y038
