5. SEQUENCE INSTRUCTIONS
5 − 12
MELSEC-A
Program Examples MPS , MRD , MPP

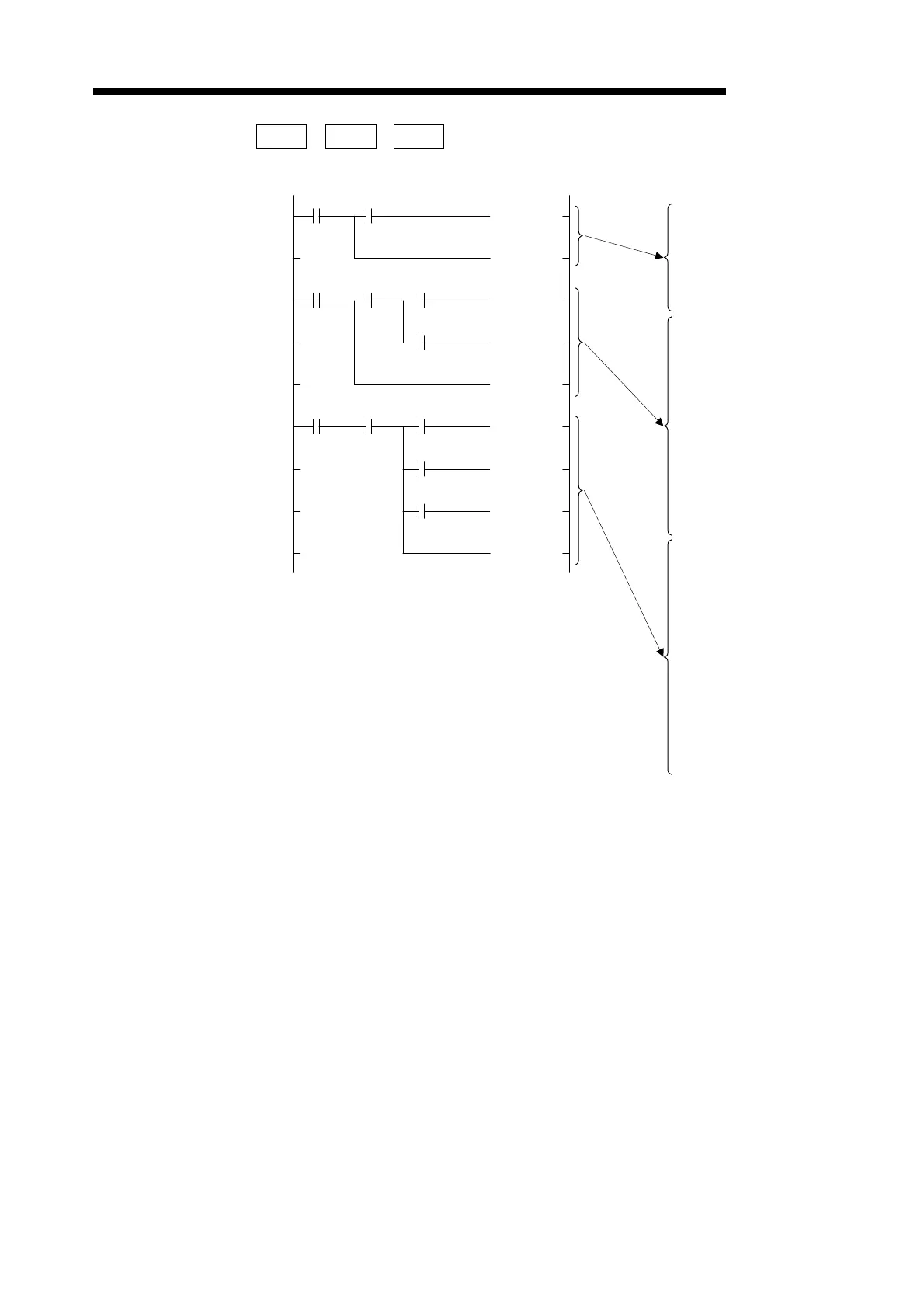

(1) Program which uses MPS, MRD, and MPP.
• Coding
0 LD X01C
1 MPS
2 AND M8
3 OUT Y030
4 MPP
5 OUT Y031
6 LD X01D
7 MPS
8 AND M9
9 MPS
10 AND M68
11 OUT Y032
12 MPP
13 AND T0
14 OUT Y033
15 MPP
16 OUT Y034
17 LD X01E
18 AND M81
19 MPS
20 AND M96
21 OUT Y035
22 MRD
23 AND M97
24 OUT Y036
25 MRD
26 AND M98
27 OUT Y037
28 MPP
29 OUT Y038
30 END
()
(
)
()
()
()
(
)
()
()
(
)
0
X01C M8
X01D M68M9
Y030
Y032
Y031
T0
Y033
Y035
Y034
Y036
Y038
Y037
X01E M96M81
M97
M98
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(1)
(2)
(3) (4)
(6)
(5)
(7)
(8)
(9)
(10)
6
17
