5. SEQUENCE INSTRUCTIONS
5 − 13
MELSEC-A
(2) Printing example by use of MPS and MPP instructions.

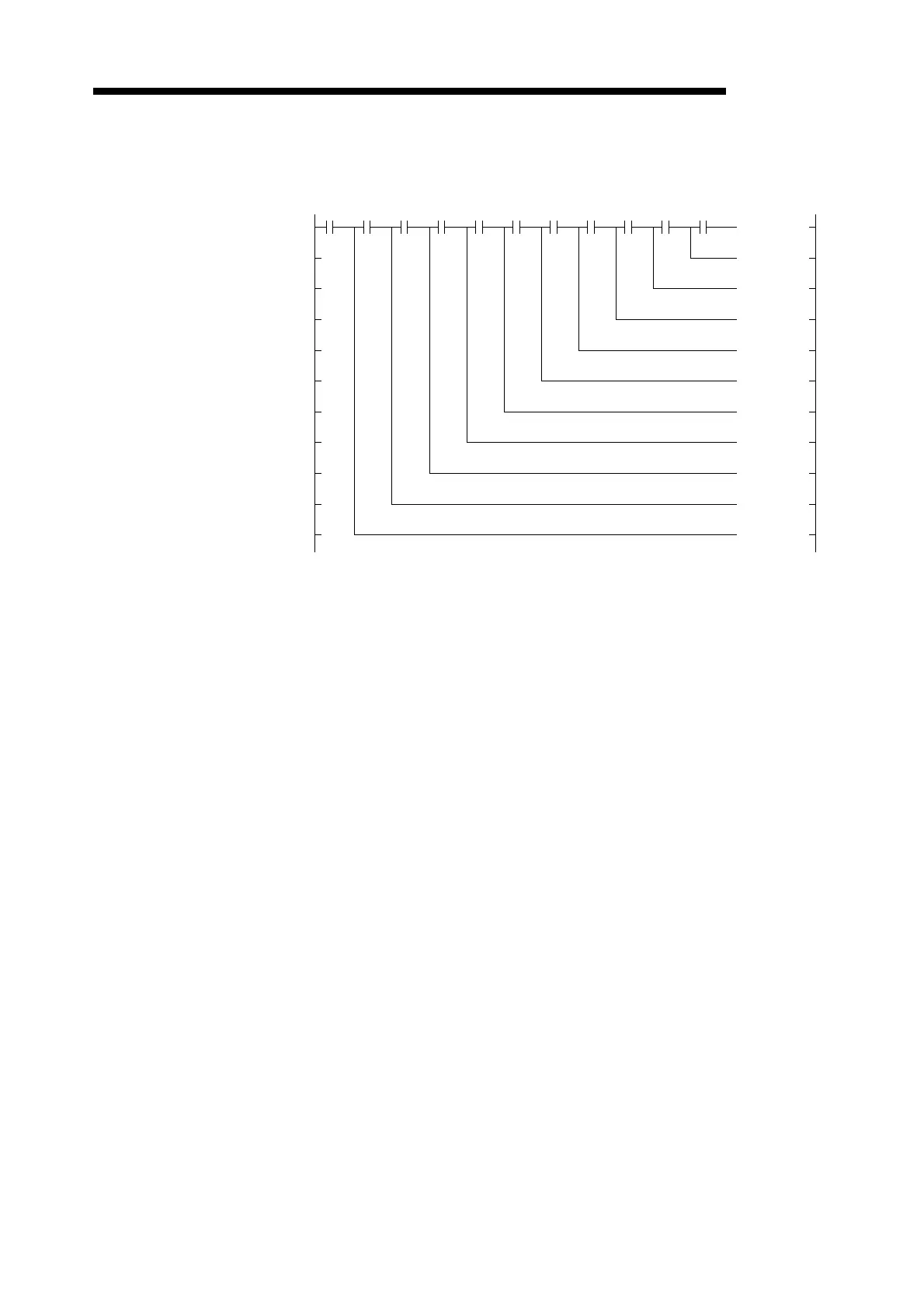

• Circuit printing
• List printing
(
)
(
)
(
)
(
)
()
()
()
()
()
()
()
0
X000 X001 X002 X004X003
Y040
Y042
Y041
Y043
Y045
Y044
Y046
Y048
Y047
Y049
Y04A
X005 X006 X007 X009 X008 X00A
CIRCUIT END
0 LD X000
1 MPS
2 AND X001
3 MPS
4 AND X002
5 MPS
6 AND X003
7 MPS
8 AND X004
9 MPS
10 AND X005
11 MPS
12 AND X006
13 MPS
14 AND X007
15 MPS
16 AND X008
17 MPS
18 AND X009
19 MPS
20 AND X00A
21 OUT Y040
22 MPP
23 OUT Y041
24 MPP
25 OUT Y042
26 MPP
27 OUT Y043
28 MPP
29 OUT Y044
30 MPP
31 OUT Y045
32 MPP
33 OUT Y046
34 MPP
35 OUT Y047
36 MPP
37 OUT Y048
38 MPP
39 OUT Y049
40 MPP
41 OUT Y04A
42 END
