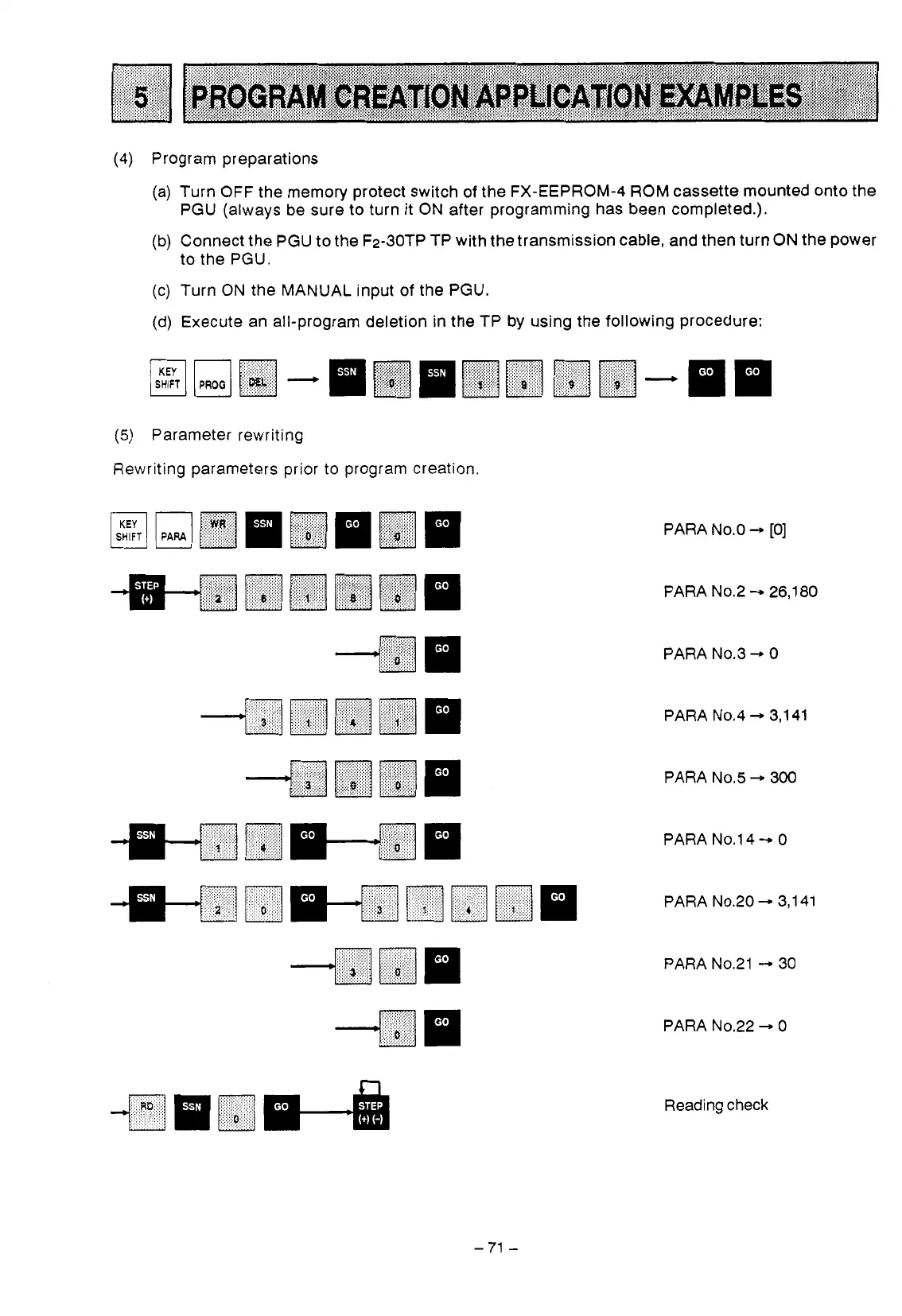

(4) Program preparations
(a)
Turn OFF the memory protect switch
of
the FX-EEPROM-4 ROM cassette mounted onto the
PGU (always be sure to turn it ON after programming has been completed.).
(b)
Connect the PGU to the F2-30TP TP with the transmission cable, and then turn
ON
the Power
to the PGU.
(c)
Turn ON the MANUAL input of the PGU.
(d)
Execute an all-program deletion
in
the TP by using the following procedure:
(5)
Parameter rewriting
Rewriting parameters prior to program creation.
PARA No.0
-
[O]
PARA No.2
-
26,180
PARA N0.3
0
PARA N0.4
-
3,141
PARA No.5
-
300
PARA No.14
-
0
PARA No.20
-
3,141
PARA No.21
-
30
PARA N0.22
-
0
n
Reading check
-
71
-
