5.3
Learning Application Programming
(2)

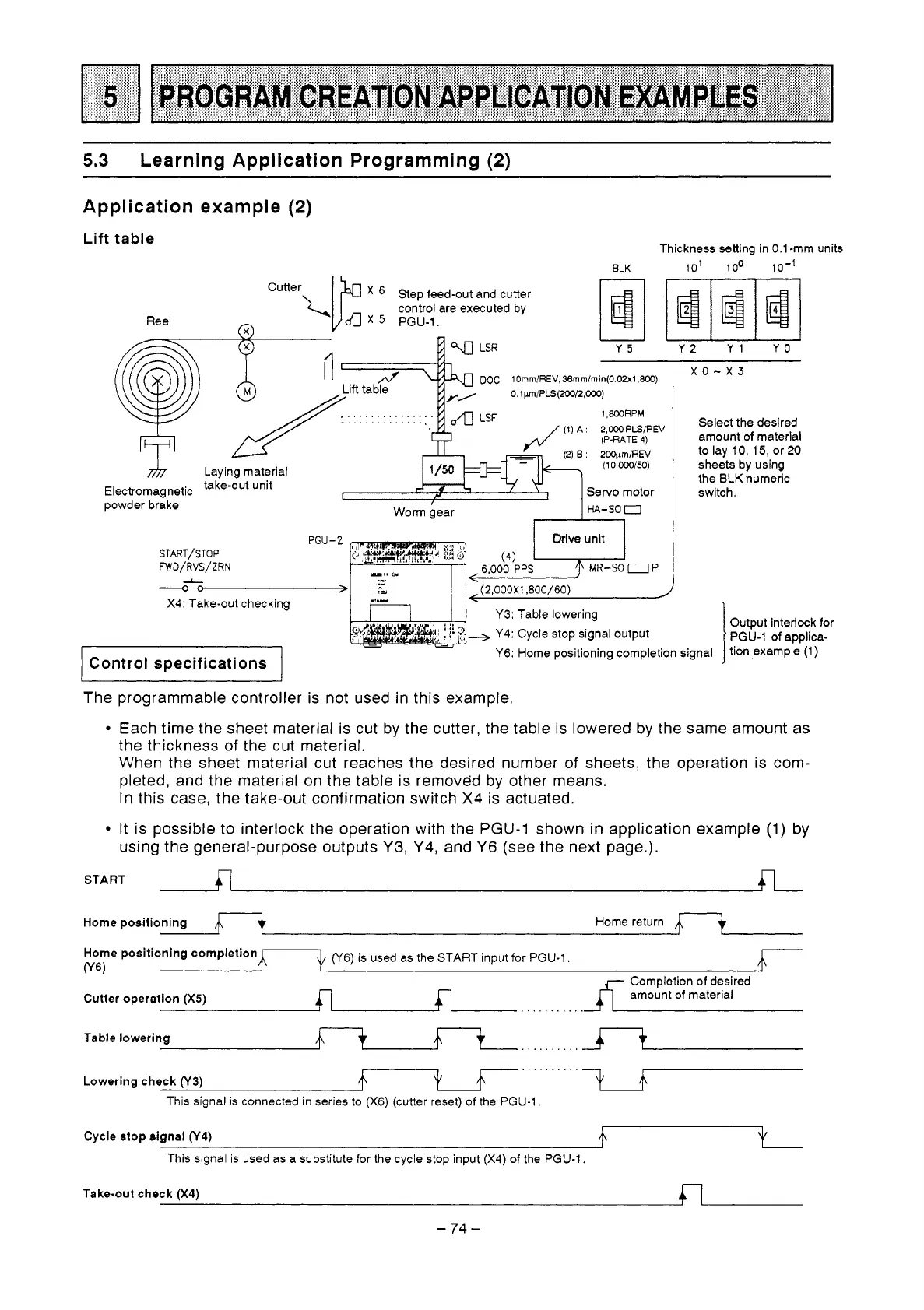

Application example
(2)
Lift table
Reel
m
Electromagnetic
powder brake
Thickness setting in
0.1
-mm units
,i,
,~',~,~-',
Step feed-out and cutter
control are executed by
PGU-1.
Y5
Y2
Y1
YO
-
START/STOP
PND/RVS/ZRN
PGU-2
L
-0
X4: Take-out checking
I
Controt specifications
I
XO-X3
Select the desired
amount of material
to
lay
10,
15,
or
20
sheets
by
using
the
ELK
numeric
switch.
Y3:
Table lowering
-=,
Y4:
Cycle stop signal output
Y6:
Home positioning completion signal
Output interlock for
PGU-1
of applica-
tion example
(1)
I
1
The programmable controller is not used in this example.
Each time the sheet material
is
cut by the cutter, the table is lowered by the same amount as
the thickness
of
the cut material.
When the sheet material cut reaches the desired number
of
sheets, the operation is com-
pleted, and the material on the table is removed by other means.
In this case, the take-out confirmation switch
X4
is actuated.
It is possible to interlock the operation with the PGU-1 shown in application example
(1)
by
using the general-purpose outputs
Y3,
Y4,
and
Y6
(see the next page.).
START
Home positioning
Home positioning completion
(Ye)
4
t
Home return
t
(Y6)
is
used as the START input for
PGU-1.
4
Completion of desired
Cutter operation
(X5)
amount of material
...........
Table lowering
6
.t
4
..........
L
Lowering check
(Y3)
4
I
r".".''''7
This signal is connected in series
to
(X6) (cutter reset) of the
PGU-1,
Cycle
stop
signal
(Y4)
4
This signal is used as a substitute for the cycle stop input (X4) of the
PGU-1.
L
Take-out check
o(4)
