11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 3

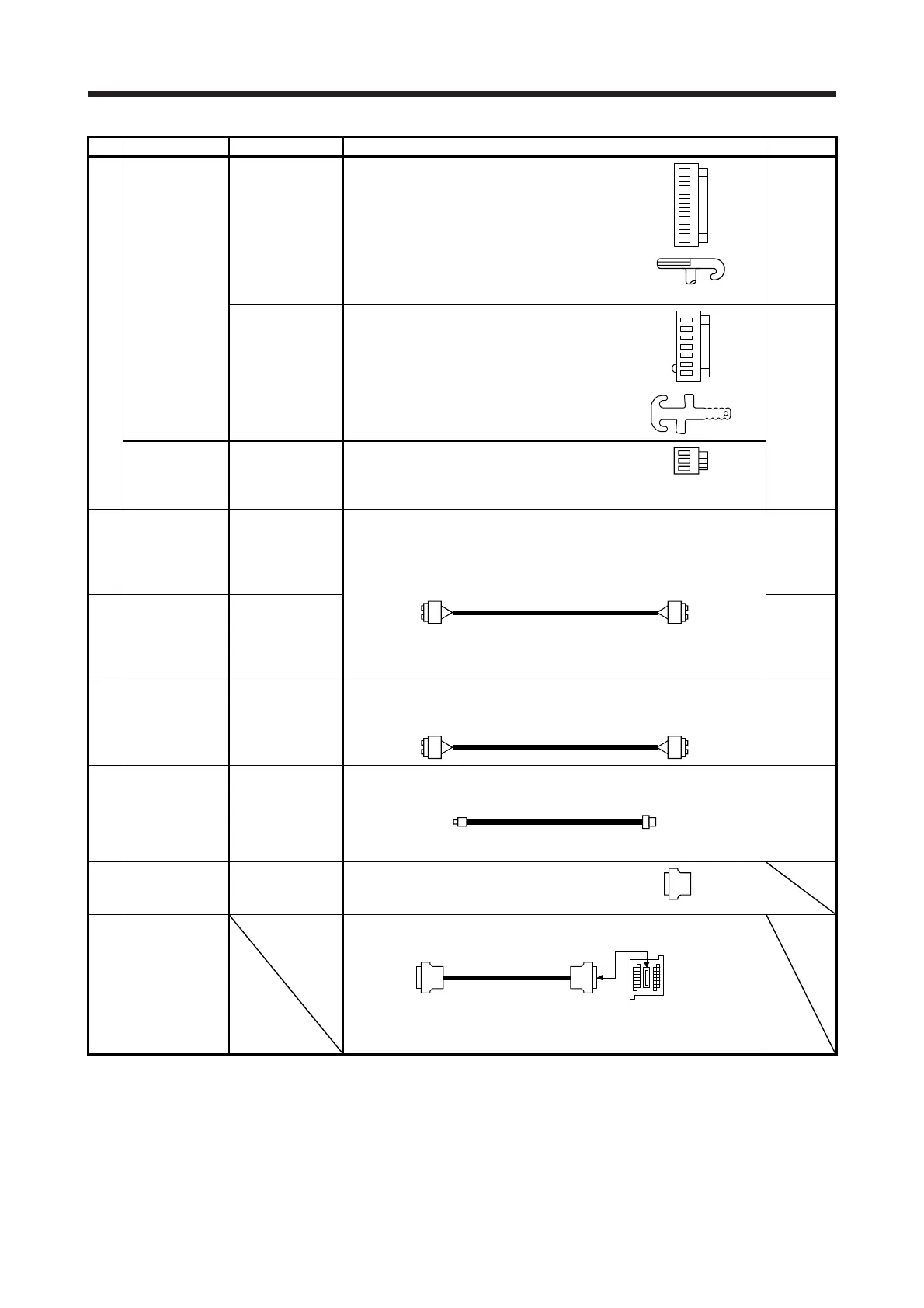

No. Product name Model Description Application
1) Servo amplifier
CNP1 power
connector
MR-JECNP1-01 Connector for CNP1: 09JFAT-SAXGDK-H5.0
(JST)
Applicable wire size: AWG 18 to 14
Insulator OD: to 3.9 mm
Supplied
with servo
amplifiers
of 1 kW or
less
Open tool: J-FAT-OT (N)
or
J-FAT-OT (JST)
MR-JECNP1-02 Connector for CNP1: 06(7-4)JFAT-SAXGFK-XL
(JST)
Applicable wire size: AWG 16 to 10
Insulator OD: to 4.7 mm
Supplied
with servo
amplifiers
of 2 kW
and 3 kW
Open tool: J-FAT-OT-EXL (JST)
Servo amplifier
CNP2 power
connector
MR-JECNP2-02 Connector for CNP2: 03JFAT-SAXGFK-XL
(JST)
Applicable wire size: AWG 16 to 10
Insulator OD: to 4.7 mm
2) SSCNET III
cable
MR-J3BUS_M
Cable length:
0.15 m to 3 m
(Refer to section
11.1.2.)
Connector: PF-2D103
(JAE)
Connector: PF-2D103
(JAE)
Standard
cord
inside
cabinet
3) SSCNET III
cable
MR-J3BUS_M-A
Cable length:
5 m to 20 m
(Refer to section
11.1.2.)
Standard
cable
outside
cabinet
4) SSCNET III
cable
MR-J3BUS_M-B
Cable length:
30 m to 50 m
(Refer to section
11.1.2.)
Connector: CF-2D103-S
(JAE)
Connector: CF-2D103-S
(JAE)
Long
distance
cable
5) USB cable MR-J3USBCBL3M
Cable length: 3 m
CN5 connector
mini-B connector (5 pins)
Personal computer connector
A connector
For
connection
with PC-AT
compatible
personal
computer
6) Connector set MR-CCN1 Connector: 10120-3000PE
Shell kit: 10320-52F0-008
(3M or equivalent)
7) Junction terminal
block
(recommended)
MR-J2HBUS_M
PS7DW-20V14B-F
(Toho Technology)
The junction terminal block PS7DW-20V14B-F is not an option. To use the
junction terminal block, option MR-J2HBUS_M is necessary. Refer to
section 11.3 for details.
To Next Page
