11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 18

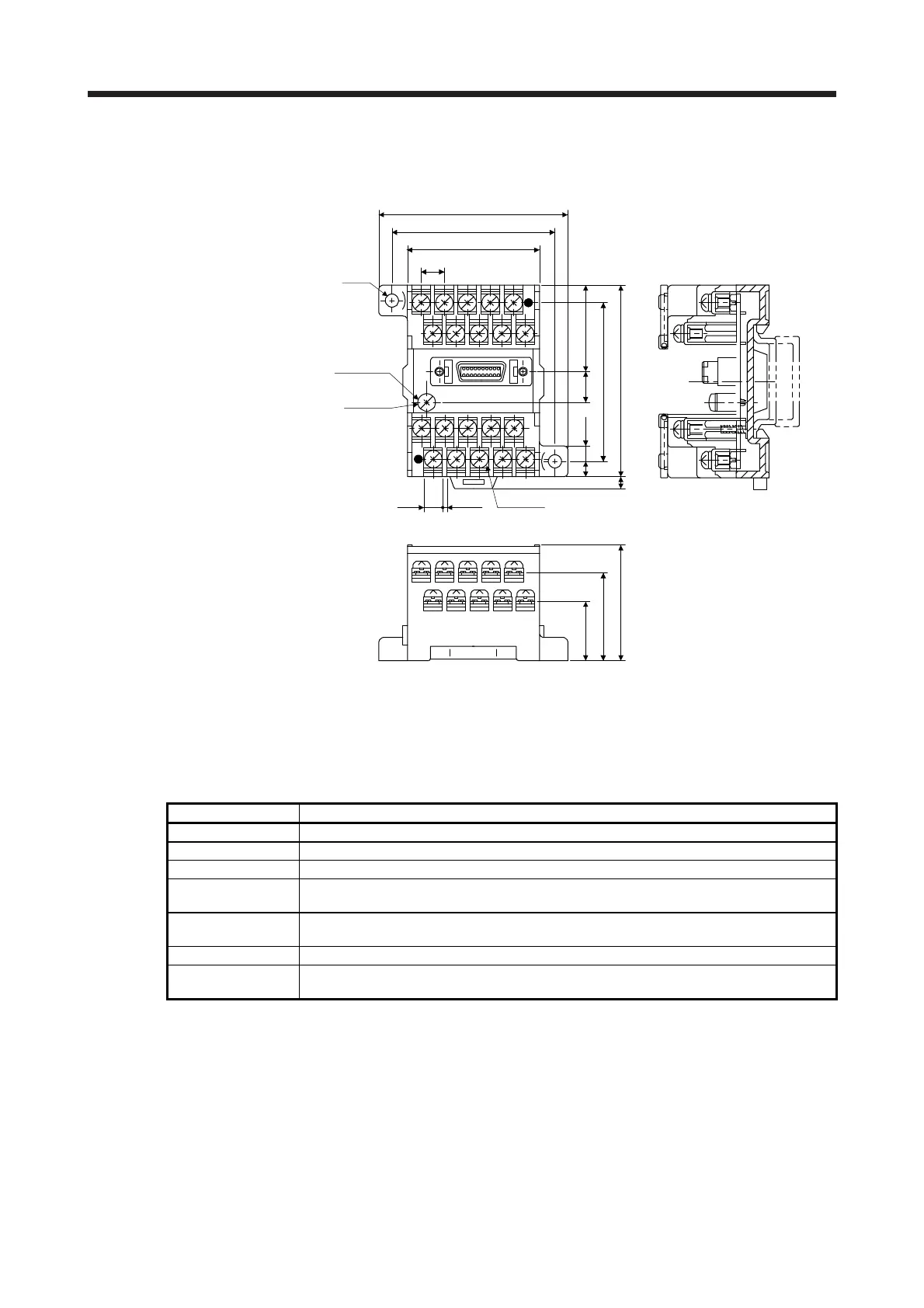

(3) Dimensions of junction terminal block
[Unit: mm]
M3 × 6L
M3 × 5L
36.5
27.8
18.8
7.62
44.11
54
63
φ4.5
4.5
5
4
60
50
9.3 27
TB.E (φ6)
1.426.2
11.4 MR Configurator2
MR Configurator2 (SW1DNC-MRC2-_) uses the communication function of the servo amplifier to perform
parameter setting changes, graph display, test operation, etc. on a personal computer.
11.4.1 Specifications
Item Description
Project Create/read/save/delete project, system setting, and print
Parameter Parameter setting
Monitor Display all, I/O monitor, graph, and ABS data display
Diagnosis
Alarm display, alarm onset data, drive recorder, no motor rotation, system configuration, life
diagnosis, machine diagnosis
Test operation
JOG operation, positioning operation, motor-less operation, DO forced output, program
operation, test mode information
Adjustment One-touch tuning, tuning, and machine analyzer
Others
Servo assistant, parameter setting range update, machine unit conversion setting, help display,
connecting to Mitsubishi Electric FA site
