Maintenance
8-31
8

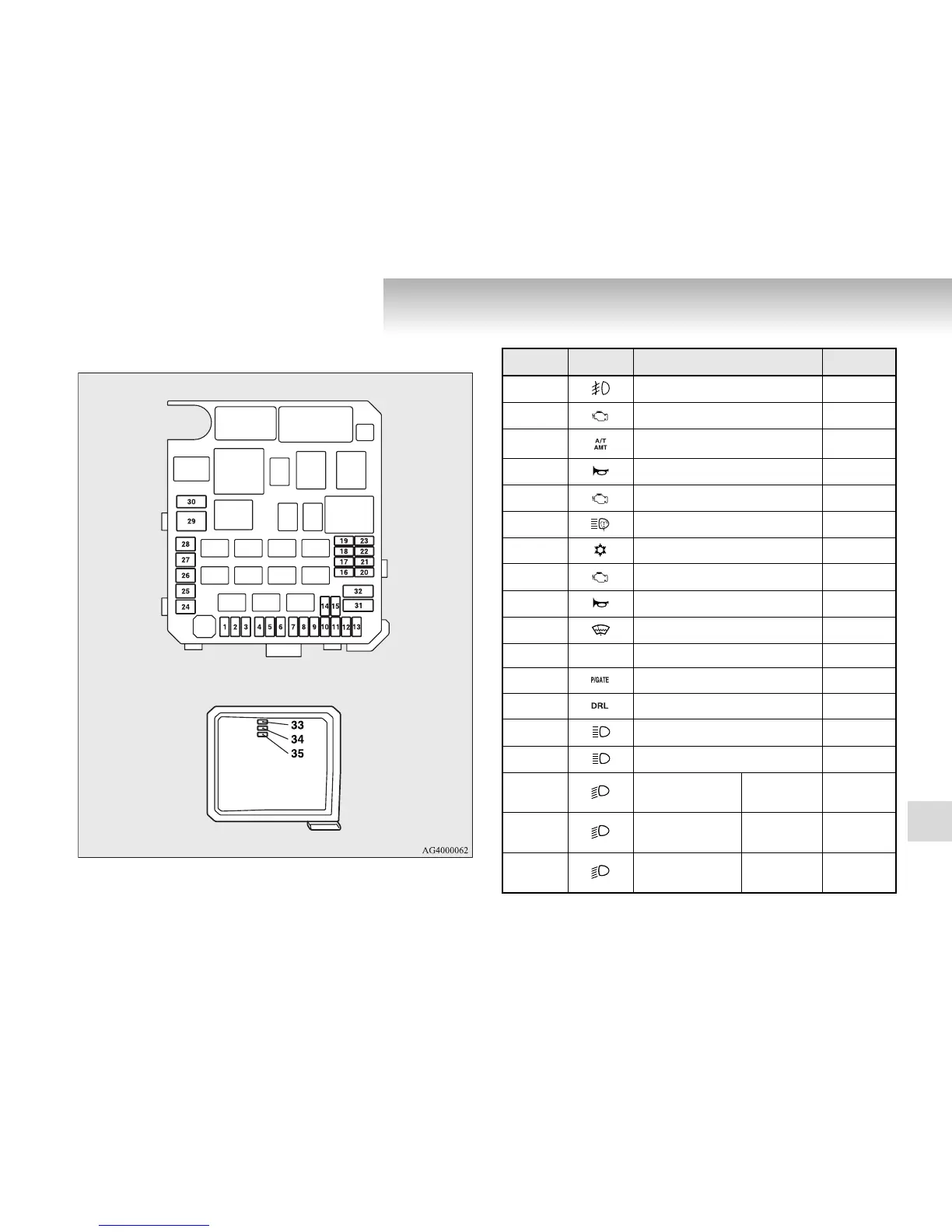

Engine compartment fuse location table
Engine compartment fuse location
Behind of the fuse block cover
No. Symbol Electrical system Capacities
1 Front fog lamps 15 A
2 Engine 7.5 A
3 Automatic transmission 20 A
4 Horn 10 A
5 Alternator 7.5 A
6 Headlamp washer 20 A
7 Air conditioning 10 A
8 ETV 15 A
9 Security horn 20 A
10 Wiper deicer 15 A
11 — — —
12 Electric tailgate 30 A
13 Daytime running light 10 A
14 Headlamp high beam (left) 10 A
15 Headlamp high beam (right) 10 A
16
Headlamp low
beam (left)
Discharge 20 A
17
Headlamp low
beam (right)
Discharge 20 A
18
Headlamp low
beam (left)
Halogen 10 A
