8-30
Maintenance
8
*: Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
The table above shows the main equipment corresponding
to each fuse.

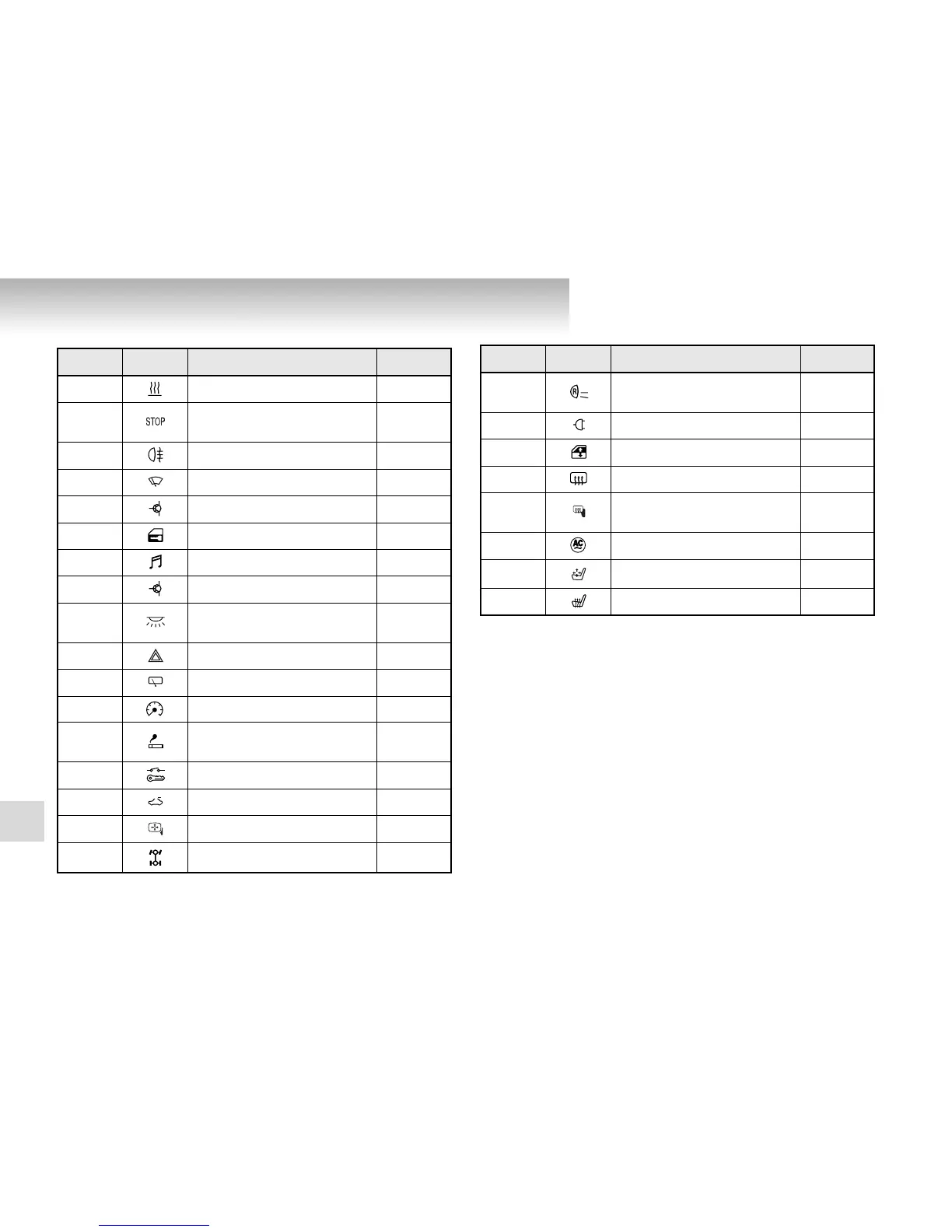

No. Symbol Electrical system Capacities
1 Heater 30 A*
2
Stop lamps
(Brake lamps)
15 A
3 Rear fog lamp 10 A
4 Windscreen wipers 30 A
5 Option 10 A
6 Door lock 20 A
7 Radio 15 A
8 Control unit relay 7.5 A
9
Interior lamps
(Room lamps)
15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Instruments 7.5 A
13
Cigarette lighter/
Accessory socket
15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rear-view mirrors 10 A
17 4-wheel drive system 10 A
18
Reversing lamps
(Backup lamps)
7.5 A
19 Accessory socket 15 A
20 Electric window control 30 A*
21 Rear window demister 30 A*
22
Heated door mirror
Outside rear-view mirrors
7.5 A
23 AC power supply 15 A
24 Power seats 25 (20) A
25 Heated seat 30 A
No. Symbol Electrical system Capacities
