Indicator and warning light package (multi information display - Type 2)
5-214 Features and controls
N00519801918

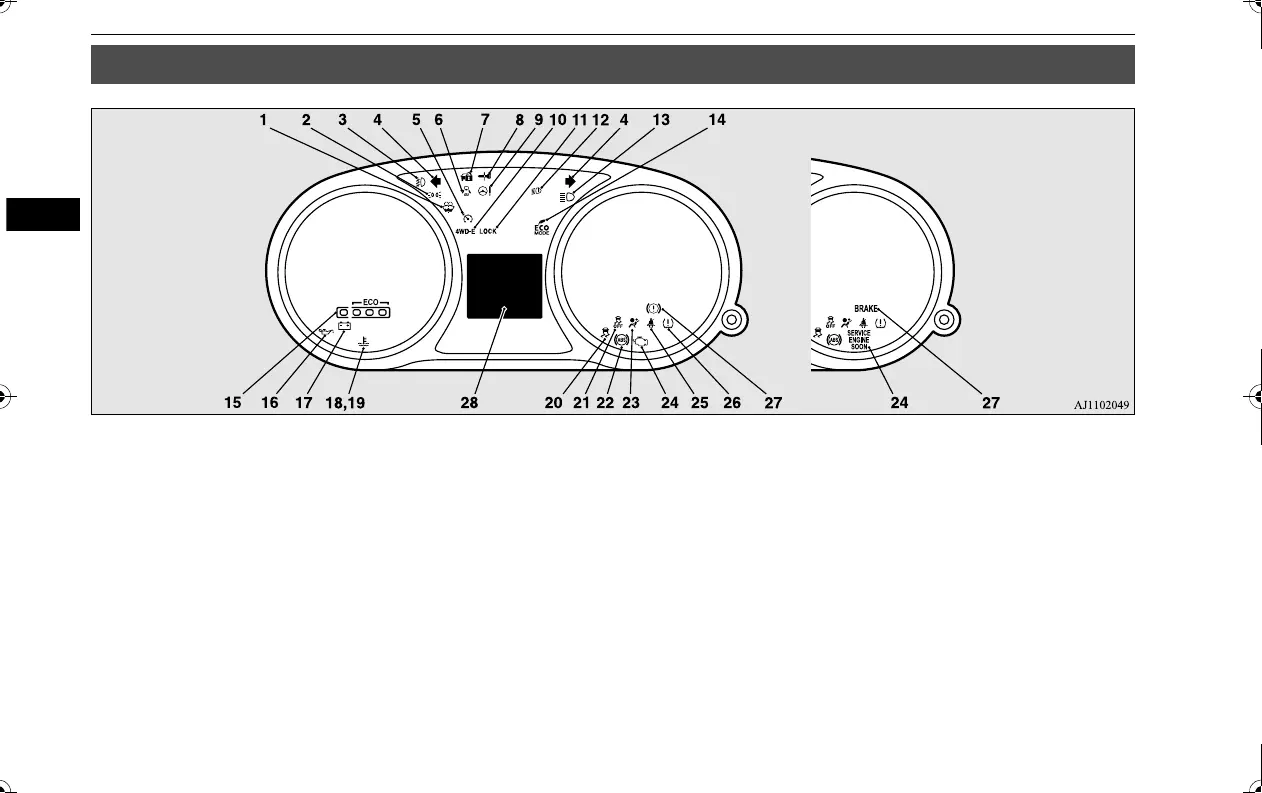

Indicator and warning light package (multi information display - Type 2)
1- Washer fluid level warning light
P.5-219
2- Position indicator P. 5-215
3- Front fog light indicator (if so
equipped) P. 5-215
4- Turn signal indicators/hazard warning
lights P. 5-215
5- Cruise control indicator P. 5-102
6- Door-ajar warning light P. 5-218
7- For details, refer to “Steering wheel
lock” on page 5-24. (if so equipped)
8- For details, refer to “Warning activa-
tion” on page 5-20. (if so equipped)
9- Electric power steering system warning
light P.5-99
10- 4WD ECO mode indicator (if so
equipped) P.5-82
11- 4WD LOCK mode indicator (if so
equipped) P.5-82
12- LED headlight warning light (if so
equipped) P.5-223
13- High beam indicator P. 5-215
14- ECO mode indicator P.5-231
15- ECO Drive Assist P. 5-215
16- Oil pressure warning light P. 5-218
17- Charging system warning light
P. 5-217
18- High coolant temperature warning light
(red) P. 5-218
19- Low coolant temperature indicator
(blue) P. 5-215
20- Active stability control (ASC) indicator
P. 5-101
21- Active stability control (ASC) OFF
indicator P. 5-101
22- Anti-lock braking system warning light
P. 5 - 98
23- Supplemental Restraint System (SRS)
warning light P. 4-40
